Description
The AGX Series: Regenerative AC & DC Power Source is a cutting-edge 3-in-1 test solution, combining a fully programmable AC/DC power source, current source, and electronic load with AC, DC, and AC+DC output capabilities. Designed for high-performance and intelligent testing, this system offers an extended frequency range up to 3000Hz and four-quadrant operation for sourcing and sinking AC/DC power.
With exceptionally high current output, regenerative power capabilities, and full galvanic isolation, the AGX Series is the ideal choice for aerospace, EV charging, smart grid simulation, and compliance testing.
Key Features of AGX Series Regenerative AC & DC Power Source:
- All-in-One Test Solution – Functions as an AC & DC Power Source, Grid Simulator, and Electronic Load
- 4-Quadrant Regenerative Operation – Allows energy recovery, reducing power costs and heat dissipation
- High Power Density – Available in 6kVA/kW to 21kVA/kW in a 4U chassis, expandable up to 168kVA/kW in a cabinet
- AC, DC, and AC+DC Output – Single, split, and three-phase modes with multi-channel configurations
- Extended Frequency Range – Standard 15Hz-1200Hz, with an optional upgrade to 1Hz-3000Hz
- Constant Power Voltage Range – Prevents interruptions when switching voltage ranges
- Advanced Load Simulation – Supports linear, non-linear, inductive, and capacitive loads
- Exceptional Current Capability – Delivers 20% more current than traditional units at low voltages
- Simultaneous AC & DC Operation – Enables independent testing per phase/channel
- SmartSource Suite Remote Control – Offers intuitive web-based monitoring & automation
- Galvanic Isolation – Ensures full isolation between facility input and output, reducing safety risks
- Regenerative Power Efficiency – Returns >90% of energy back to the grid, minimizing power loss
- Compliance Testing Ready – Supports IEC, MIL-STD, RTCA-DO160, and IEEE 1547.1-2020
Why Choose the AGX Series?
- Unmatched Versatility – Test aerospace systems, EV chargers, energy storage, and renewable energy solutions
- Scalable & Modular – Easily expand with parallel units up to 252kVA/kW
- Future-Proof Performance – Supports next-gen high-frequency applications (up to 3kHz)
- Cost-Effective Energy Efficiency – Regenerative capabilities lower operational costs
- User-Friendly Operation – Web-based control, LCD touch screen, and multiple connectivity options

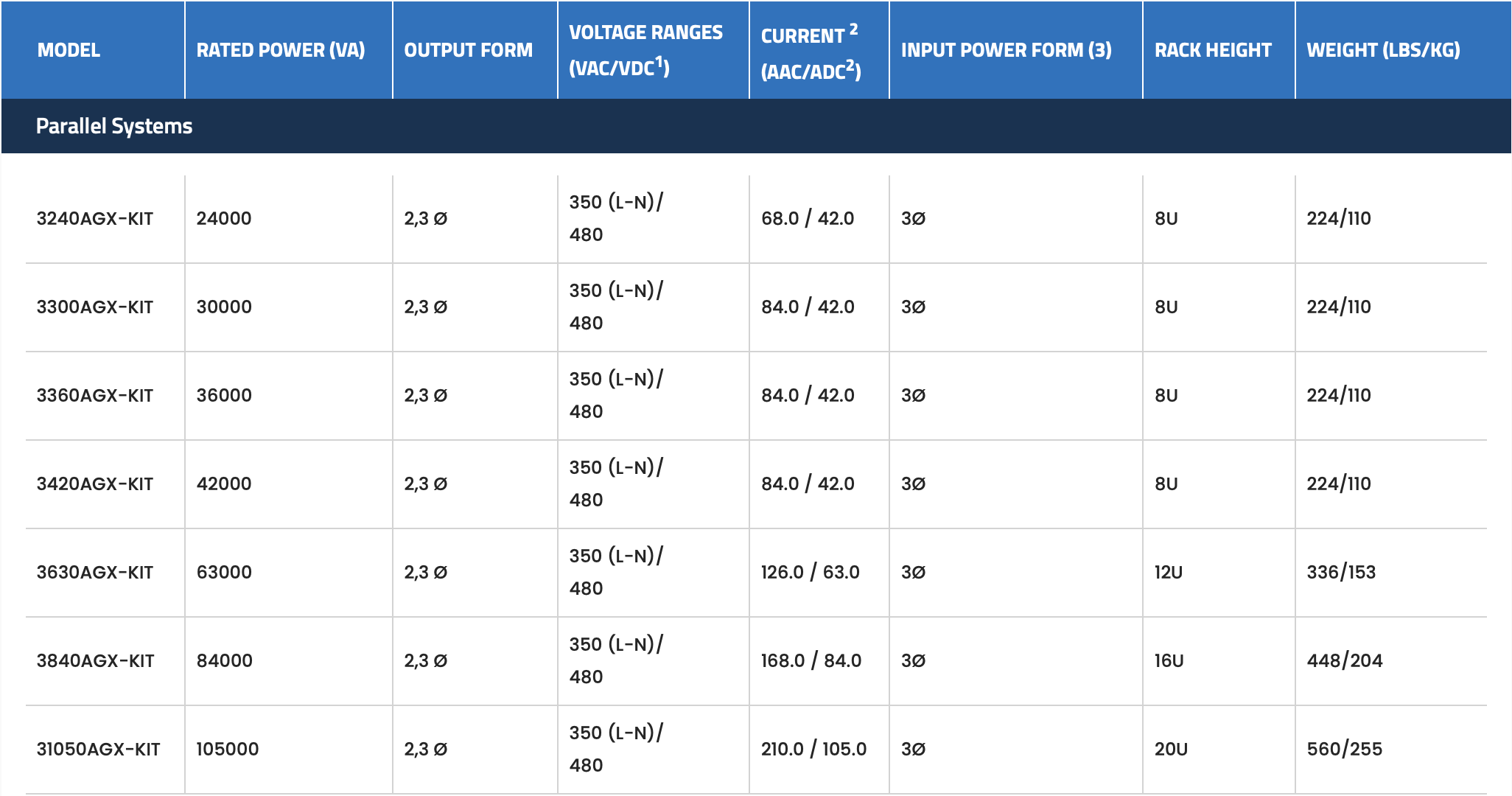

NOTES
- All AGX models have a single voltage range with constant power profile. This eliminates the need for switching between a high and a low voltage range. If desired, a low voltage range can be simulated.
- Maximum current ratings shown are available up to max. power point. Voltage and Current follow constant power profile so higher current at lower voltage and lower current at higher voltage is available.
- Three-phase input: 380 ~ 480 VAC ± 10% input range. All models have active power factor corrected AC inputs. Models above 12kW require 380~480Vac Input service to deliver full power. 208-240Vac models are not available at this time.
- 19 Inch Cabinet not included with parallel system kits. Contact us for integrated cabinet systems.
- Lower-power AGX models can be upgraded to higher power levels using Pacific’s AGX POWER FLEX upgrade program. Contact customer service for details.
Click Here to view more products from Pacific Power Source.
Frequently Asked Questions (FAQs)
1. Can this unit be used for both AC and DC applications?
Yes! The AGX Series supports AC, DC, and AC+DC output modes for maximum flexibility.
2. What power configurations are available?
The AGX supports single-phase, split-phase, three-phase, and multi-channel configurations.
3. How does regenerative power work?
The AGX returns excess energy back to the facility/grid, minimizing heat dissipation and power waste.
4. What is the maximum power output?
– Single chassis: 6kVA/kW to 21kVA/kW
– Parallel systems: Up to 168kVA/kW
– Dual cabinets: Up to 252kVA/kW
5. Does the AGX support compliance testing?
Absolutely! The AGX is ideal for IEC 61000, MIL-STD-704, RTCA DO-160, and more.
6. What makes the AGX different from traditional power sources?
Higher efficiency, broader voltage & frequency range, regenerative load capability, and advanced control options.
7. How can I control the AGX remotely?
Use the SmartSource Suite via LAN, GPIB, USB, or ModBus for real-time test execution and monitoring.
