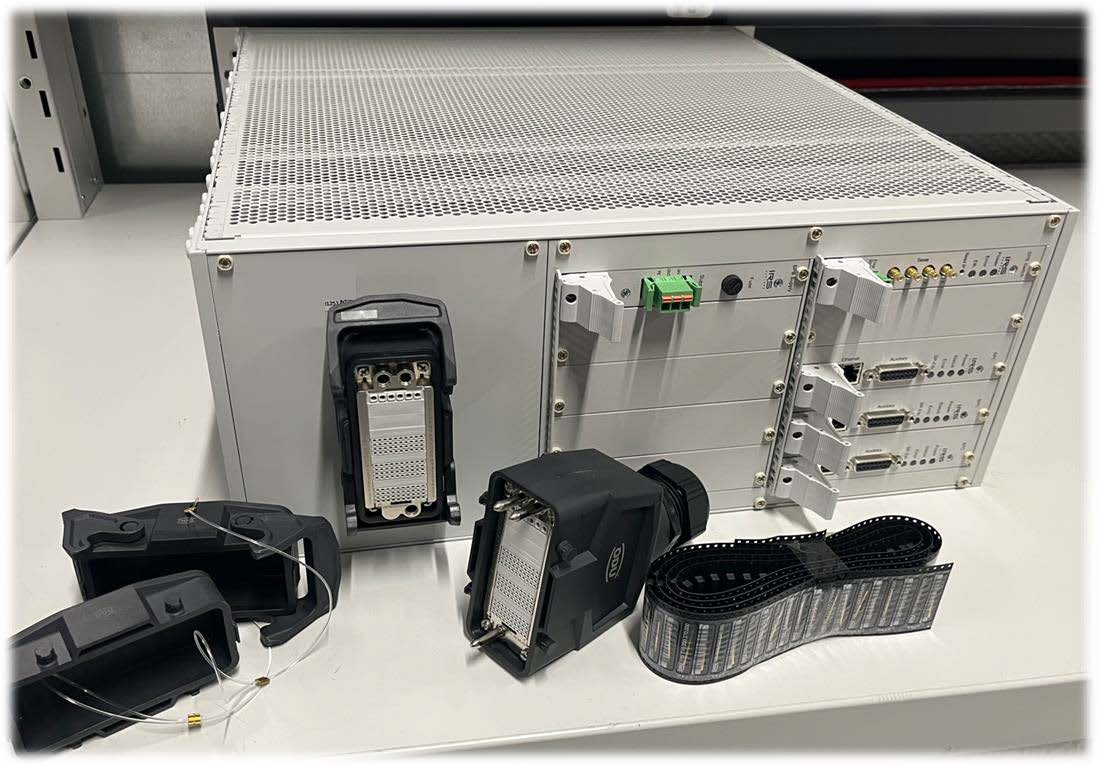

BLS SU 600 Switching Unit for Multi-Channel Testing
The BLS SU 600 Switching Unit delivers unmatched versatility for high-precision switching tasks in demanding environments like automotive, avionics, and power electronics. With its modular architecture and advanced automation, it’s a cornerstone of scalable and efficient test setups.

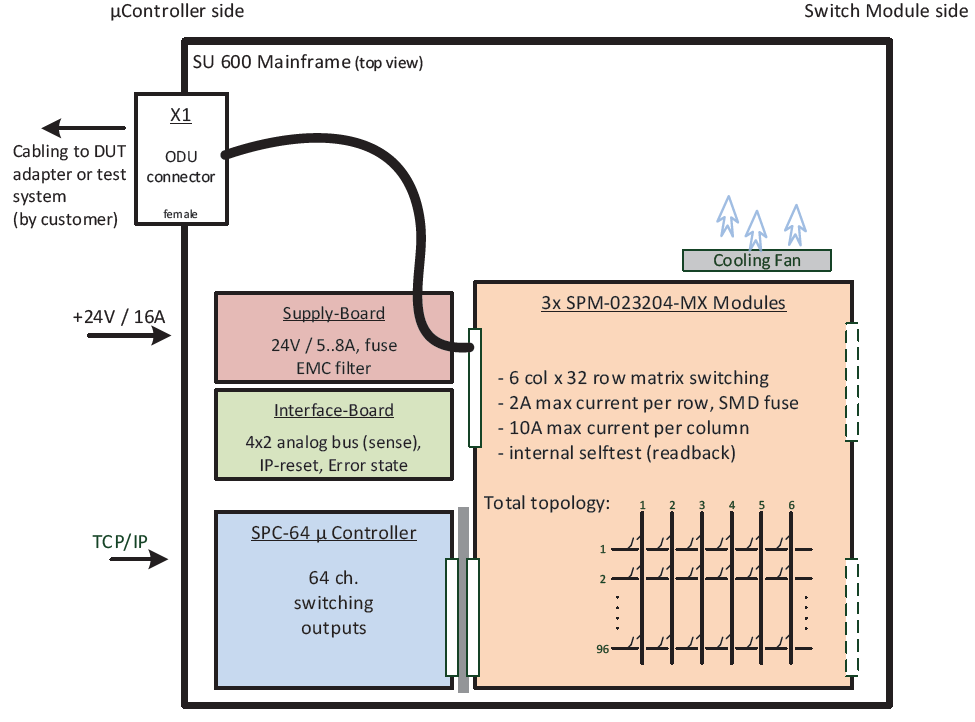

Modular Switching Architecture for Custom Setups

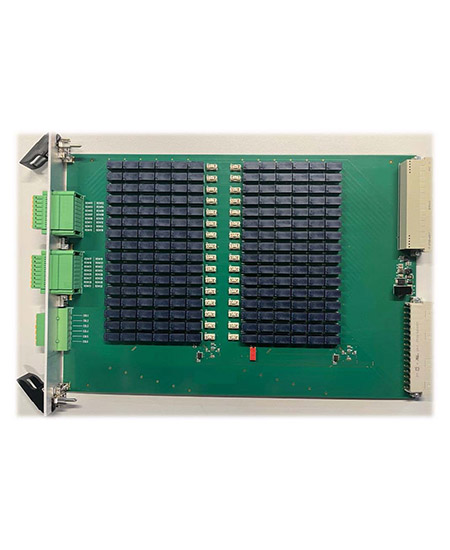

Built on the robust BOLAB SP-400 platform, the SU 600 supports up to 4 plug-in switch cards, allowing you to configure your test environment exactly as needed. Its 6×32 channel topology supports up to 2A per channel, with integrated fusing for circuit protection.
Waveform Generation and Data Acquisition Capabilities
This switching unit isn’t just about signal routing—it also features simultaneous waveform generation and acquisition, making it ideal for simulating imported oscilloscope waveforms or running synchronized test sequences. Two different waveforms can be executed at once, with unlimited waveform size for maximum flexibility.
Intelligent Software Control & Protocol Reporting
The SU 600 comes with support for standard waveform libraries and protocol generation. With built-in DLLs for platforms like LabView, CANoe, C#, C++, ANSI C, and Python, it integrates effortlessly into modern automated test systems.
Matrix Switching Specifications Overview
| Specification | Details |
| Channel Configuration | 6×32 matrix, 2A per channel |
| Supply Voltage | 24V DC (Recommended 5A) |
| Max Power Consumption | Up to 200W |
| Chassis Design | 4HU, 19” rack-mountable |
| Cooling System | Auto fan (Triggers at 40°C) |
| Communication | TCP/IP for remote automation |
| Expansion Option | CU-600 for >128 switching line disconnections |
| Weight | Approx. 11.2 kg |
Safety & Diagnostics for Reliable Testing
The SU 600 includes error state monitoring, automatic overcurrent and overtemperature protection, and firmware freeze detection. The intelligent digital I/O system ensures safe operation across all use cases.
Application Areas
Perfectly suited for:
- Automotive and EMC compliance testing
- Aerospace and power systems R&D
- Industrial control simulation
- Battery load and endurance testing
- High-current switching environments
Why Choose the BLS SU 600?
The BLS SU 600 Switching Unit stands out with its exceptional adaptability, remote connectivity, robust diagnostics, and high current switching capability. It’s the ideal solution for labs and manufacturers needing precision, scalability, and seamless software integration in their automated test setups.
