FX Series DC Power Supply – Smart, Compact, and Versatile
The Aim-TTi FX Series DC Power Supply is designed to bring reliability, flexibility, and precision to modern electronics testing environments. Whether used in research, product development, or education, this power supply range meets the expectations of engineers who need compact bench solutions with multi-channel, high-resolution control.
PowerFlex Technology for Flexible Power Delivery

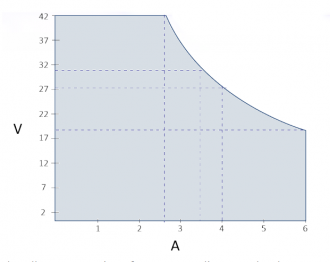

Both the FX100DP (dual output) and FX100TP (triple output) utilize PowerFlex autoranging technology on outputs 1 and 2. This provides dynamic voltage and current combinations within a fixed power limit of up to 105W per channel. Instead of being confined to a narrow voltage-current pair, users benefit from true flexibility without needing to oversize their power supply.
Precise Control with Multi-Channel Outputs
The FX Series provides real-time simultaneous control of voltage and current, either through the front-panel rotary and touch interface or remotely via USB. It includes 25 user-defined memory presets and features like voltage tracking (V2 = V1) and multi-output on/off switching, making complex setups simple and repeatable.
Ideal for Test Benches, Labs, and Automation
Equipped with USB remote interface and SCPI command compatibility, the FX Series easily integrates into automated test environments. The free Test Bridge software enhances PC control and data logging, adding value in quality assurance, debugging, and documentation processes.
Advanced Protection and Low Noise Operation
- Low output ripple and noise: <2mV typical
- High setting resolution: 1mV / 1mA
- Variable over-voltage (OVP) and over-current (OCP) protection
- Remote sensing for accurate voltage at the load
- Intelligent cooling system for quiet and efficient performance
Comparison Table: FX100DP vs FX100TP
| Feature | FX100DP (Dual Output) | FX100TP (Triple Output) |
| Total Output Power | 210W | 246W |
| Output Channels | 2 | 3 |
| PowerFlex Channels | 2 (CH1 & CH2) | 2 (CH1 & CH2) |
| Max Power per Channel (CH1 & CH2) | 105W | 105W |
| Max Voltage/Current (CH1 & CH2) | 60V / 7A | 60V / 7A |
| Channel 3 | N/A | Fixed 6V / 5A |
| Control Interface | USB | USB |
| Remote Sense | Yes | Yes |
| Protection Features | OVP, OCP | OVP, OCP |
| Software Included | Test Bridge | Test Bridge |
| SCPI Compatibility | Yes | Yes |
| Voltage Tracking (V2 = V1) | Yes | Yes |
| Fan Control | Intelligent (low noise) | Intelligent (low noise) |
A Reliable DC Power Solution for Modern Applications
From high-accuracy lab testing to reliable bench power supply use, the FX Series Programmable DC Power Supply delivers performance and safety in a cost-effective package. With dual and triple output options, PowerFlex efficiency, and remote interface support, this series is an ideal addition to any test setup.
