Description
The Hioki BT3562A Battery HiTester is a state-of-the-art automated tester designed for large battery cells and mid-sized packs up to 100 V, commonly used in xEVs and advanced energy storage systems. Built for production lines, shipping inspections, and acceptance testing, the BT3562A delivers high-speed, precise, and reliable measurements of internal resistance (AC-IR) and open-circuit voltage (OCV).
Advanced Battery Testing
With the BT3562A, users can perform simultaneous AC-IR and OCV measurements, ensuring fast inspection of battery performance and safety. The tester supports resistance ranges from 3 mΩ to 3.1 kΩ and voltage ranges from 6 V to 100 V, covering applications from individual cells to mid-sized packs. Its AC four-terminal method guarantees high-speed measurement and minimizes errors caused by line resistance or probe deterioration.
Production Line Ready
Equipped with a LAN interface, the BT3562A seamlessly integrates into automated production systems, reducing development costs and enabling multi-channel setups. It is designed to withstand ±30 kV static electricity, preventing downtime caused by electrostatic discharge during production.
Efficiency and Reliability
The tester allows users to increase inspection capacity with optional switch mainframes and paired instruments. Its high-resolution measurement capabilities enable quality verification of battery tabs, bus bars, and modules. By monitoring and compensating for line resistance variations, the BT3562A improves reliability and reduces maintenance cycles.
Ideal for Quality Control
The BT3562A is the ideal solution for shipping and acceptance inspections, ensuring battery quality even after transport or storage. Its compact design, rapid response time, and automated features make it indispensable for high-volume production environments.
Engineered for speed, accuracy, and robustness, the Hioki BT3562A Battery HiTester is the standard for xEV cell and mid-pack testing.
Technical Specifications – Hioki BT3562A
| Feature | Specification |
| Measurement Type | AC-IR and Open-Circuit Voltage (OCV) |
| Resistance Ranges | 3 mΩ / 30 mΩ / 300 mΩ / 3 Ω / 30 Ω / 300 Ω / 3 kΩ |
| Min. Resistance Resolution | 0.1 μΩ |
| Voltage Ranges | 6 V / 60 V / 100 V |
| Min. Voltage Resolution | 10 μV (6 V), 100 μV (60 V), 1 mV (100 V) |
| Measurement Frequency | 1 kHz ±0.2 Hz |
| Measurement Method | AC four-terminal method |
| Response Time | 10 ms |
| Sampling Period | 4–259 ms depending on mode and frequency |

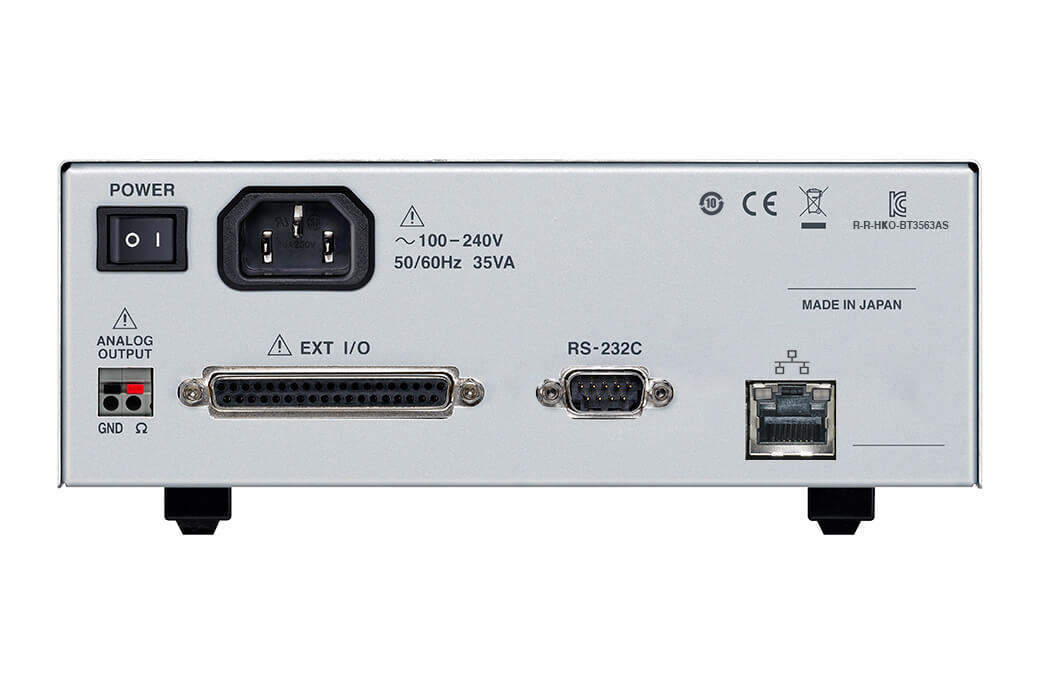

| Interfaces | LAN (TCP/IP), RS-232C, EXT I/O, Analog out |
| Static Electricity Resistance | ±30 kV contact discharge (IEC 61000-4-2) |
| Power Supply | 100–240 V AC, 50/60 Hz, Max 35 VA |
| Dimensions (W × H × D) | 215 × 80 × 295 mm |
| Weight | 2.4 kg |
| Included Accessories | Instruction Manual, Power Cord, Operating Precautions |
