MEMORY HiCORDER MR8827

The Hioki Memory Recorder is a high-speed, fully-isolated data acquisition system designed for precise and simultaneous measurement of multiple analog and logic signals. Ideal for testing, simulation, and system diagnostics, it combines waveform generation and recording in one powerful unit.

Key Features:

Generate and record waveforms using a single device
Simulate issues by outputting previously recorded problematic waveforms to test devices
Supports 32 analog + 32 logic channels, expandable to 28 analog + 64 logic channels
High-speed sampling up to 20 MS/s with fully isolated inputs
Ensures safe measurement with complete analog input isolation
Equipped with a large-capacity 512M-word memory
Simultaneously measures high voltage and ultra-low voltage system signals

REQUEST A QUOTE

Description

The Hioki Memory HiCorder MR8827 is a powerful, next-generation waveform recorder engineered for professionals who demand precision, safety, and versatility. Capable of simultaneous high-speed sampling at up to 20 MS/s across 32 analog and 32 logic channels (expandable to 28 analog + 64 logic), it offers complete channel-to-channel and main unit isolation, making it ideal for advanced testing environments.

From inverter and UPS evaluations to transformer fault diagnostics, the MR8827 ensures safe and accurate measurement of high and low voltage signals alike. It combines waveform generation and recording in one unit, allowing you to simulate and troubleshoot using previously recorded waveforms.

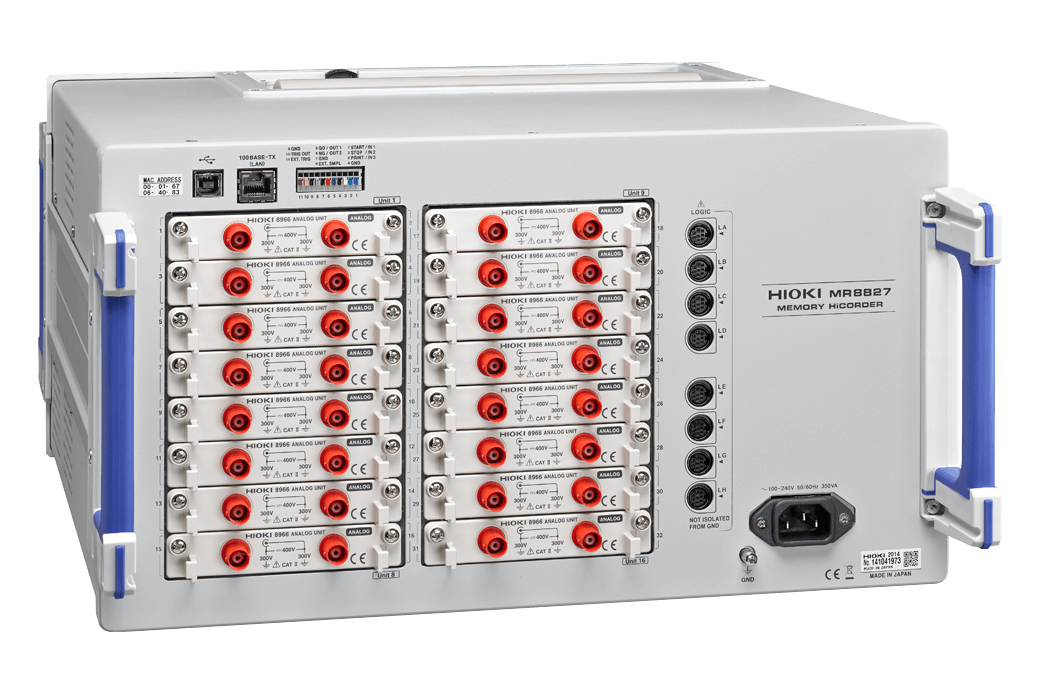

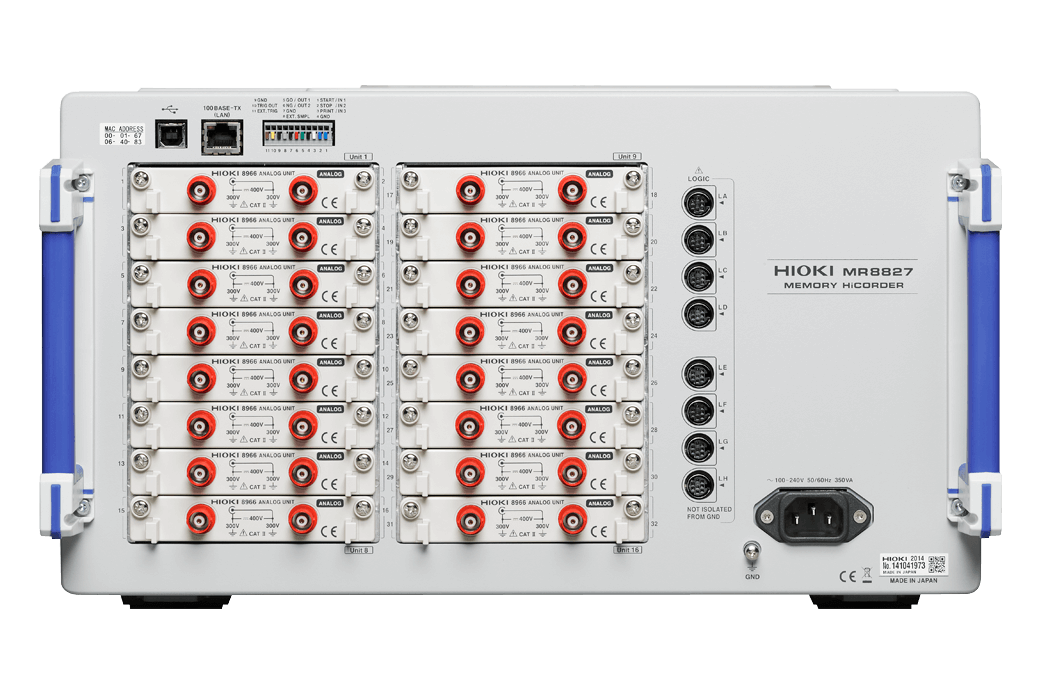

Customize your setup with up to 16 rear-slot modules and up to 8 logic probes, adapting to complex signal environments. This makes it a go-to instrument in industries such as power electronics, automotive, mechatronics, and industrial systems testing.

Featuring a high-capacity 512M-word memory, A4 high-speed thermal printing, and multiple data storage options (internal SSD, USB, CF card), the MR8827 lets you capture, print, and store critical waveforms with speed and ease—ensuring no data loss, even during extended testing.

Basic specifications of MEMORY HiCORDER MR8827:

Accuracy guaranteed: 1 year

Max. Number of channels	32 ch analog + 32 ch logic, or 28 ch analog + 64 ch logic (when use with built-in logic input + plug-in logic unit 8973 × 2)
Number of slots	16 slots (Max. 16)
Number of logic channels	32 ch logic (logic probe terminal GND share a common GND with chassis) Built-in logic input not available when using DVM Unit MR8990 on slots 1, 2, 9, or 10. [Limitation on using built-in logic input] (with logic measurement ON) • Measurement resolution on slots 1, 2, 9, and slot 10 is limited up to 12 bits • Cannot use Frequency Unit 8970 on slots 1, 2, 9, or 10
Measurement ranges (20 div full-scale)	[Analog Unit 8966]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/100 of range (using 12-bit A/D) [High Resolution Unit 8968]: 5 mV/div to 20 V/div, 12 ranges, resolution : 1/1600 of range (using 16-bit A/D)
Max. allowable input	400 V DC (using the 8966/8968)
Frequency characteristics	DC to 5 MHz (-3 dB, using the 8966), DC to 100 kHz (-3 dB, using the 8968)
Time axis (Memory function)	5 µs to 5 min/div, 26 ranges, at 100 points/div resolution
Measurement functions	Memory (high-speed recording), Recorder (real-time recording), X-Y recorder, FFT
Other functions	Numerical calculation, Waveform processing, Waveform judgment (at Memory, or FFT function)
Memory capacity	128M-words/ch (using 4 Analog channels) to 16M-words/ch (using 32 Analog channels), Total capacity 512MW memory
Data storage media	USB memory stick, CF card, Built-in SSD unit (option, 128GB) Approx. 125 sec. when saving 100 MB of data Data of 100 MB in size can record 16,000 div waveforms across 32 channels.
Printing	[Built-in A4-size printer option]: 216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/s
Display	10.4 inch TFT color LCD (SVGA, 800 × 600 dots)
External interfaces	LAN: 100BASE-TX, USB 2.0 series A receptacle 2 port (for USB memory, mouse) USB 2.0 series B receptacle (for communication with PC, mass storage)
Power supply	100 V to 240 V AC, 50/60 Hz (220 VA max., when using printer: 350 VA max.)
Dimensions and mass	401 mm (15.79 in)W × 233 mm (9.17 in)H × 388 mm (15.28 in)D (including protruding parts except handle), 12.6 kg (444.4 oz) (main unit only)
Included accessories	Instruction manual ×1, Power cord ×1, Application disk (CD-R) ×1, Input cord label ×1, Printer paper ×1 (when ordering printer unit), Roll paper attachment ×2 (when ordering printer unit)
