PSA Series 5 Spectrum Analyzer

High-performance, battery-powered spectrum analyzers ideal for RF engineers and field use.

Key Features:

Frequency range: 10MHz to 3.6GHz or 6.0GHz
-120dBm typical noise floor
Resolution bandwidths from 300Hz to 10MHz
AM/FM audio demodulation with zero span
Live, View & Reference traces with markers
Smart marker tracking with peak detection
USB data logging & real-time PC view
Compact, lightweight (0.56 kg) with >3hr battery
Optional U02 features: limit lines, OBW, ACPR, AM/FM waveform demodulation

Description

True Handheld Spectrum Analysis Redefined

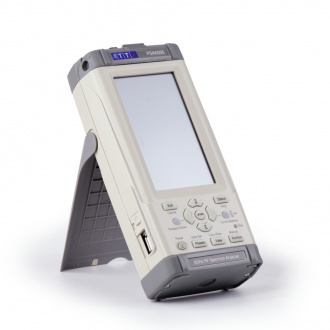

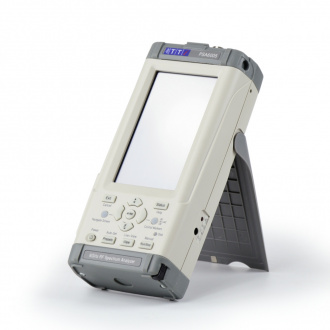

The Aim-TTi PSA Series 5 Spectrum Analyzer delivers professional-grade RF signal analysis in a truly portable handheld device. Designed for engineers and technicians who need the performance of a benchtop analyzer in the field, it offers a robust feature set packed into a compact 0.56 kg unit.

Wideband Performance in Your Hands

Choose from two frequency models:

PSA3605 covers 10MHz to 3.6GHz
PSA6005 extends up to 6.0GHz

With a typical noise floor of -120dBm and resolution bandwidths from 300Hz to 10MHz, the PSA Series 5 is equipped to detect even the faintest signals with precision.

Visual Clarity and Control

The device offers Live, View, and Reference trace overlays, complete with dual markers that display both absolute and delta values. Its smart peak tracking ensures accurate signal capture, while the frequency counter provides resolution down to 10Hz.

Real-Time Demodulation & Zero Span

Thanks to zero span mode and support for AM and FM audio demodulation, the PSA Series 5 is more than a spectrum analyzer—it’s a real-time RF visualization tool. Built-in trace averaging, peak hold, and auto-find functions make it simple to locate, isolate, and analyze signals in seconds.

Connectivity and Data Logging

With USB interfaces for PC connection and flash drives, plus HA-PC-Link software compatibility, logging, saving, and exporting measurement data has never been easier. Users can save unlimited screenshots, waveforms, and setup profiles using custom filenames and timestamped logs.

Optional U02 Advanced Toolkit (on USC models)

Boost your capabilities with the U02 option, which includes:

High-resolution scan with 210,000 points
Limit line comparisons, automatic OBW, CP, and ACPR measurements
External sweep triggering, waveform demodulation, and PC screen sharing

Built for Portability

Running on a rechargeable lithium-ion battery, the PSA Series 5 offers more than 3 hours of continuous operation, making it ideal for RF surveys, interference hunting, or on-site testing.

Comparison Table

Model	Frequency Range	Option U02	Battery Powered	USB Logging	Weight
PSA3605	10MHz–3.6GHz	❌	✅	✅	0.56 kg
PSA3605USC	10MHz–3.6GHz	✅	✅	✅	0.56 kg
PSA6005	10MHz–6.0GHz	❌	✅	✅	0.56 kg
PSA6005USC	10MHz–6.0GHz	✅	✅	✅	0.56 kg
