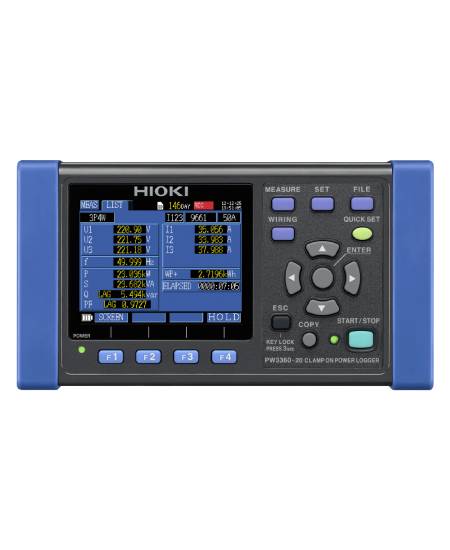

PW3360 Clamp On Power Logger for Energy Audits
The Hioki PW3360 Clamp On Power Logger is purpose-built for professionals conducting energy audits, power monitoring, and energy conservation studies. Its clamp-based measurement method allows safe and accurate power analysis without disconnecting circuits, making it ideal for live electrical environments.
Designed to handle single-phase through three-phase, four-wire systems, the PW3360 Clamp On Power Logger provides the flexibility required to evaluate complex power distribution networks. It can also measure up to three single-phase, two-wire circuits simultaneously within the same power system, allowing comprehensive assessments with a single device.
Wide Voltage Range
With a voltage measurement range of 90 V to 780 V, the PW3360 Clamp On Power Logger supports a broad range of commercial and industrial applications. When paired with compatible clamp sensors, it captures accurate voltage, current, and power data to help identify inefficiencies, peak demand issues, and opportunities for energy savings.
Its slim, lightweight body weighing approximately 550 grams makes it easy to transport and install, even inside crowded electrical panels or confined cubicles.
Guided Setup
The built-in Quick Set function simplifies installation by providing clear, on-screen wiring guidance. Even users with limited experience can confidently configure the logger for three-phase measurements. The integrated wiring check feature alerts users to incorrect connections, reducing the risk of invalid data and costly rework.
Visual Data Analysis
The PW3360 Clamp On Power Logger displays recorded measurements in intuitive trend and demand graphs. Users can quickly review instantaneous values, as well as minimum, maximum, and average readings by moving a cursor across the display. This visualization makes it easier to understand power usage patterns and identify anomalies directly at the job site.
Advanced Power Quality
For users requiring deeper power quality insight, the PW3360-21 model supports harmonic measurements up to the 40th order. This capability helps identify harmonic distortion that can impact equipment performance, reliability, and energy efficiency.
With optional PC connectivity via GENNECT One software, measurement data can be monitored and analyzed remotely, improving workflow efficiency and reporting accuracy.
Technical Specifications Table
| Specification | Details |
| Product Name | Hioki PW3360 Clamp On Power Logger |
| Measurement Type | Voltage, current, power |
| Voltage Range | 90 V to 780 V |
| Circuit Support | Single-phase to three-phase, 4-wire |
| Simultaneous Measurement | Up to three single-phase, 2-wire circuits |
| Harmonic Measurement | Up to 40th order with PW3360-21 |
| Data Storage | SD card |
| Display | Trend and demand graphs |
| Setup Assistance | Quick Set wiring guidance |
| Weight | Approx. 550 g |
| Typical Applications | Energy audits, power monitoring, energy conservation |
