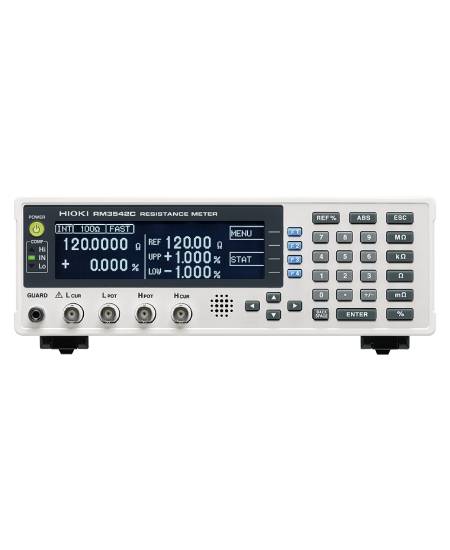

RM3542C Resistance Meter for High-Precision Chip Component Inspection
The RM3542C Resistance Meter is a high-precision instrument tailored for automated in-line inspection of chip resistors and ferrite beads. With the growing demand for faster, more reliable electronics manufacturing, this resistance meter ensures accurate measurement while maintaining production throughput.
Designed for modern production lines, the RM3542C uses low-stress testing (≤5 V) and sequential contact improvement to prevent shifts in component characteristics, making it ideal for sensitive micro-components, including 0080004 resistors and ferrite beads. Its galvanically isolated architecture ensures stable readings even in electrically noisy environments, supporting uninterrupted high-speed operations.
For advanced applications, the RM3542C-3 model offers the ΔR function, which automatically compares measurements between stages, quickly identifying defects and reducing system workload. The BIN grading function categorizes results into up to 7 bins, enhancing sorting efficiency and ensuring rapid pass/fail decisions. Jumper resistance support accelerates the inspection of zero-ohm and low-resistance resistors, reducing inspection time by up to 76% without sacrificing accuracy.
The RM3542C also features continuous contact monitoring and voltage checking to eliminate misjudgments caused by poor probe contact. Integration times are fully configurable for each measurement range, balancing speed and repeatability to meet strict takt time requirements. Operators benefit from preset condition recall and stage mismatch prevention, ensuring consistent, error-free setup across multi-product lines.
Whether in a high-volume taping line or a multi-stage automated system, the RM3542C Resistance Meter combines speed, precision, and safety to deliver reliable quality control for next-generation electronics manufacturing.
Technical Specifications Table
| Specification | Details |
| Product Name | RM3542C Resistance Meter |
| Application | Automated in-line testing of chip resistors and ferrite beads |
| Measurement Type | DC resistance measurement |
| Resolution | Ultra-high precision (model-dependent) |
| ΔR Function | RM3542C-3 only, cross-stage comparison |
| BIN Grading | RM3542C-3 only, up to 7 categories |
| Jumper Resistance | Supported for fast low-resistance inspection |
| Applied Voltage | ≤5 V (low-stress testing) |
| Contact Monitoring | Continuous with pre-measurement stabilization |
| Noise Immunity | Galvanically isolated architecture |
| Integration Time | Configurable for speed/repeatability balance |
| Supported Components | Chip resistors, ferrite beads, micro-components |
| Probe Support | Sold separately; compatible with Hioki probe kits |
| Models | RM3542C-1, RM3542C-2 (GP-IB), RM3542C-3 (advanced) |
