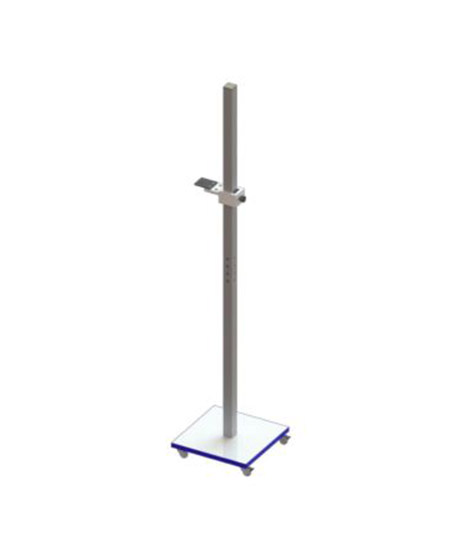

The FPP2.3-M Manual Field Probe Positioner is a precise manual height adjustment system for electromagnetic field probes, designed for uniform field calibration in EMC testing environments.

Key Features:

• Manual height adjustment: 0.2 – 2.3 m
• Maximum load capacity: 3 kg
• Total height: 2.5 m
• Fabricated from PVC and reinforced fiberglass, fully non-metallic
• Base dimensions: 0.5 m × 0.5 m with movable wheels
• Lightweight and portable: approx. 10 kg
• Compliant with EN61000-4-3 and IEC61000-4-3 standards
• Ideal for uniform field calibration and precise field probe positioning

The FPP2.3/1.5 M Field Probe Positioner is a high-precision, remote-controlled axial system designed for fast and automated electromagnetic field measurements.

Key Features:

• Remote-controlled horizontal movement for single-axis operation
• Moves 4 probes to 4 positions for rapid 16-point calibration
• Automates uniform field calibration (UFA) per EN61000-4-3 / IEC61000-4-3
• Load capacity: 3 kg
• Adjustable positioning speed (1–35 cm/s)
• High accuracy: ±0.5 cm
• Durable construction: plastic & reinforced fiberglass, minimal metal parts
• LAN (TCP/IP) interface for full remote operation
• Compatible with FCU 3.0 or NCD Controller

Compact, versatile, and efficient, the FX Series is ideal for test labs, R&D, and educational use.

Key Features:

• PowerFlex autoranging outputs (up to 105W per channel)
• Dual or triple output models (210W or 246W total)
• SELV compliant and high safety design
• Rotary, touch, and USB control options
• Low ripple noise (<2mV), high resolution (1mV/1mA)
• Voltage tracking and simultaneous V/I control
• Remote USB interface with SCPI protocol
• 25 user-defined memory presets
• Switchable remote sense & intelligent cooling
• Includes Test Bridge software for logging & automation

A turnkey solution for harmonics and flicker compliance, this system delivers powerful, efficient, and automated testing for today’s high-power demands.

Key Features:

• Fully compliant with IEC/EN 61000-3-2, -3-3, -3-11, and -3-12
• High-power testing up to 75 A and 50 kVA
• Regenerative AC power supply with energy recovery
• Programmable simulation: voltage, frequency, harmonics, interharmonics
• Precision impedance network for accurate flicker measurements
• Advanced power analyzer with harmonic and flicker metering
• Preloaded test sequences with automated software control
• Expandable to include dips, swells, and short interruptions

• Current measurement from insulated probing of conductor
• Suitable for observation and measurement of current in PCB tracks, component leads and ground planes
• Wide dynamic range of 10mA to 20A peak to peak
• Wide bandwidth of DC to 5MHz
• Low noise figure equivalent to <6mA rms at full B/W
• Safety rated to 300V Cat II (600V Cat 1)
• Suitable for connection to any oscilloscope
• High accuracy general purpose H-field probe
• Converts to ‘closed magnetic circuit’ current probe

The MAS 1.0/1.5 – 35kg Manual Antenna Stand is a robust and versatile stand for precise antenna positioning in EMC testing environments.

Key Features:

• Adjustable height from 1.0 m to 1.5 m using hydraulic cylinder
• Manual polarization change from 0° to 90°
• Supports antennas up to 35 kg
• Manual tilt adjustment up to 30°
• Rotating antenna bar to eliminate elevation errors
• Stable base: 0.9 m x 1.57 m
• Suitable for EMC chambers, labs, and industrial setups

The MGA 1033 Magnetic Immunity Generator and Analyzer is a compact and versatile system designed for generating and measuring magnetic fields according to international EMC standards. With its integrated high-power amplifier and flexible configuration, it ensures precise and legally compliant testing for industries including automotive, avionics, military, and medical electronics.

Key Features:

• Frequency range: DC to 250 kHz
• Field strengths up to 1000 A/m (with Helmholtz coils)
• Integrated 800 W high-power amplifier
• Supports ISO 11452-8, EN 55103, DO-160, MIL-STD-461 and more
• Three independent modules: signal generator, power amplifier, spectrum analyzer
• Self-calibration and calibration modes with Helmholtz coils
• Fully automatic testing with optional triaxial coil
• Wide range of compatible accessories

MOL2000T Fiber Optic Link 80 Hz – 3.5 GHz with Gain and Sleep Feature delivers secure, high-performance analog signal transmission in demanding RF and EMC applications.

Key Features:

• Wide bandwidth: 80 Hz to 3.5 GHz
• Remote-controlled gain: -62.5 dB to +24 dB (0.5 dB steps)
• Automatic optical level control for stable performance
• High immunity to electric fields (up to 500 kV/m, MIL-STD 461 RS105)
• Built-in test pulse generator for link verification
• Long-distance transmission up to 1 km
• Compact & lightweight: 380 g per unit
• Battery-powered with 40-hour autonomy and sleep mode
• Flexible control with FibREmote software (PC & Android)
• Rugged RF and optical connectors for durability

Key Features:

• Wide bandwidth: DC to 25 MHz for accurate signal transmission
• Dual-channel design with two independent inputs
• High EMI immunity up to 500 kV/m (MIL-STD 461 RS105)
• Remote-selectable attenuation: 1:1, 10:1, 100:1
• Galvanic isolation for safe operation in high-voltage environments
• Long-distance optical transmission up to 1 km
• Battery-powered with 20+ hour autonomy and sleep mode
• Remote configuration via FibREmote software for PC & Android

The MOL3000 Analog Optical Link is a high-performance transmission system designed for EMC and RF applications. It ensures reliable, interference-free signal transfer even in harsh electromagnetic environments, making it an essential tool for industries including defense, aerospace, power, and research.

Key Features:

• Wide frequency bandwidth: 80 Hz to 3.5 GHz
• Automatic optical level control for stable performance
• High immunity to external electric fields (>500 kV/m)
• Lightweight and compact: 99 x 64 x 41 mm, 350 g per unit
• Flexible power options with 40-hour battery autonomy
• Long-distance transmission up to 1 km
• Rugged RF (SMA) and optical (FC/APC) connectors
• Supplied with transmitter, receiver, chargers, and carrying case

Opto Fiber-Optic Automotive Link Overview

Key Features:

• Designed for reliable automotive communication and EMC testing
• Wide range of supported protocols: CAN, LIN, FlexRay, SPI, SENT, A2B, PSI5, K-Line, and more
• Automotive Ethernet options with Marvell, Broadcom, and NXP chipsets
• High-speed data transfer (up to 20 MS/s for SENT, 10 Mbit/s for FlexRay, 1 Gbit/s for Ethernet)
• Flexible integration: standalone shielded cases or 19” rack-mounted receivers
• Ideal for use in anechoic chambers and EMC-compliant environments
• Partnered with MK-Messtechnik GmbH for proven quality and performance

optoCharger Bidirectional Optical Transmission for EV Charging

Key Features:

• Bidirectional Optical Isolation: Transmits Control Pilot, CAN, and auxiliary signals over a 20 m multimode fiber link.
• Battery Powered: Internal 8.4 V, 4 Ah NiMH pack provides up to 10 hours of operation.
• Robust Shielding: Anodized aluminum housing with rubber bumpers for durability and CISPR 25 Class 5 compliance.
• Protocol Compatibility: Supports CCS, CHAdeMO, and GB/T charging standards.
• Versatile Connectivity: BNC for Control Pilot, D SUB 15 for CAN, sensors, and lock control.
• Portable & Lightweight: Compact design 140 × 86 × 65 mm, weight ≈760 g.

optoLAN 100/1000Base-T1-BCM89887 Optical Link for Automotive Ethernet

Key Features:

• Supports 1000Base-T1 and 100Base-T1 automotive Ethernet signals
• Equipped with Broadcom BCM89887 chipset for reliable performance
• Bidirectional optical transmission ensures high fidelity and interference-free testing
• Rosenberger HSD (Z-coded) connectors for secure connectivity
• Shielded aluminum housing prevents electromagnetic interference
• Battery-powered with >12 hours runtime for flexible lab use
• Proven reliability in automotive EMC and EMI/EME test labs
• Compatible with adapter cables and external power options for custom setups

A reliable optical link for automotive Ethernet signals, optimized for EMC testing with Broadcom BCM89811 chipset compatibility.

Key Features:

• Designed for 100Base-T1 automotive Ethernet applications
• Compatible with Broadcom BCM89811 PHY chipset
• Supports T1-to-T1 or T1-to-Tx with integrated media converter
• Equipped with Rosenberger HSD connectors and FSMA optical ports
• Shielded aluminum housing for EMI protection
• Battery powered with >10 hours runtime
• Complies with ISO 11452-2 and MIL-STD-461 standards
• Ideal for automotive, military, RF, and aerospace industries

A compact, high-performance power supply for automotive EMC and battery voltage simulation.

Key Features:

• Battery simulator for 12V, 24V, 42V, and 48V systems
• Output: 0–66V / 0–55A (max)
• Fast voltage rise time up to 100V/µs
• ISO 7637-2 and ISO 16750-2 compliant
• Remote control via CAR-Remote Software
• Impulse Recording Function (IRF) included
• Compact 19-inch desktop form (15 kg only)
• Overvoltage and thermal protection
• Slew rate: 10V/µs with fan cooling system
• Compatible with HILO CAR-SYS test systems
