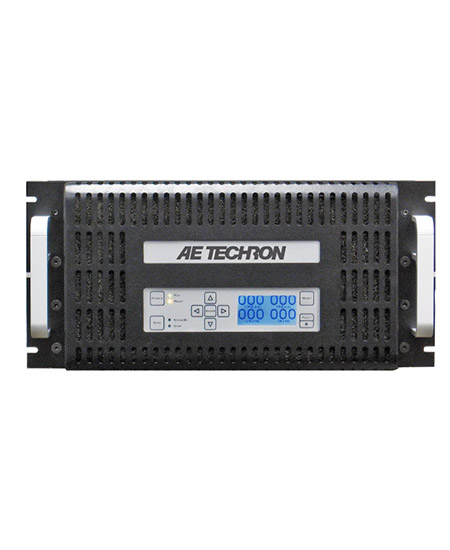

The 7548 Linear Amplifier is a high-output, low-noise solution engineered for precision and reliability in demanding environments.

Key Features:

• Up to 100 Ap / 195 Vp output
• Delivers 12,000W peak power for 40 ms
• Supports continuous 5,500W output into 1Ω load
• Operates from DC to 100 kHz bandwidth
• Field-selectable current or voltage mode
• Ideal for MIL-STD-704F three-phase testing
• Stackable for 800 Vp or 170 Ap system output
• Built-in protection against over-voltage, over-temp, and overload
• Intuitive LCD display and status indicators

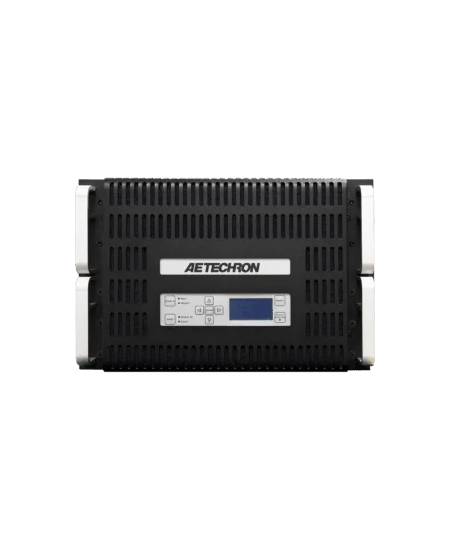

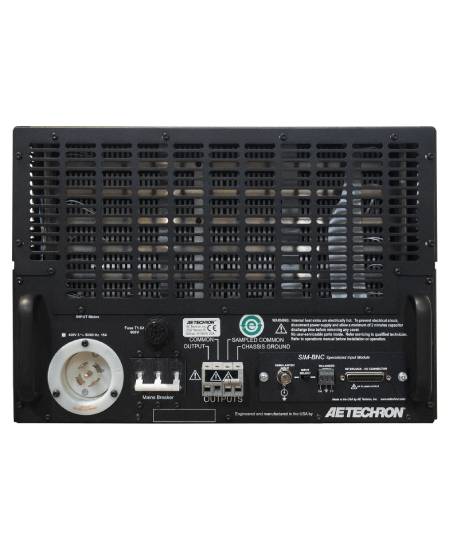

Aetec 7794 High Current Industrial Amplifier

Key Features:

• Up to 200 Ap / 100 Vp; DC to 150 kHz bandwidth
• Stable with resistive, inductive, or capacitive loads
• Controlled-voltage or controlled-current operation
• Switchable rail supply for optimized load impedance
• 60A continuous output at 13.8V DC
• ±95V DC and >35 V/µs slew rate
• Four-quadrant operation: sourcing and sinking
• Extensive protection against overvoltage, overcurrent, overtemperature
• Rack-mountable chassis with LCD fault diagnostics

AETechron 7796 Amplifier – High-Current, Low-Impedance Industrial Power
Ideal for precision testing, EMC simulations, and MRI systems.

Key Features:

• Delivers over 200 Ap peak current, up to ±180V
• DC to 100 kHz bandwidth for versatile signal reproduction
• Four-quadrant operation (source/sink modes)
• Operates in both voltage and current-controlled modes
• Handles in-rush currents up to 200A
• Field-configurable rail supply modes for load optimization
• Advanced protection against voltage, current, and thermal faults
• Stackable for higher voltage or current (up to 800 Ap)

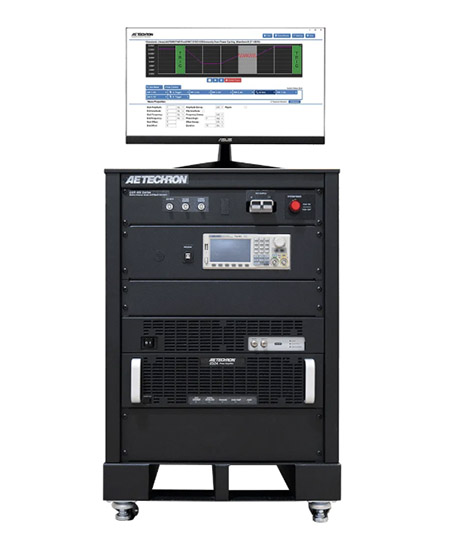

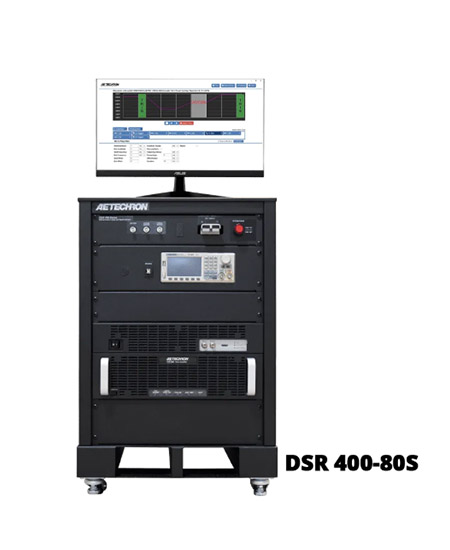

The DSR 400 Series Test System is a compact, high-performance simulator for rigorous AC and DC immunity testing. Built for DO 160 and MIL STD 704 compliance, it integrates a powerful waveform generator, cutting-edge power technology, and a vast standards library—making it an ideal solution for demanding EMC test labs.

Key Features:

• Complete Test Solution for DO 160 Sec. 16 and MIL STD 704
• Built-In Standards Library with 3,400+ automotive and aviation test routines
• 4-Quadrant Operation: Sources and sinks current for complex test needs
• High Surge Capability: Delivers 5x rated power for 200 ms
• Fast Rise Time: Less than 30 µs for real-time performance
• Modular Output: 80A or 160A continuous current options available
• Multiple Waveform Options: Includes sine, ripple, triangle, sawtooth, square, and DC
• Remote Control Ready: LAN and GPIO integration for larger systems
• Easy-to-Use Interface: Pre-configured or user-custom test sequences

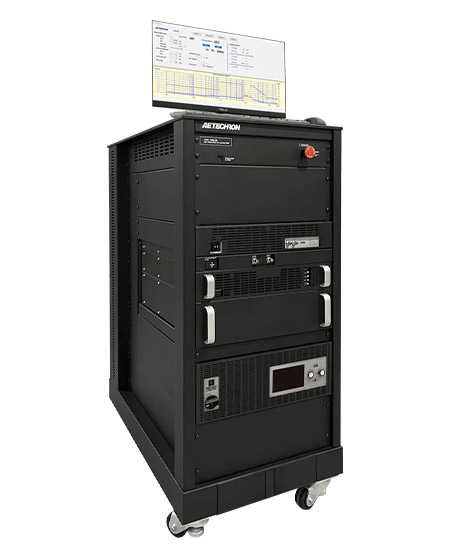

Engineered for cutting-edge EV, automotive, and aerospace compliance, the HVR 1000 is a complete high-voltage ripple test system built to handle demanding lab environments with unmatched precision and safety.

Key Features:

• Wide Frequency Range: AC ripple from 10 Hz to 200 kHz
• High Voltage Output: Up to 1000V DC and 60 kW power
• Waveform Versatility: Generates sine, triangle, and custom signals
• Robust Safety: Multi-layer overvoltage, overcurrent, and thermal protection
• Zero Licensing Fees: Future test standard updates included
• User-Centric Interface: Intuitive controls with HDMI and LAN support
• Flexible Configuration: Available as HVR 1000RG (Ripple Generator only)
• Space-Saving Design: Small footprint, ideal for compact lab setups

The HVR 1200RG Ripple Generator is a powerful, next-gen solution tailored for electric vehicle high-voltage testing. Designed for use with traction inverters and HIL test stands, this rugged system delivers unmatched ripple current and voltage capabilities across a wide frequency range.

Key Features:

• Ripple Current Output: Up to 600 A peak
• Voltage Range: 0 – 150 Vp (300 Vp-p)
• Wide Frequency Support: 150 Hz to 300 kHz
• DC Voltage Compatibility: 0 – 1200 V (or up to 2000 V in bridged mode)
• Data Monitoring: Real-time tracking of voltage, current, and impedance
• Built-In Protections: Handles short circuits and noisy DUTs effortlessly
• Modular & Expandable: Configurable for current and future EV standards
• Noise-Resistant: Engineered to operate accurately in high-noise environments

• Versatile Current Sensing: Accurately measure small and large currents, from sub-milliamp levels to thousands of amps.
• High-Speed Pulse Monitoring: Patented distributed termination technology enables ultra-fast rise time measurement (as short as 2ns).
• Enhanced Noise Immunity & Safety: Double shielding minimizes external noise, making these monitors ideal for high-voltage applications.
• Robust Construction: Sealed models are suitable for high-voltage insulating oil or vacuum environments.
• Broad Compatibility: Works with oscilloscopes, spectrum analyzers, power analyzers, digital voltmeters, ADCs, and more.

High-Precision Current Measurement with BNC Connectivity

• Precision Current Sensing: ±1% accuracy ensures reliable real-time current monitoring.
• BNC Connector for Seamless Connectivity: Works with oscilloscopes, ADCs, spectrum analyzers, and power analyzers.
• Clamp-On Design for Non-Intrusive Measurement: Safely monitor live current flow without circuit disruption.
• 50 Ohm Termination Compatible: Output reduces by half when using a 50Ω termination.
• High-Voltage Safety Considerations: Conductive case requires adequate insulation for user safety.

High-Precision Current Sensing with BNC Connectivity

• High-Precision Measurement: ±1% accuracy for reliable current sensing.
• Customizable Configurations: Designed to meet specific user requirements for precision measurement.
• BNC Connector for Easy Integration: Works with oscilloscopes, ADCs, spectrum analyzers, and power analyzers.
• Non-Insulated Conductive Case: Proper insulation must be provided on the monitored conductor.
• 50 Ohm Termination Compatibility: Using a 50Ω termination reduces the output to half.

High-Precision Voltage Measurement Up to 500kV

• High-Voltage Measurement Capability: Supports up to 500kV in insulating oil and customizable calibration for air use.
• Precision Division Ratios: Models with 5000:1, 10,000:1, and custom ratios, ensuring reliable voltage scaling.
• Temperature-Compensated Accuracy: ±1% over 20°C to 80°C, providing stable voltage readings.
• Robust Design for Harsh Environments: Sealed for high-voltage insulating oil use, with custom air calibration available.
• Safe Operation with Ground Loop Control: The outer conductor is isolated from the case, allowing controlled grounding connections.

Precision Pulse Output Up to 500kV

• Wide Voltage Range: Supports 100kV to 500kV pulse outputs for high-energy applications.
• Fast Pulse Transmission: Pulse durations from 0.25 to 50 microseconds, ensuring efficient energy transfer.
• Insulating Oil Immersion: Open-construction design for operation in high-voltage insulating oil, reducing breakdown risks.
• Advanced Overvoltage Protection: Designed with built-in safety factors (50-100%) to prevent damage from overvoltages.
• Reliable Flashover Protection: Corona ring-to-core insulation prevents damage from accidental flashovers.

Applications:

• Aerospace & Defense – Avionics, MIL-STD-704, EMC compliance, 400Hz & wild frequency testing
• EV Charging & V2G/V2H Testing – On-board chargers, grid-tied inverters, smart grid simulation
• Energy Storage & Renewable Systems – Home ESS, solar PV/grid-tied inverter testing
• Industrial Power Simulation – Frequency conversion, harmonic analysis, transient simulations
• Smart Grid & Compliance Testing – IEC 61000, RTCA DO-160, IEEE 1547, and more

Applications

• Aerospace & Avionics – Frequency conversion (400Hz & wild frequency testing), MIL-STD compliance
• EV Charging & Power Electronics – On-board chargers (OBC), V2G/V2H testing, battery simulation
• Renewable Energy Systems – Solar PV/grid-tied inverter testing, home ESS & smart grid simulations
• Power Supply & Industrial Testing – AC/DC power supply evaluation, network server & data center testing
• Research & Development Labs – High-frequency power testing, compliance verification, transient simulations

Applications

• Aerospace & Avionics Testing – 400Hz & wild frequency (360Hz-800Hz) compliance
• EV Charging & Power Electronics – AC/DC conversion, V2G, V2H, and OBC testing
• Renewable Energy & Smart Grid – Solar PV inverters, energy storage & grid simulation
• Industrial Power & Manufacturing – AC power supply testing, production line QA
• R&D & Compliance Labs – IEC61000, MIL-STD-704, RTCA DO-160 testing
• Railway Power Systems – 16.6Hz & 400Hz frequency compliance

High-Power 4-Quadrant AC & DC Power Source with Load Option

• Powerful & Versatile: 12kVA / kW to 21kVA / kW in a 4U chassis. Parallel units up to 168kVA/kW (single cabinet)or 252kVA/kW (dual cabinet).
• Multi-Phase Flexibility: Supports single-phase, split-phase, and three-phase configurations with AC, DC, or AC+DC output.
• Grid Simulation & Compliance Testing: Emulates real-world power grid conditions, simulating disturbances, harmonics, and interharmonics for accurate renewable energy testing (solar inverters, EV charging, microgrid, and UPS applications).
• Regenerative Efficiency: Over 90% energy recovery back to the grid reduces power consumption and operational costs.
• Advanced Control & Monitoring: SmartSource Suite enables remote control via an intuitive web browser interface with LAN, USB, GPIB, and RS232 connectivity.

High-Power 4-Quadrant AC & DC Power Source

• High Power Density: Available in 30kVA/kW, 45kVA/kW, and 55kVA/kW models, with parallel cabinets scaling up to 550kVA/kW.
• Versatile Output Capability: AC, DC, or AC+DC modes in single-phase, split-phase, or three-phase configurations.
• Dual Constant Power Voltage Ranges:
  • AC Voltage: 0-240V L-N / 0-415V L-L & 0-480V L-N / 0-830V L-L
  • DC Voltage: 0-340Vdc & 0-680Vdc
• Grid Compliance Testing: Meets global standards like IEEE 1547, UL 1741, IEC 61000-3, IEC 61000-4
• Regenerative Power Efficiency: >90% energy recovery back to the grid, reducing power waste and operational costs
• PHIL Interface for Hardware-in-the-Loop (HIL) Testing: High-speed analog I/O for real-time frequency, voltage, and current control.
• SmartSource Suite for Remote Testing: Web-based real-time monitoring and control via LAN, USB, GPIB, and RS232.
