• Proven member of a modular Power Module family, more than 800 units are in service
• Precision-regulated Bi-Polar output provides up to +12 to -12 Amps for Magnet loads.
• Smooth operation through zero amps output current, no “Crossover” problems.
• All 2510 MCOR12 Power Modules are identical and interchangeable.
• Has two high-precision measurements of output current;
  • one is used to close the regulation control loop,
  • provides an independent monitoring signal to the Crate Interface Card.
• Fault sensing circuitry in the module sets a Fault Latch which inhibits the output.
• A (momentary) Sync input signal inhibits MOSFET switching when it is active (high);
  • this eliminate switching noise .
  • reduces power line noise during sensitive analog signal measurements.

• Proven member of a modular Power Module family, more than 800 units are in service
• Precision-regulated Bi-Polar output provides up to +30 to -30 Amps for Magnet loads.
• Smooth operation through zero amps output current, no “Crossover” problems.
• All 2510R30 MCOR30 Power Modules are identical and interchangeable
  • Programming Card is plugged into the replacement module.
• Each channel has a critically-damped, LC noise filter with a cut-off frequency of about 8 kHz.
• A 16-pin front panel diagnostics connector taps onto major circuit nodes which enables quick “inthe-crate” fault evaluation

• 2U Chassis – 19″ rack mount 3.48” Height, 9.60” Depth and Weight 6lb.
• Power 120V AC 60Hz
• Washable front removable air filter
• Ball Bearing AC fans provide 330 CFM
• Dual plenum design
• Cooling for 160mm,220mm depth modules
• Diverts lower warmed air to rear of Cabinet
• RM option diverts lower air to front of Cabinet

• accommodate these control schemes
• total control system interface on a single VME-standard card
• occupies the left-most slot of the crate
• monitoring voltage reference inputs, output voltages and fault conditions
• standard VMEbus-compatible 6U by 220 mm board installed
• Eurocard crate
• Two 96-pin I/O connectors

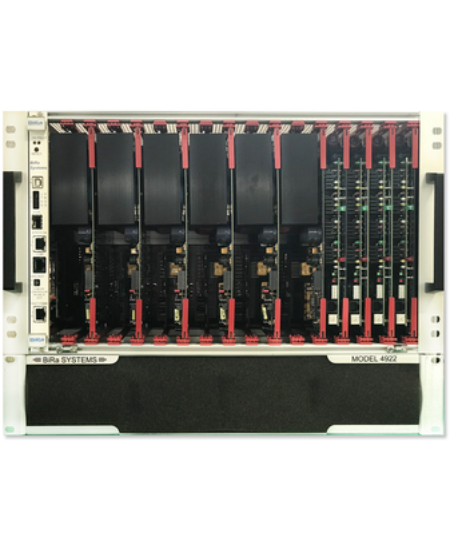

MCOR Modules

MCOR 2/6/9/12

Each module can be customized to provide maximum outputs of 2 amps, 6 amps, 9 amps, and 12 amps. Up to 16 of these can fit in a single 6U VME style crate.

MCOR 30

Each module can provide a maximum output 30 amps. Up to 8 of these can fit in a single 6U VME style crate.

• provides precision bi-polar output currents
• minimal zero-cross over distortion
• 19” rack mounted 6U x 220 mm crate
• crate has 17 slots; 16 (slot 0 thru 15)
• connectors
  • J1 (ExtIntlk),
  • J2 (CrateOK),
  • J3 (Input Reference Voltages),
  • J4 (Output Monitors), and
  • J9 (Bitbus)
