400-6361 AnyWave Control Unit

Key Features:

Dual-channel arbitrary waveform generation with 2.8 MS/s sampling rate and 16-bit resolution.
Integrated with BOLAB WaveMaster software for graphical and tabular waveform design.
Endless waveform streaming with double buffer memory for uninterrupted operation.
Real-time triggering, data acquisition, and live waveform editing.
Supports importing oscilloscope data, ASCII, and TDMS files.
Preloaded waveform libraries for LV 124, LV 148, ISO 7637-2, ISO 16750-2, GMW, JLR, VW standards.
Seamless integration with LabView, Python, CANoe, MATLAB, C/C++ via DLLs.
Compact and robust design for laboratory and industrial testing applications.

REQUEST A QUOTE

Description

The 400-6361 AnyWave Control Unit is a high-performance solution for generating, simulating, and controlling complex waveforms in automotive, aerospace, RF, and industrial electronics testing. Developed by BOLAB Systems GmbH, it combines unmatched flexibility with precision, allowing engineers to replicate real-world electrical conditions for compliance and research applications.

Equipped with two synchronous output channels, the control unit delivers waveforms at 2.8 MS/s sampling rate and 16-bit resolution, enabling highly detailed and accurate signal reproduction. Its analog input channels allow live data acquisition and real-time interaction with the test environment. Unlike traditional function generators, the AnyWave system provides virtually endless waveform streaming, thanks to its double buffer mode that eliminates memory limitations.

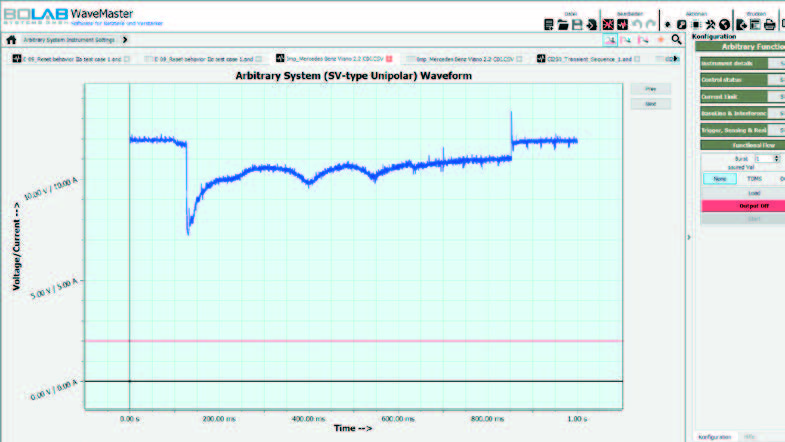

Integration with the BOLAB WaveMaster software ensures ease of use. Engineers can design waveforms graphically or with tabular input, import oscilloscope signals, or access an extensive database of pre-programmed standards including LV 124, LV 148, ISO 7637-2, ISO 16750-2, GMW, JLR, and VW protocols. This ensures immediate compatibility with major automotive and electronic compliance testing requirements.

For automated testing and advanced research, the system includes DLL libraries supporting Python, LabView, CANoe, MATLAB, C#, and C++, making it adaptable to diverse programming environments. Trigger inputs and outputs support real-time actions such as starting or synchronizing measurements, while its WYSIWYG waveform editor provides instant visualization of test signals.

Built for long-term reliability, the 400-6361 AnyWave Control Unit offers unmatched performance in transient immunity testing, low-frequency simulation, and power electronic verification, making it an essential tool for laboratories and manufacturers aiming for future-proof compliance solutions.

Technical Specifications

Model	Sampling Rate (Output)	Channels	Resolution	Input Sampling Rate	Bandwidth	Software	Standards Supported
400-6212	250 kS/s	2	16-bit	25 kS/s	Up to 300 kHz	WaveMaster	LV 124, LV 148, ISO, GMW, JLR
400-6361	2.8 MS/s	2	16-bit	300 kS/s	Up to 300 kHz	WaveMaster	LV 124, LV 148, ISO, GMW, JLR
