Performance Redefined with 8300 Series Power Amplifiers
The 8300 Series Power Amplifiers by AE Techron offer a revolutionary blend of switch-mode efficiency and linear amplifier precision—delivering robust, stable power output across a wide range of high-demand applications. With power ratings from 2 kW to 10 kW, and surge capabilities up to 50 kVA, this series is optimized for engineers, EMC test labs, and automotive or military electronics requiring tight control, reliability, and responsiveness.
Wide Bandwidth and Ultra-Low Distortion
What sets the 8300 Series apart is its 1 MHz switching frequency, enabling an extended DC to 50 kHz bandwidth and minimizing output ripple noise to under 2 Vp. With THD under 0.2% and slew rates up to 60 V/µs, the amplifier maintains signal integrity even under fast transient demands. Whether testing capacitors, simulating DC dropouts, or powering inductive loads, the 8300 series responds with speed and accuracy.
High Current Output and Reactive Load Handling
These amplifiers are built for high-current, complex loads—supporting up to 425A continuous current and up to 5x the rated power when driving reactive elements. The internal architecture allows energy recovery, making the 8300 Series ideal for short bursts and repetitive transients found in ISO 61000, MIL-PRF, or aviation EMC tests.
Model Comparison Table
Here’s a quick look at common 8300 Series configurations:
| Model | Power Output | Max Voltage (VRMS) | Max Current (ARMS) | Surge Capability (kVA) | Bandwidth |
| 8302 | 2 kW | 140 | 65 | Up to 10 | DC to 50 kHz |
| 8305 | 5 kW | 140 | 150 | Up to 25 | DC to 50 kHz |

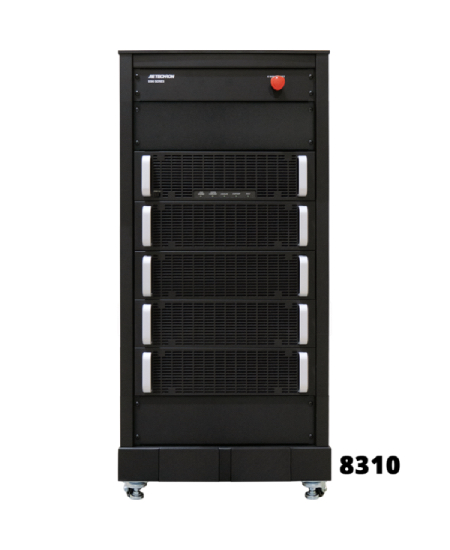

| 8310 | 10 kW | 140 | 300 | Up to 50 | DC to 50 kHz |
This series allows users to choose the right model based on application needs, whether it’s moderate continuous loads or high transient surges.
Configuration Flexibility for Any Application
With configurable settings on the back panel, users can adjust gain (0–40), output impedance (0–1 ohm), input type (balanced/unbalanced), DC blocking, servo mode, and current limits—ensuring fine-tuned compatibility with sensitive or demanding devices under test. The 8300 supports voltage or current source modes, AC-only, DC-only, or combined waveforms.
Compact, Scalable, and Efficient
Available in 3U bench-top or rack-mounted models, the 8300 Series amplifiers are compact yet deliver up to 85% power efficiency. Their smart cooling system, protective circuitry (over-voltage, over-current, over-temp), and high-performance filtering ensure long-term stability and reliability in intensive testing environments.
Built for a Wide Range of Use Cases
From automotive DC dropout simulations to MIL-STD capacitor charging, reactive power loads, and industrial EMC compliance, the 8300 Series is the go-to amplifier for engineers who require power without compromise.
