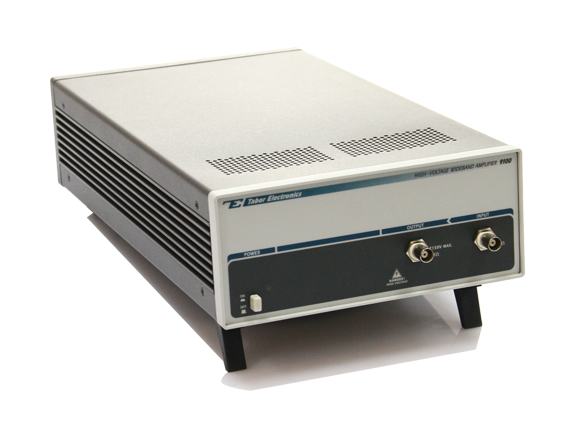

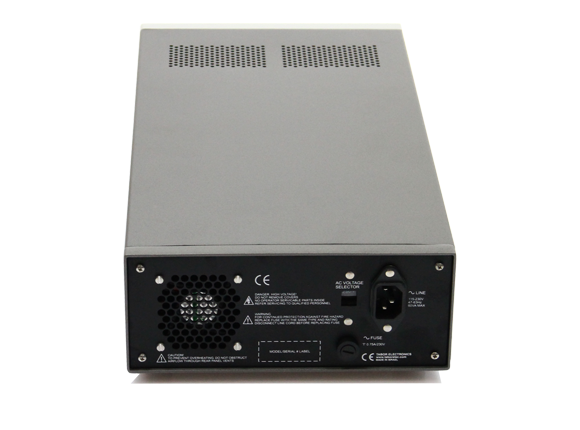

9100 Signal Amplifier
The 9100 Signal Amplifier is a versatile high-voltage amplifier from Tabor Electronics engineered to deliver precise, high-fidelity signal amplification across a wide frequency range. Designed for both single and dual-channel operation, the 9100 operates as an ideal buffer for waveform, function, or pulse generators, enhancing signal amplitude from typical generator outputs of 20Vp-p to a robust 300Vp-p.
Exceptional Performance and Signal Integrity
With a full-power bandwidth extending from DC to over 500 kHz, the 9100 amplifier ensures minimal distortion and superior signal integrity, even at maximum output levels. The high slew rate of 200 V/µs supports rapid voltage transitions, making it suitable for demanding applications requiring accurate waveform reproduction. Its output can drive small capacitive or inductive loads without performance degradation, while resistive loads are recommended for maximum speed performance.
Flexible and Safe Design
The 9100 features floating input and output connectors, allowing the amplifier to operate independently of ground potential up to 250 VDC. Users can easily switch between floating and grounded configurations via an accessible jumper, offering flexibility for various laboratory and industrial setups. Its compact 2U half-rack chassis allows convenient stacking on Tabor signal generators or integration into a standard 19-inch rack using optional mounting kits.
Applications and Cost-Effectiveness
This amplifier is ideal for high-voltage, wide-bandwidth applications, including multi-tone testing, receiver testing, and general electronics research. Its cost-effective design provides a high-performance solution without compromising signal fidelity, making it suitable for both laboratory and field use. The 9100 ensures reliable performance while boosting signal amplitude, complementing Tabor’s signal generators or any other compatible source.
Technical Specifications
| Specification | Details |
| Model | 9100-15-G |
| Type | Single-Channel Signal Amplifier |
| Voltage Output | 300Vp-p (±150V) |
| Output Current | ±150 mA |
| Full Power Bandwidth | DC to >500 kHz |
| Slew Rate | 200 V/µs |
| Distortion | Low |
| Gain | Fixed x15 (customizable x10–x20) |
| Signal Ground | Grounded or Floating |
| Size | 2U, half-rack, 19″ compatible |
| Mounting Options | S-Rack, D-Rack, Case Kit |
| Applications | High-voltage waveform, function, pulse amplification, RF testing |
| Weight | Lightweight, bench-top or rack-mountable |
| Key Benefits | High-fidelity, wide bandwidth, high voltage, flexible grounding |
