Description
9100A Signal Amplifier
The 9100A Signal Amplifier is a high-precision, high-voltage amplifier from Tabor Electronics designed for laboratory, industrial, and scientific applications that demand clean, wide-bandwidth signal amplification. With a voltage output up to 400Vp-p (±200V) and a current rating of 125 mA, the 9100A amplifies signals from waveform, pulse, or function generators with minimal distortion and exceptional fidelity.
Wide Bandwidth and Fast Response

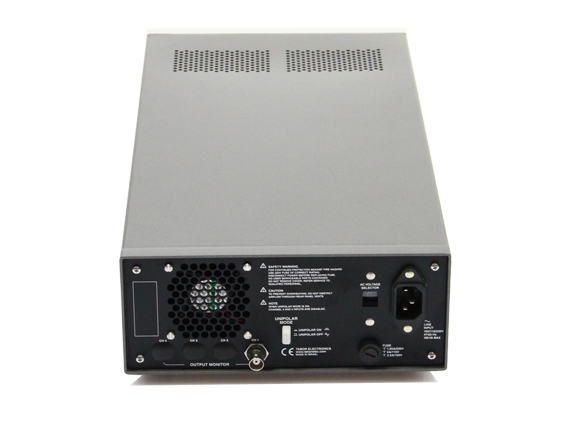

This amplifier offers a full power bandwidth from DC to over 500 kHz, combined with an impressive slew rate of 400 V/µs. It allows rapid signal transitions without compromising amplitude or signal integrity. The rear-panel monitor output provides a 1:100 scaled signal for safe monitoring using low-voltage instruments, enabling precise observation of high-voltage outputs in real time.
Compact and Versatile Design
The 9100A is engineered in a compact single-channel 2U form factor, ideal for bench-top use or mounting in a standard 19″ rack alongside Tabor waveform generators. Its stackable design saves space while providing flexible integration options. The amplifier can drive capacitive loads up to 1 nF, maintaining high performance and full amplitude range.
Safety and Reliability
Safety is integral to the 9100A’s design. The high-voltage path is controlled by a mechanical switch and a safety latch, preventing accidental application of high power. A front-panel red light indicates when the high voltage is active. In emergencies, the safety latch immediately disconnects the output power, providing peace of mind in critical testing environments.
Applications
The 9100A is ideal for high-voltage waveform amplification, pulse testing, multi-tone signal applications, and general electronics research. Its precision, wide bandwidth, and safety features make it a reliable and cost-effective solution for a wide range of laboratory and industrial tasks.
Technical Specifications
| Specification | Details |
| Model | 9100A-50 |
| Type | Single-Channel Signal Amplifier |
| Voltage Output | 400Vp-p (±200V) |
| Output Current | 125 mA |
| Full Power Bandwidth | DC to >500 kHz |
| Slew Rate | 400 V/µs |
| Monitor Output | 1:100 scaled output for safe monitoring |
| Signal Channel | Single |
| Gain | Fixed x50 (custom gain available) |
| Size | Compact 2U, half-rack, 19″ compatible |
| Safety | Mechanical switch and safety latch with front-panel indicator |
| Mounting Options | S-Rack, D-Rack, Case Kit |
| Applications | High-voltage waveform, pulse, function generator amplification |
| Key Benefits | High-voltage, wide bandwidth, precise, safe, and compact design |
