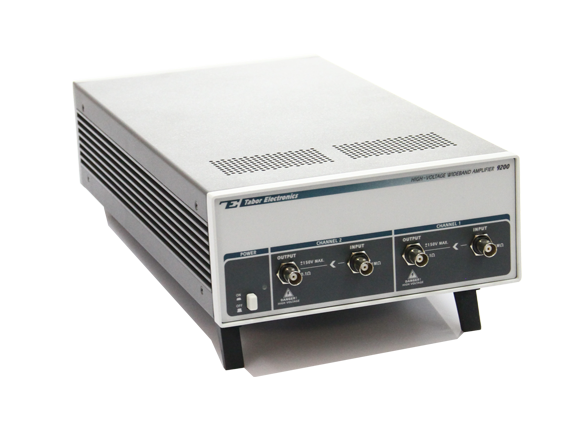

9200 Dual Amplifier
The 9200 Dual Amplifier is a high-precision, dual-channel amplifier from Tabor Electronics that delivers clean, high-voltage amplification for a wide variety of laboratory, industrial, and scientific applications. Its compact 2U half-rack design allows flexible bench-top placement or standard 19″ rack mounting, making it ideal for waveform, pulse, and function generator setups.
High Voltage, Wide Bandwidth Performance
The 9200 Dual Amplifier outputs up to 300Vp-p per channel (±150V) and can drive currents up to 100 mA per channel. Its full power bandwidth spans from DC to over 500 kHz, while a slew rate of 200 V/µs ensures rapid, distortion-free signal transitions. This makes it suitable for high-speed testing and demanding signal amplification tasks.
Dual-Channel Versatility
With dual channels, the 9200 allows simultaneous amplification of multiple signals, ideal for complex multi-tone or synchronized waveform applications. Each channel can handle capacitive loads up to 100pF and inductive loads up to 0.5 mH without affecting performance, providing flexibility in a wide range of testing scenarios.
Floating Ground and Safety Features
The amplifier’s floating input and output connectors allow flotation from ground level up to 250 VDC, ensuring safe operation and easy integration with other lab equipment. Grounding can be configured via a simple jumper connection, giving users complete flexibility.
Cost-Effective, Compact Design
Despite its advanced capabilities, the 9200 Dual Amplifier is designed for cost-effectiveness and space efficiency. Its stackable, half-rack 2U chassis saves valuable lab or rack space without compromising performance or signal fidelity.
Applications
The 9200 Dual Amplifier is ideal for high-voltage waveform amplification, pulse testing, multi-tone signal generation, and general electronics research. Its precision, reliability, and compact design make it a must-have tool for laboratory and industrial applications requiring high-quality signal amplification.
Technical Specifications
| Specification | Details |
| Model | 9200-15-G |
| Type | Dual-Channel Signal Amplifier |
| Voltage Output | 300Vp-p (±150V) per channel |
| Output Current | 100 mA per channel |
| Full Power Bandwidth | DC to >500 kHz |
| Slew Rate | 200 V/µs |
| Signal Distortion | Low |
| Gain | Fixed x15 (custom gain x10–x20 available) |
| Signal Ground | Grounded or Floating |
| Size | 2U, half-rack, bench-top compatible |
| Mounting Options | S-Rack, D-Rack, Professional Case Kit |
| Target Applications | Waveform, pulse, and function generator amplification |
| Key Benefits | High-voltage, dual-channel, precise, low distortion, flexible grounding, cost-effective |
