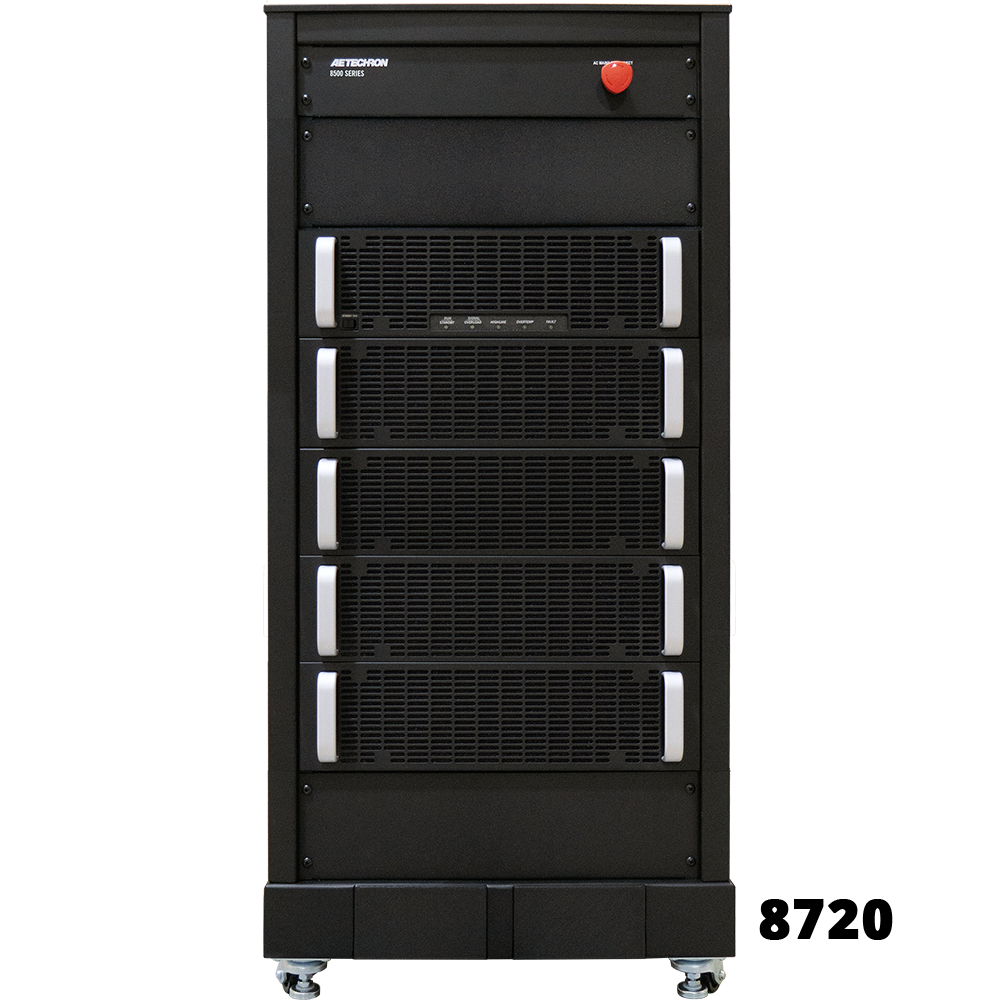

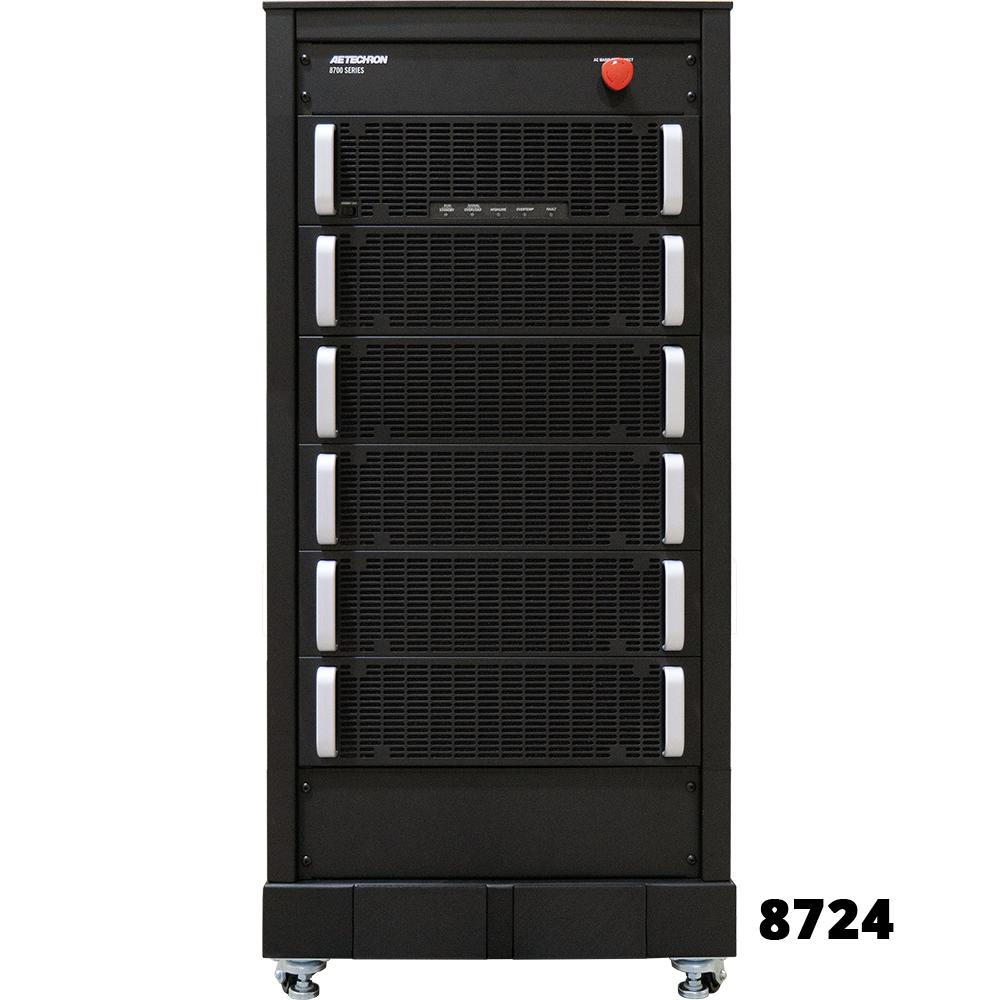

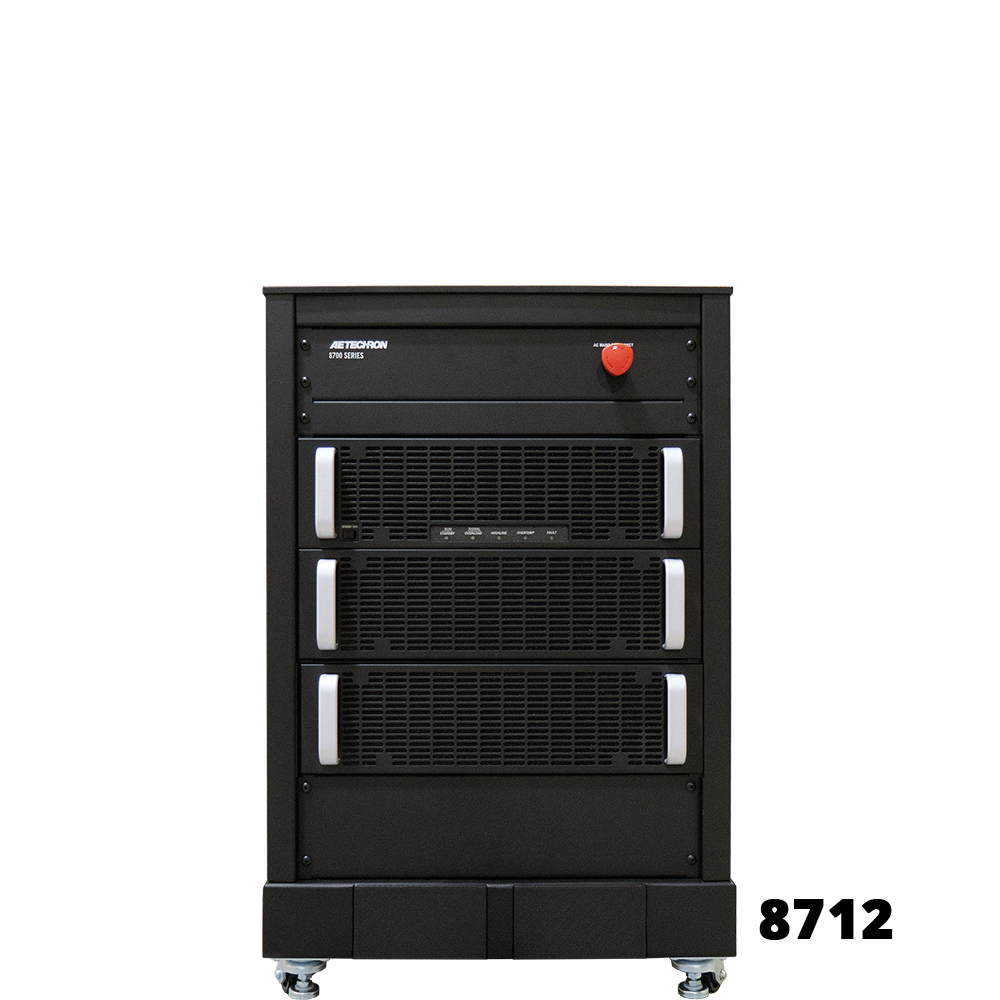

AE Techron 8700 Series Power Amplifier: Scalable High-Performance Solution
The AE Techron 8700 Series is a cutting-edge power amplifier line engineered for professionals requiring high voltage, high current, and wide bandwidth capabilities in one unit. Available in power levels from 4 kW to 24 kW and scalable up to 120 kVA, these single- and three-phase amplifiers are perfectly suited for both industrial and research applications.
Built with a unique hybrid approach that merges the low-noise and precision of linear amplifiers with the efficiency and compactness of switch-mode systems, the 8700 Series delivers exceptional performance even under the most demanding conditions. With a switching frequency of 1 MHz, it achieves an impressive bandwidth of DC to 250 kHz, setting it apart in its class.
Optimized for Dynamic Loads and Real-World Conditions
Whether you’re powering a resistive load continuously or managing transient waveforms in reactive environments, the 8700 Series offers unmatched adaptability. The system can output surge levels up to 2.5X its rated power and recover returned energy to deliver apparent power up to 4X its continuous rating.
Advanced Configuration & Protection Features
All major configuration settings are easily accessible from the rear panel, including adjustable gain (0–40), output impedance (0–1 ohm), and current limit controls. It supports both voltage and current source modes and is equipped with over-voltage, over-temperature, and over-current protection systems for worry-free operation.
Model Capabilities Overview
| Power Output | Continuous Current | Max Voltage | Max Frequency |
|---|---|---|---|
| 4 – 24 kW | Up to 360 ARMS | ±400 Vp | Up to 250 kHz |
Applications:
- EMC conducted immunity testing
- MIL-PRF capacitor evaluations
- Automotive dropout simulations
- Variable AC source for ISO 61000 & aviation compliance
The AE Techron 8700 Series delivers flexible performance, precise waveform reproduction, and unmatched durability. Its sleek form factor, high power density, and outstanding thermal control make it the amplifier of choice for mission-critical environments.
