Hioki MEMORY HiCORDER MR6000

  • High-speed 200 MS/s isolated testing (with High Speed Analog Unit U8976Ax8)
  • Simultaneously measure up to 32 analog channels (with 4ch Analog Unit U8975x8)
  • Real-time saving of data of all 32 ch at 1 MS/s (with SSD Unit U8332)
  • Highly-responsive touchscreen
  • Memory Concierge: Easily search for the waveform you want to see with the waveform search function
  • Faster save times (1/10th the time required by legacy models)
  • Real-time digital filter calculation

Model No. (Order Code)

MR6000 Main unit only, input modules up to 8 units
MR6000-01 Built-in real-time waveform calculation and other functionality

Note: Main unit MR6000/MR6000-01 cannot operate alone. You must install one or more optional input modules in the unit.

Guarantee3years LAN  USB2 SDCE
REQUEST A QUOTE



Description

Hioki MEMORY HiCORDER MR6000

The MR6000 overcomes all barriers to reach new ground and meet challenges that are yet to be seen. World class specifications, operability and design – Hioki’s newest memory recorder has been re-engineered from top to bottom, delivering unprecedented performance that will change how you look at waveform recording.

Key Features

  • High-speed 200 MS/s isolated testing (with High Speed Analog Unit U8976Ax8)
  • Simultaneously measure up to 32 analog channels (with 4ch Analog Unit U8975x8)
  • Real-time saving of data of all 32 ch at 1 MS/s (with SSD Unit U8332)
  • Highly-responsive touchscreen
  • Memory Concierge: Easily search for the waveform you want to see with the waveform search function
  • Faster save times (1/10th the time required by legacy models)
  • Real-time digital filter calculation

Hioki MR6000 Memory HiCorder – Change the Way You Measure, Record and Analyze

The new flagship memory recorder MR6000 from HIOKI delivers 200MS/s sampling, touchscreen operability, and advances functions to help you find the waveform you need quickly out of overwhelming amounts of data.

High-speed isolated measurement at 200 MS/s

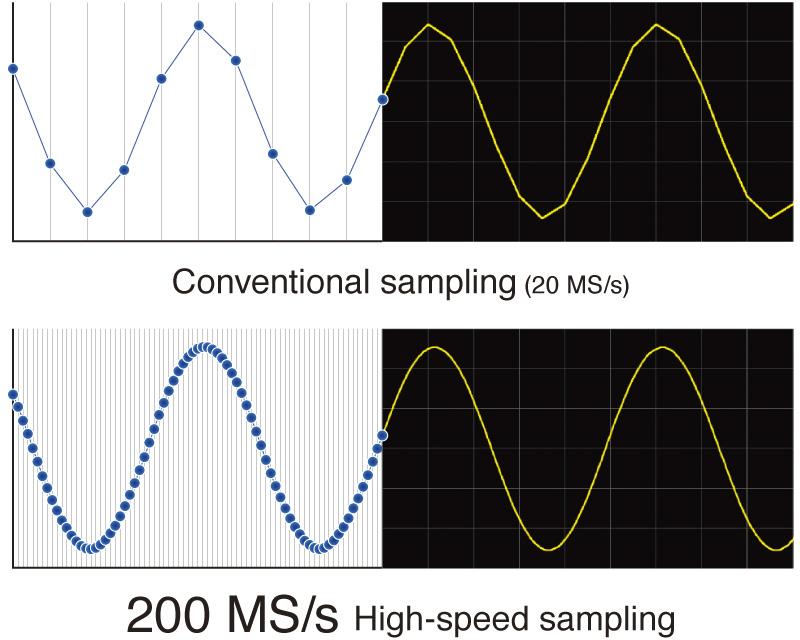

Blazing fast, never-fail sampling. The HIGH SPEED ANALOG UNIT U8976 boasts the highest sampling rate in its entire series, an order of magnitude faster than conventional models, enabling the unit to perform isolated measurement at 200 MS/s.

Hioki Memory HiCorder MR6000: 32 Times Faster Data Transfer Speed Than Before

The new Hioki MR6000 Memory HiCorder is engineered with a brand new interface that delivers a data transfer speed to external media that is as fast as 32 times the previous model. With this capability, the time it takes to save measured waveforms to external media is dramatically reduced, boosting test efficiency. In addition, while legacy recorders only allowed users to transfer 1 channel of data measured at 1MS/s, the MR6000 can transfer 32 channels of data all at the same time. (Data transfer speeds may differ depending on actual measurement conditions.)

Completely isolated input

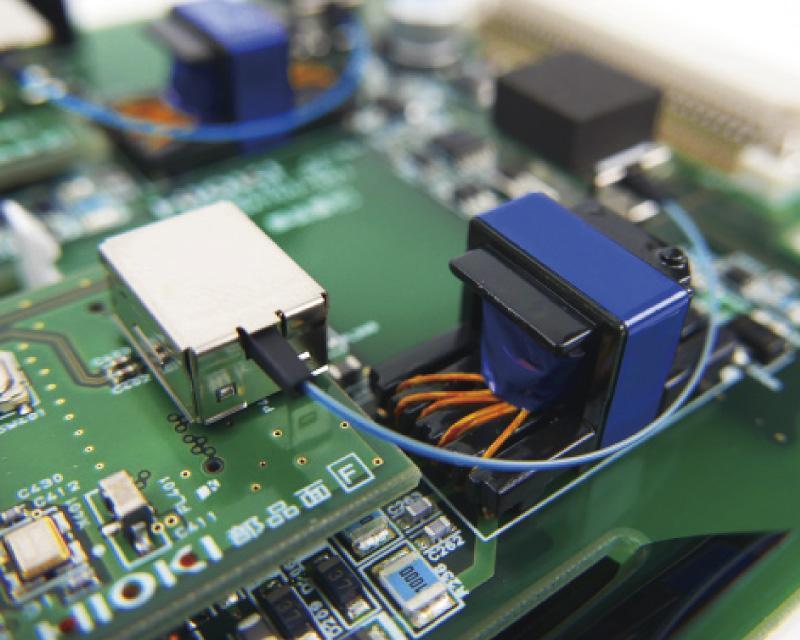

Connections between analog input channels, and between the input channel and the main unit, are fully isolated. This means that, unlike an oscilloscope,measurements can be made without concern with negative effects from potential differences. << optical isolation devices (HIGH SPEED ANALOG UNIT U8976)



Hioki Memory HiCorder MR6000: 32 Times Faster Data Transfer Speed Than Before

The new Hioki MR6000 Memory HiCorder is engineered with a brand new interface that delivers a data transfer speed to external media that is as fast as 32 times the previous model. With this capability, the time it takes to save measured waveforms to external media is dramatically reduced, boosting test efficiency. In addition, while legacy recorders only allowed users to transfer 1 channel of data measured at 1MS/s, the MR6000 can transfer 32 channels of data all at the same time. (Data transfer speeds may differ depending on actual measurement conditions.)

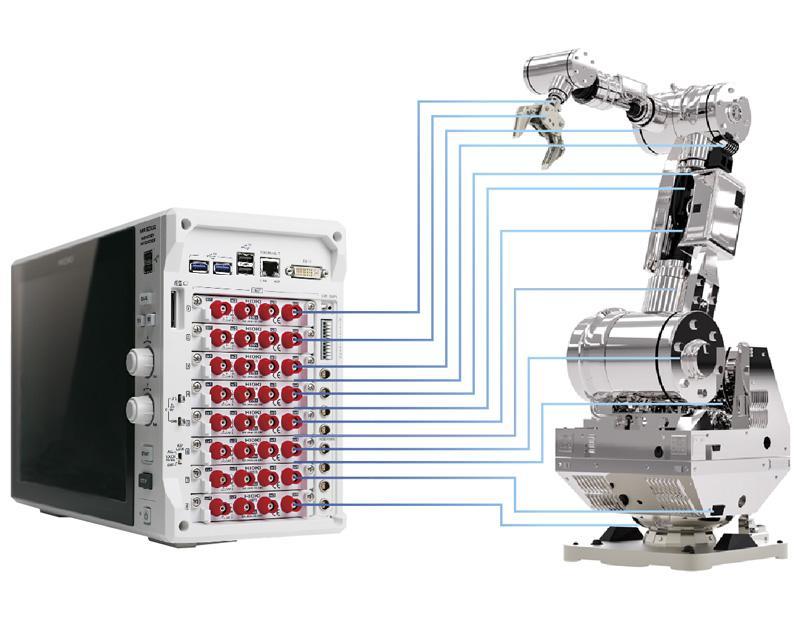

Simultaneous measurement of multiple locations in across channels

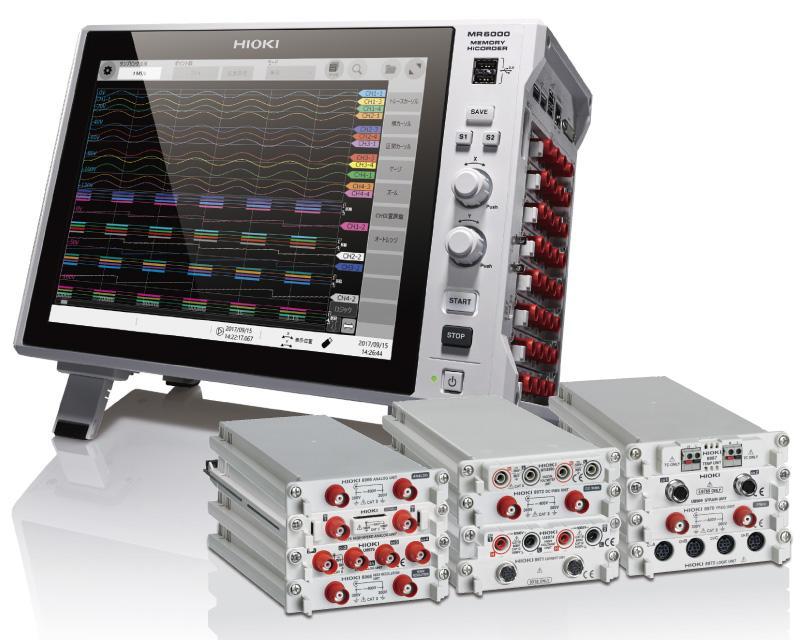

Combine multiple modules of the 4ch ANALOG UNIT U8975, which provides 4 channels of input with a speed of 5 MS/s at 16 bits, to perform multi-channel measurements up to 32 channels.

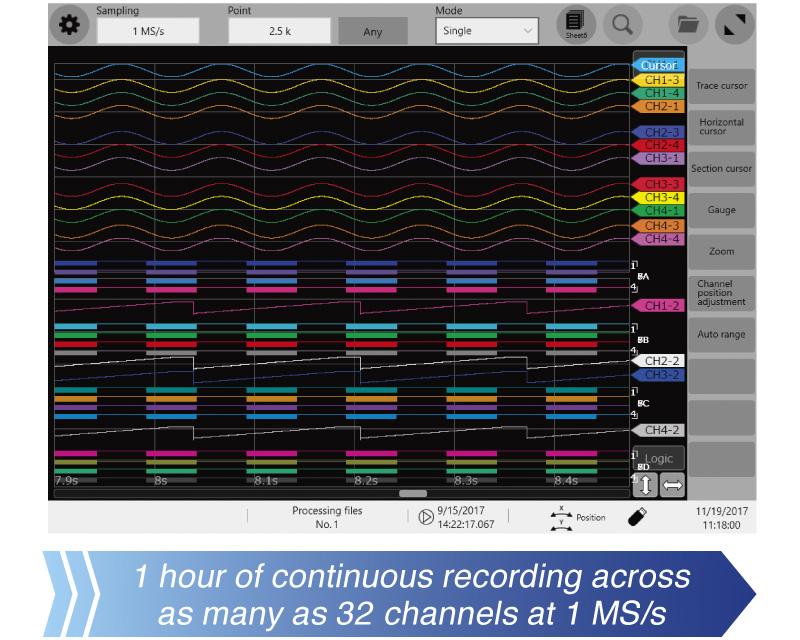

Long-term recording and high-speed sampling across multiple channels

1 hour of continuous recording across as many as 32 channels at 1 MS/s. (Real-time saving function and when using optional SSD unit U8332) .

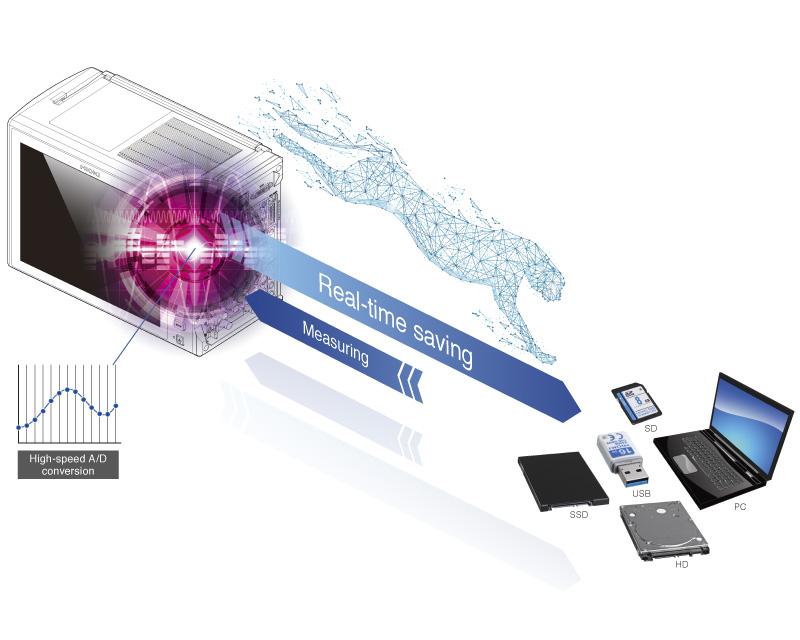

Outstanding real-time save function that saves data during measurement

Faster internal processing allows data to be saved to external media in real time during measurement. In addition, the MR6000 features a brand new interface that makes data transfer up to 32 times faster.

Radically improved data saving time

Avoid the need to wait to transfer very large amounts of data measured over a long period of time. The MR6000 features a brand new interface and faster internal processing, reducing the time required to save measurement data to media. This saves you the trouble of waiting for data to be saved and improves work efficiency.

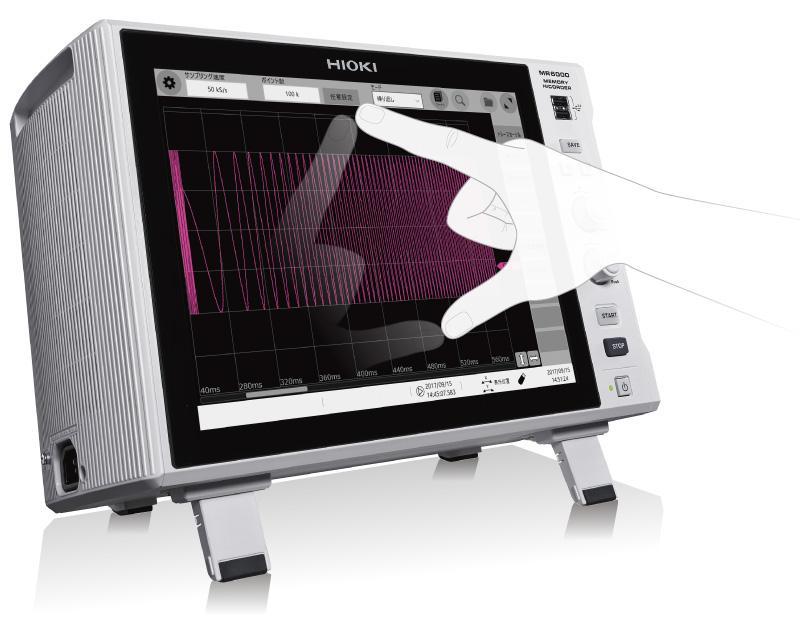

Fast and convenient touch screen

The capacitive touch screen delivers intuitive operability. Select a setting item directly by tapping the screen, and use your fingers to enlarge the part you want to see. The new user interface makes setting measurement items for multiple channels easier compared to the more complicated conventional models where you had to press the keys several times to configure a setting.

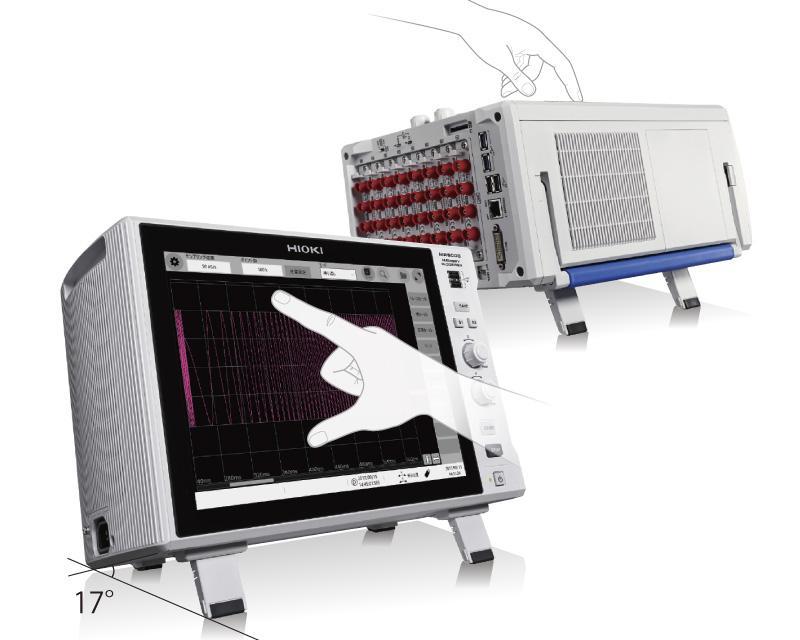

Ergonomical operating angle

Our search for a touch screen with the best operability and visibility angle led us to develop retractable feet that maximize those two important attributes. Tilting the MR6000 with the feet reduces the strain on your wrists when you use the device on a desk, and keeps your line of sight at a natural level. The rear side also features the same retractable feet, making is easy to use the device on the floor.

Compared to conventional models, 1/2 size

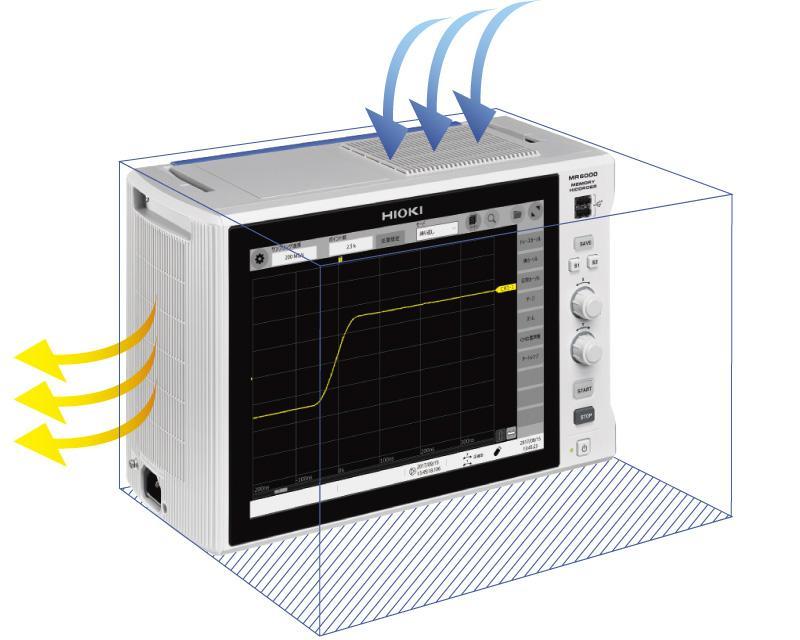

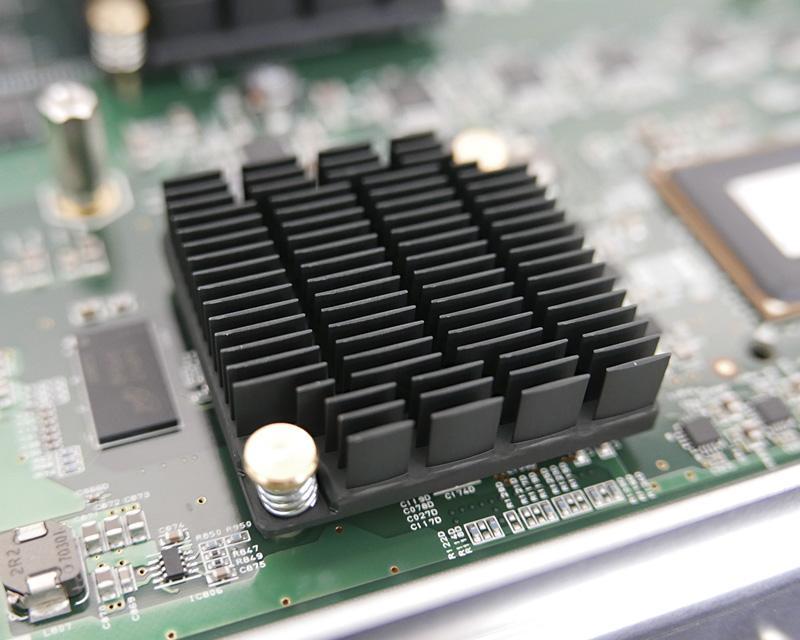

We have achieved a design that is compact while still delivering blazing fast processing speeds by using thermal liquid analysis to optimally position the air inlets, heating components, and cooling fans. The smaller form factor requires less space for installation, making the device just right for tight workspaces. * When compared to the legacy Hioki Model 8861-50.

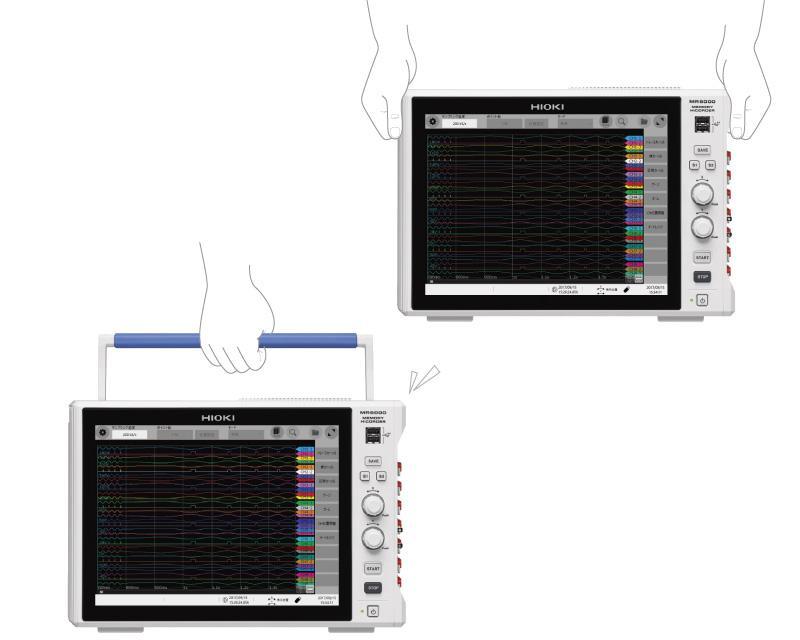

Easy handling

The rubber handle boasts excellent grip and makes it easy to carry the device with either one or both hands. The grips on either side of the device can also be used to lift it with both hands. Simple protectors on the top and bottom right side of the device protect the interface and unit input terminals from sudden physical shocks.

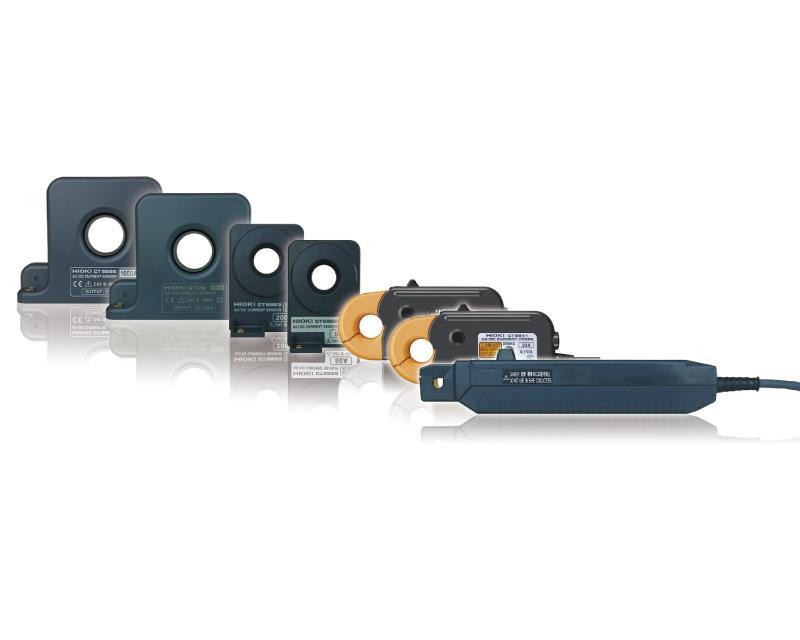

Compatible with high-precision sensors for measuring large currents

The sensing technology that serves as the inlet for measurement data is essential for detecting various phenomena in multiple channels. The MR6000 is a high-spec model that fully utilizes the capacity of Hioki’s high-precision sensors. Furthermore, install the optional PROBE POWER UNIT Z5021 to drive these probes from the MR6000 main unit.

aving data directly to your PC

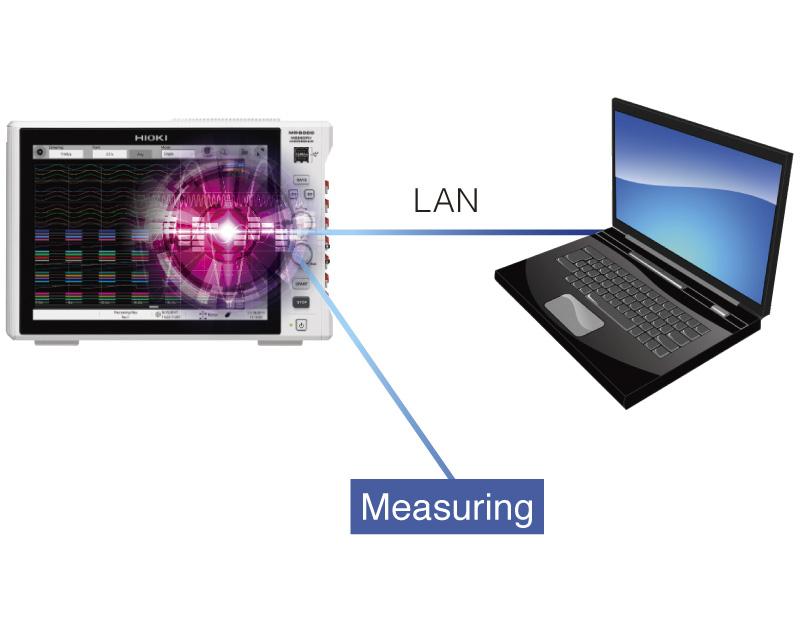

Transfer measurement data directly to your PC by using the FTP sending function together with the real-time save function. This makes it easier to observe data after the measuring process.

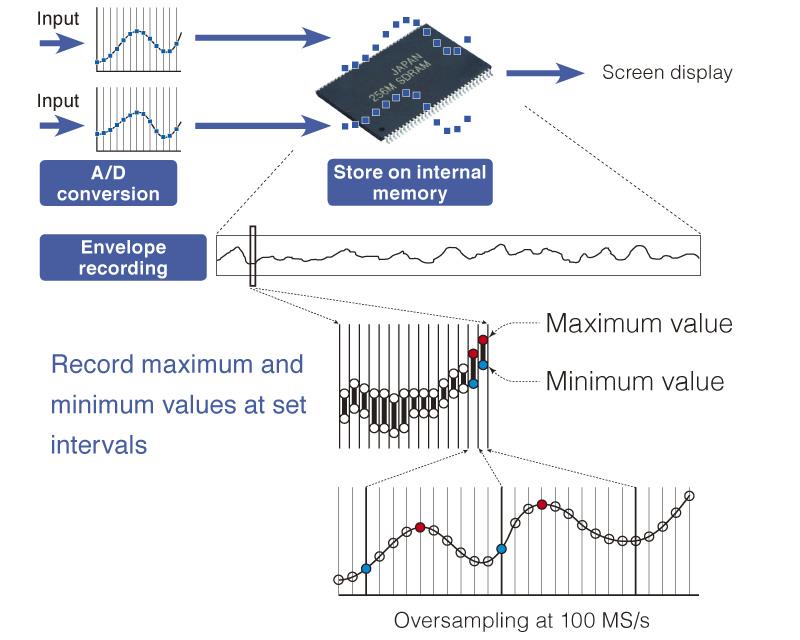

Observe long-term fluctuations without any sampling rate losses

The system uses the envelope measurement method to record maximum and minimum values at set intervals while performing oversampling at 100 MS/s. The internal memory has a capacity of 1 G-words, which ensures that the measuring process continues for a long time without any data losses. Save data in real time while measuring.

Test ECUs, inverters and motors

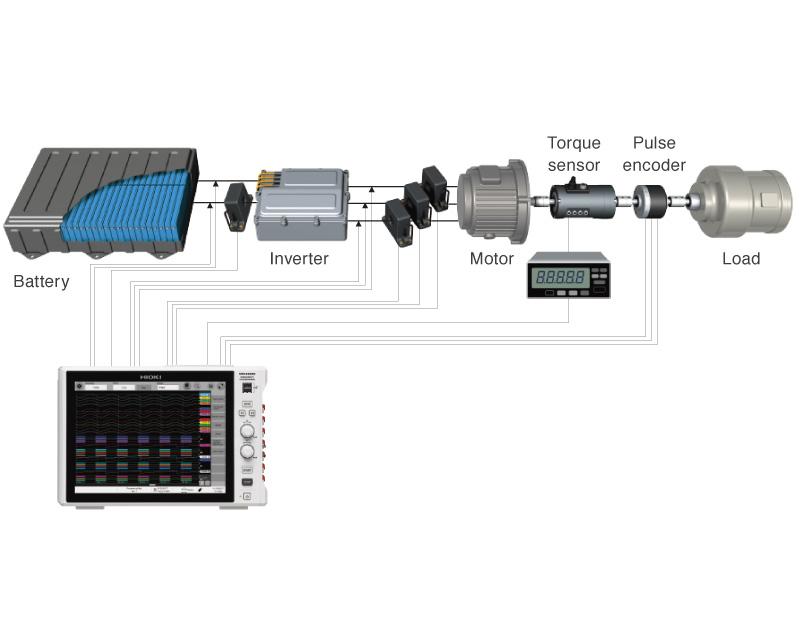

Combine the CURRENT UNIT 8971 and a current probe or current sensor designed and manufactured by Hioki to use the system within a wide temperature range or measure large currents with a high level of precision at solar power plants or development sites for EVs/HEVs. The convenient, built-in sensor identification function lets you simply connect the sensor to easily configure the scaling settings through automatic recognition. Combine the HIGH SPEED ANALOG UNIT U8976 and a Hioki current probe or clamp-on probe for high-precision wideband observation of current waveforms.

Calculate measurement data during measurement : Real-time waveform processing

The MR6000-01 features powerful optional equipment for real-time waveform processing. This function performs the four arithmetic operations (addition, subtraction, multiplication, and division), differentiation calculations, or integration calculations during the measuring process. This lets you use waveforms to check the calculation results while measuring. The equipment also saves and computes the calculation results numerically after the measuring process.

Observe clear waveforms without noise : Digital filter calculation

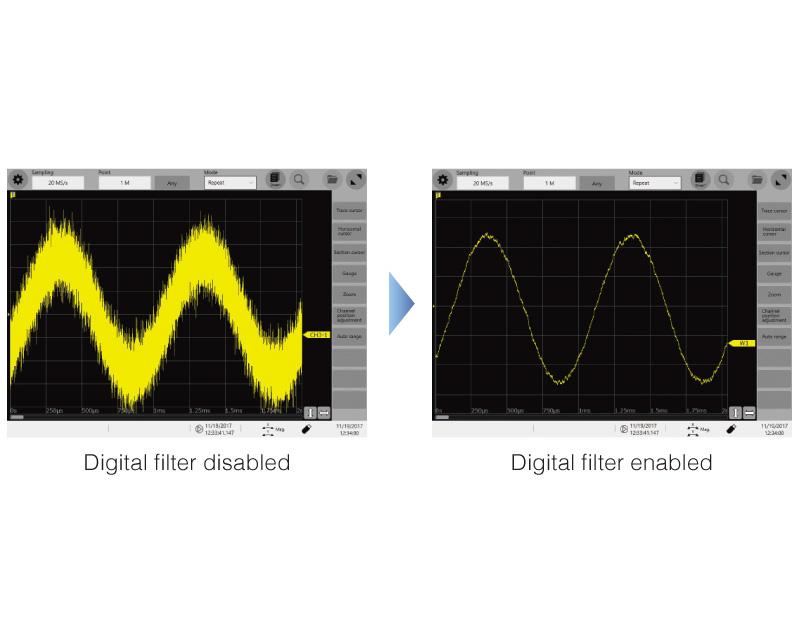

This function removes harmonic noise or specific frequency noise from measurement data. Use it to eliminate the noise that cannot be resolved with the standard filter installed in the unit.

Specifications

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

MR6000                                                                                       MR6000-01
Additional function N/A                                                                                                Real-time waveform calculation, Digital Filter calculation
Number of input units Max. 8 units
Number of channels Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973)
Measurement ranges (20 div full-scale) 10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range
4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range
Max. allowable input 400 V DC (when using the U8976), 200 V DC (when using the U8975)
Frequency characteristics DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975)
Max. sampling rate 200 MS/s, all channnels simultaneously (when using the U8976)
External sampling: 10 MS/s
Recording methods 1 G-words
Removable storage SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1
FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI.
Display 12.1 inch XGA-TFT color LCD (1024 × 768 dots)
Power supply 12.1 inch XGA-TFT color LCD (1024 × 768 dots)
Dimensions and mass 353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only)
Accessories Power cord ×1, Quick start manual ×1, Precautions conserning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only)
