IM9110 SMD Test Fixture for Precision Measurement

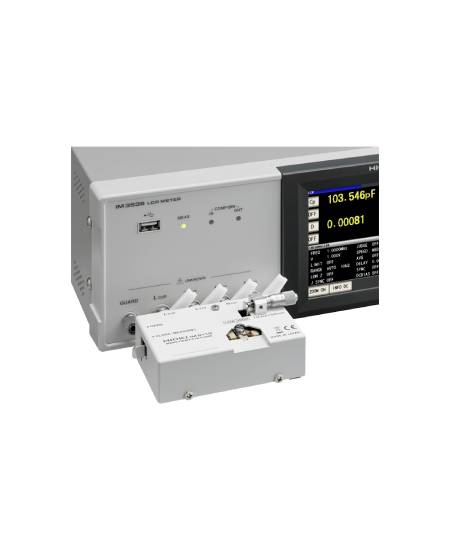

The IM9110 SMD Test Fixture is a purpose-built measurement accessory engineered to deliver consistent and accurate impedance measurements for ultra-small surface mount devices. Designed specifically for use with Hioki IM35xx series LCR meters and impedance analyzers, this fixture addresses the growing need for reliable testing of compact electronic components used in modern high-density circuit designs.
Ultra-small components can be difficult to handle and measure accurately due to instability and inconsistent contact. The IM9110 SMD Test Fixture solves this challenge with a built-in protective cover that keeps samples securely in place during measurement. This design prevents components from shifting or popping out, improving both safety and measurement reliability.
The fixture utilizes advanced contact technology that provides stable, two-terminal connections from opposite sides of the component. This configuration minimizes contact resistance and ensures highly reproducible measurement results, making the IM9110 suitable for quality control, R&D, and production testing environments.
With support for measurement frequencies from DC to 1 MHz, the IM9110 SMD Test Fixture is ideal for evaluating electrical characteristics such as capacitance, resistance, and inductance in ultra-small SMD components. It accommodates components measuring approximately 0.25 mm by 0.125 mm, classified under the EIA 008004 inch size category.
The fixture supports input voltages up to ±42 V peak and current levels up to 0.15 A rms, allowing safe and controlled testing across a range of applications. It is compatible with multiple Hioki instruments, including the IM3590, IM3570, IM3536, and several legacy models.
Included accessories such as short compensation fixtures and a cleaning brush help maintain measurement accuracy and prolong fixture life. Whether used in laboratory analysis or manufacturing inspection, the IM9110 SMD Test Fixture delivers precision, stability, and confidence when measuring ultra-small electronic components.
Technical Specifications Table
| Specification | Details |
| Product Name | IM9110 SMD Test Fixture |
| Connection Method | 2-terminal connection from opposite sides |
| Measurable Sample Size | 0.25 × 0.125 × 0.125 mm |
| EIA Size Category | 008004 inch |
| Measurement Frequency Range | DC to 1 MHz |
| Allowable Input Voltage | ±42 V peak (AC + DC) |
| Allowable Input Current | 0.15 A rms or ±0.15 A DC |
| Supported Instruments | IM3590, IM3570, IM3536, IM3533, IM3533-01, IM3523, 3506-10 |
| Legacy Compatibility | 3511-50, 3532-50, 3522-50 |
| Included Accessories | Instruction manual, short compensation fixtures, cleaning brush |
