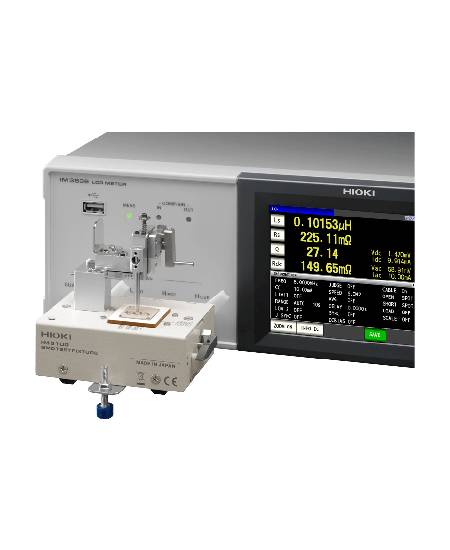

IM9100 SMD Test Fixture for High-Accuracy Measurements
The IM9100 SMD Test Fixture is engineered to deliver highly accurate and repeatable measurements for ultra-small surface mount devices used in advanced electronic designs. Built for four-wire direct connection testing, this fixture minimizes the effects of lead resistance and contact impedance, making it ideal for precision measurement applications.
Designed specifically for SMD components with electrodes on the bottom, the IM9100 provides stable electrical contact even when measuring compact components such as 01005, 0201, and 0402 sizes. Its four-terminal connection structure ensures accurate impedance measurement by separating current supply and voltage detection paths, which is essential for low-impedance and high-precision testing.
The IM9100 SMD Test Fixture supports measurement frequencies from DC up to 8 MHz, making it suitable for a wide range of electrical evaluations including resistance, capacitance, and inductance measurements. With an allowable input voltage of ±42 V peak and current capacity of up to 0.15 A rms, the fixture supports safe and controlled testing conditions in both laboratory and production environments.
Equipped with BNC terminals, the fixture offers stable and secure connections to compatible Hioki instruments. It supports multiple LCR meters and impedance analyzers from the IM35xx series, as well as several legacy models, allowing seamless integration into existing test setups.
Included short and open supplement jigs help ensure proper calibration and compensation, improving measurement accuracy across different component sizes. Since the IM9100 is a built-to-order product, customers can confirm specifications and delivery timelines with their authorized Hioki distributor to ensure the fixture meets their application needs.
Whether used for research and development, quality assurance, or manufacturing inspection, the IM9100 SMD Test Fixture provides the precision, stability, and reliability required for testing today’s smallest electronic components.
Technical Specifications Table
| Specification | Details |
| Product Name | IM9100 SMD Test Fixture |
| Connection Type | Four-wire direct connection |
| Measurement Terminals | Four-terminal type with BNC terminals |
| Measurable SMD Sizes | 0402 (01005), 0603 (0201), 1005 (0402) |
| Measurement Frequency Range | DC to 8 MHz |
| Allowable Input Voltage | ±42 V peak (AC + DC) |
| Allowable Input Current | 0.15 A rms or ±0.15 A DC |
| Supported Instruments | IM3590, IM3570, IM3536, IM3533, IM3523, 3506-10 |
| Legacy Compatibility | 3511-50, 3532-50, 3522-50 |
| Included Accessories | Instruction manual, short supplement jig, open supplement jigs |
| Build Type | Built-to-order |
