Description

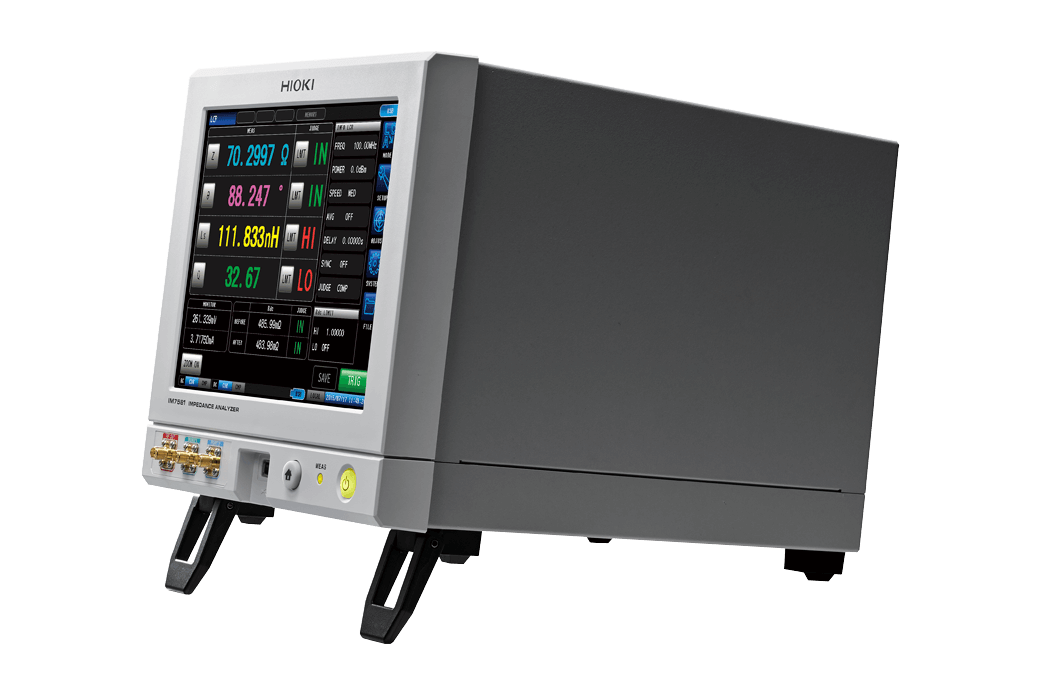

The Hioki Impedance Analyzer IM7581 is a high-speed, high-accuracy solution for measuring electronic components across a wide frequency range of 100 kHz to 300 MHz. Notably, with a top analog measurement time of just 0.5 ms, it’s optimized for high-volume production lines, particularly for testing ferrite chip beads and chip inductors.

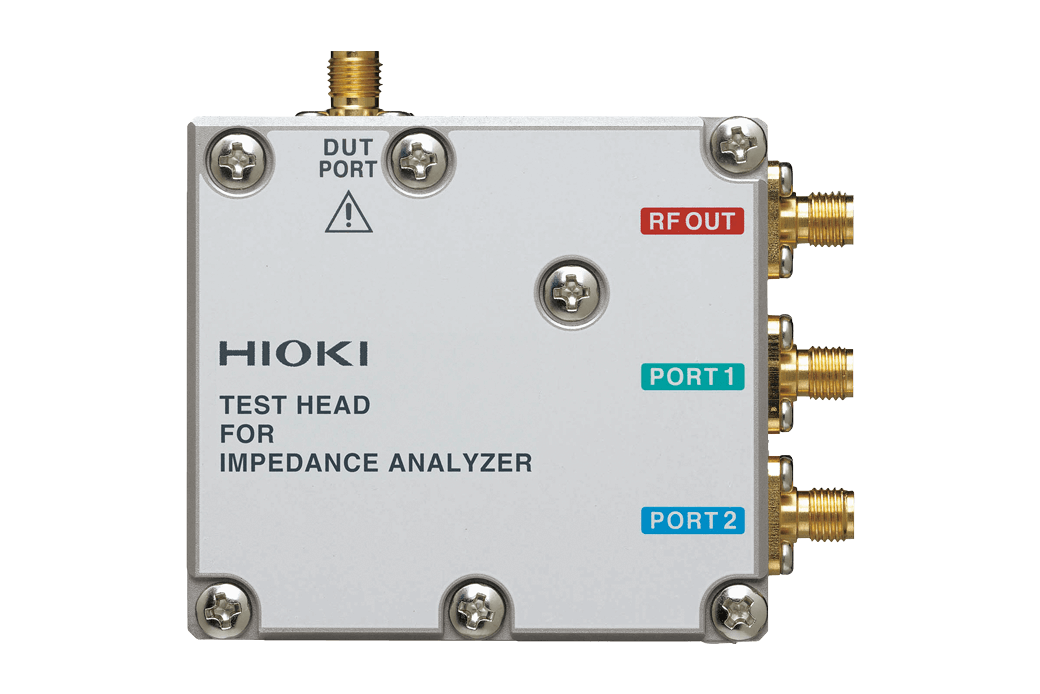

When paired with the IM9201 SMD Test Fixture, it supports precise, reliable measurements across six SMD sizes. Moreover, the compact half-rack design and palm-sized test head make it easy to integrate into production environments.
Among its key functions, the analyzer includes a Contact Check Function to ensure stable connections and a Comparator Function for automated PASS/FAIL judgments. In addition, the Analyzer Mode allows for detailed frequency, level, and time interval sweeps using the RF I-V method, thereby delivering consistent and repeatable results.
Basic specifications of Impedance Analyzer IM7581:
| Specifications | Details |
| Measurement modes | LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode |
| Measurement parameters | Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q |
| Measurable range | 100 mΩ to 5 kΩ |
| Display range | Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ) Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99) θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF) D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS) G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %) |
| Basic accuracy | Z: ±0.72 % rdg. θ: ±0.41° |
| Measurement frequency | 100.00 kHz to 300.00 MHz (5 digits resolution) |
| Measurement signal level | Power: -40.0 dBm to +7.0 dBm Voltage: 4 mV to 1001 mVrms Current: 0.09 mA to 20.02 mArms User-configured power, voltage, and current |
| Output impedance | 50 Ω |
| Display | 8.4-inch color TFT with touch screen |
| Measurement speeds *1 | FAST: 0.5 ms / MED: 0.9 ms / SLOW: 2.1 ms / SLOW2: 3.7 ms *1 Analog measurement time |
| Functions | Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation |
| Interfaces | Handler, USB, LAN, GP-IB (optional), RS-232C (optional) |
| Power supply | 100 to 240 V AC, 50/60 Hz, 70 VA max. |
| Dimensions and mass | Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 268 mm (10.55 in) D, 6.5 kg (229.3 oz) Test head: 61 mm (2.40 in) W × 55 mm (2.17 in) H × 24 mm (0.94 in) D, 175 g (6.2 oz) |
| Included accessories | Test head ×1, Connection cable ×1, Power cord ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1 |
