Description
Experience the future of waveform measurement with the Memory HiCorder MR6000, a cutting-edge solution that transforms the way you measure, record, and analyze electrical signals. With completely re-engineered design, performance, and operability, the MR6000 sets a new standard for high-speed, high-resolution data acquisition.
Unrivaled Performance and Speed
The MR6000 features the High Speed Analog Unit U8976, offering isolated measurement at an unmatched 200 MS/s. Capture high-speed signal changes and momentary phenomena with precision. The system provides completely isolated inputs across channels and to the main unit, ensuring safe, interference-free measurement across up to 400 V DC direct input.
Efficient, Intelligent Data Handling
Save time with lightning-fast data processing and storage. Transfer times are reduced to just 1/30th of conventional systems. Long-term high-speed recording is made effortless using SSDs, USBs, or SD cards, with real-time save functions that eliminate dependence on internal memory.
Smart Display and Intuitive Operation

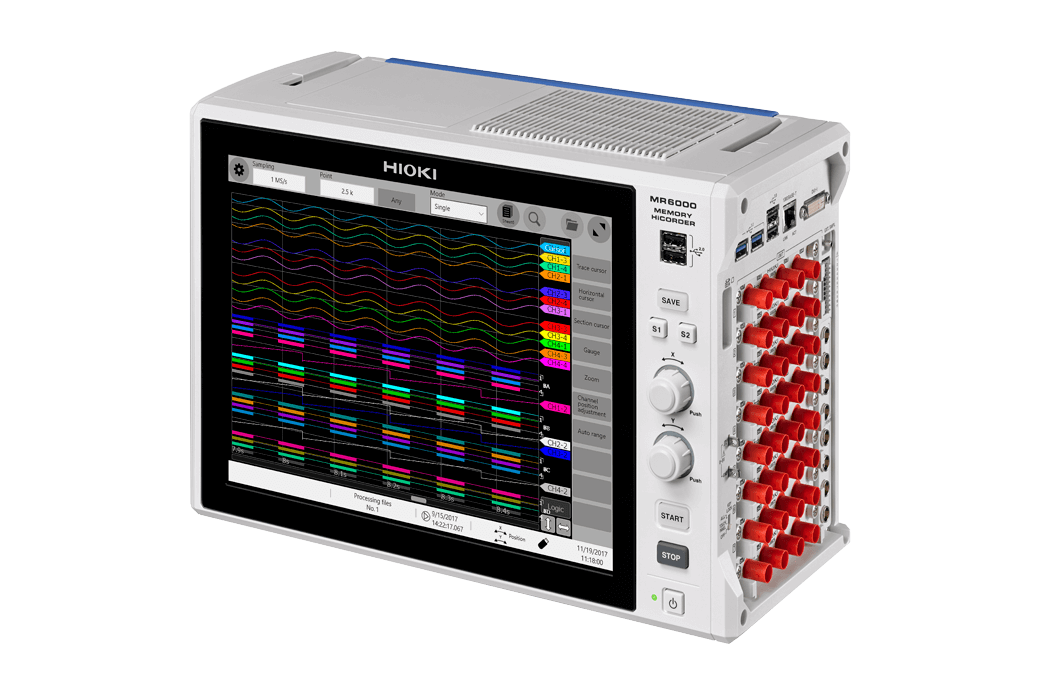

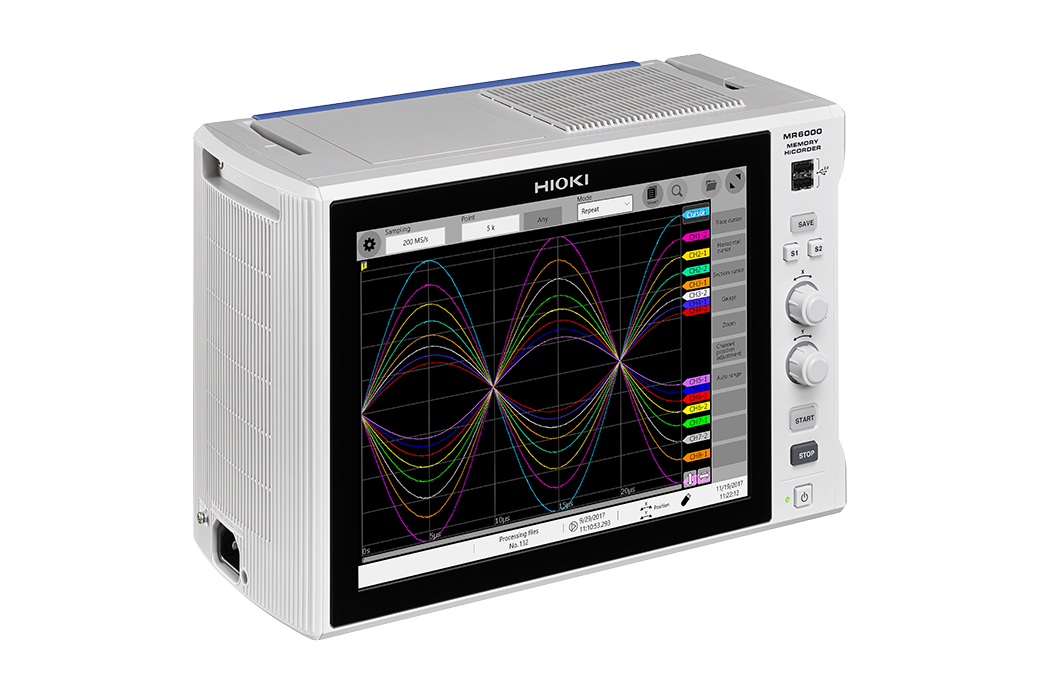

The 12.1-inch capacitive touch panel allows intuitive zooming and setting adjustments using simple gestures. Navigate large datasets easily with the Waveform Search function and Memory HiCorder Concierge, which identifies and highlights anomalies automatically.

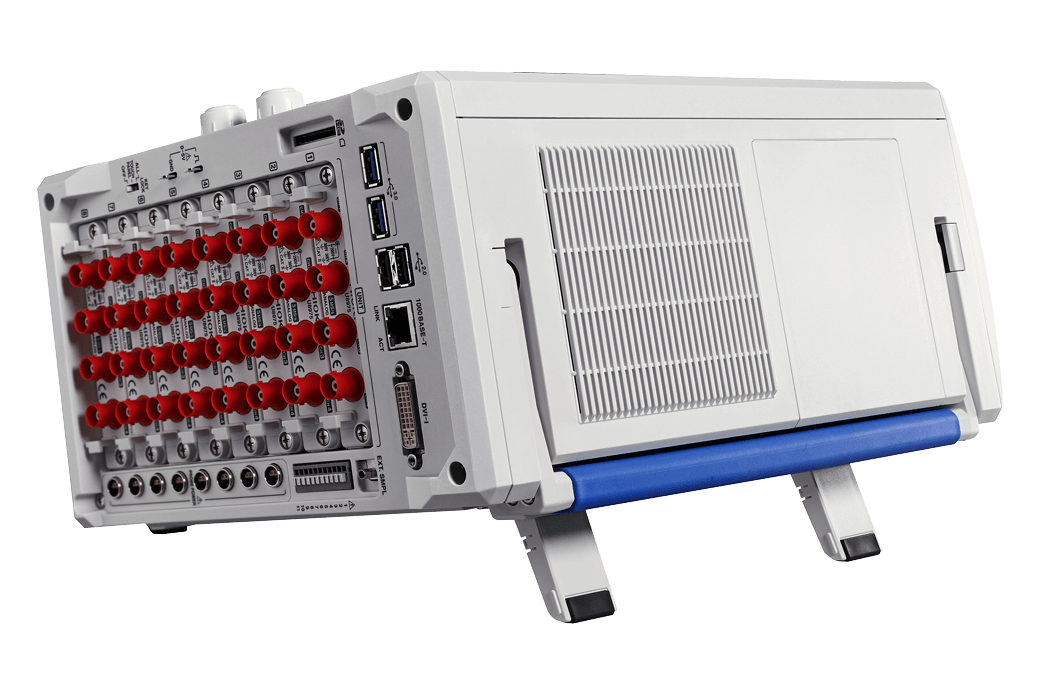

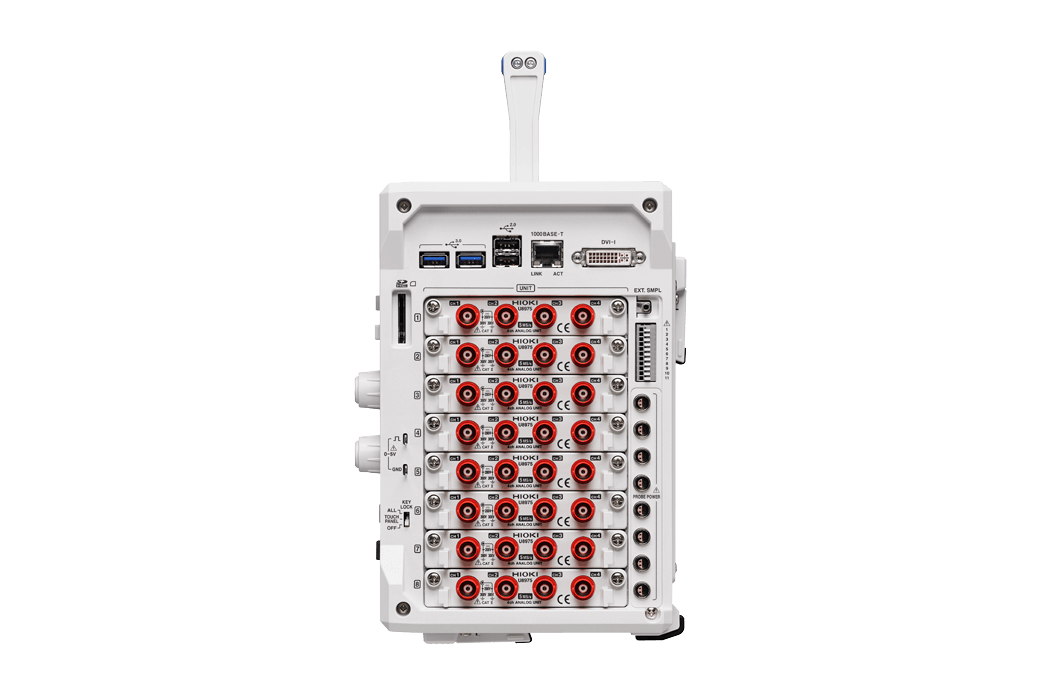

Modular Flexibility with a Broad Line of Units
Customize your measurement capabilities with a wide range of compatible units:
- High-Speed, High-Voltage, and High-Resolution Analog Units
- Temperature, Strain, and Frequency Units
- Digital Voltmeter and Current Units
- CAN/LIN Measurement Units and Logic Inputs (up to 128 channels)
- Arbitrary and Pulse Waveform Generator Units
Advanced Features for Diverse Applications
- Real-time waveform processing: Perform calculations during measurement including addition, subtraction, multiplication, integration, and differentiation.
- Dual sampling: Simultaneously record long-duration tests and high-speed anomalies without data loss.
- Envelope function: View long trends and fluctuations at high resolution using oversampling at 100 MS/s.
- Trigger functions: Detect voltage drops, glitches, or custom logic events.
- CAN, CAN FD, and LIN support: Capture and analyze automotive communication signals in sync with physical analog phenomena.
Power and Rotation Angle Measurement
With software version 4.01 and above, gain access to advanced capabilities:
- Monitor voltage, current, and power trends in real time or post-measurement.
- Perform cycle-by-cycle power analysis.
- Measure resolver or rotary encoder rotation angles to evaluate motor behavior.
High-Sensitivity Probes and Sensors
Current probes can detect as low as 100 μA, ideal for power consumption analysis of low-power devices. Clamp-type current sensors deliver high-accuracy measurements even in confined environments, such as vehicle engine compartments.
PC Software Integration
The MR6000 seamlessly connects with PC software:
- MR6000 Viewer: Load and analyze waveform data with full numerical and FFT capabilities.
- GENNECT One: Enable real-time observation and LAN-based remote control from your PC.
- Compatible with commercial tools like FlexPro, NI DIAdem, FAMOS, and OS-2000 for advanced reporting and analysis.
Award-Winning Design
Winner of the iF Design Award, Good Design Award, and Japan Manual Contest Excellence Award, the MR6000 is engineered with R&D and maintenance engineers in mind. Its ergonomic, user-friendly interface, intuitive display, and robust functionality make it the ultimate tool for modern waveform analysis.
Applications
- Power fluctuation measurement
- Motor torque and vibration analysis
- Dynamic motor characteristic measurement
- Resolver angle calculation
- Automotive communication and ECU signal analysis
Basic specifications of MEMORY HiCORDER MR6000:
| Specifications | Details | |||||
| MR6000 | MR6000-01 | |||||
| Additional function | N/A | Real-time waveform calculation, Digital Filter calculation. | ||||
| Number of input units | Max. 8 units | |||||
| Number of channels | Max. 32 analog channels (when using the U8975), or 128 logic channels (when using the 8973) | |||||
| Measurement ranges (20 div full-scale) | 10 mV to 400 V f.s., 12 ranges (when using the U8976), Resolution : 1/1600 of range 4 V to 200 V f.s., 6 ranges (when using the U8975), Resolution : 1/32000 of range |
|||||
| Max. allowable input | 1000 V DC / 700 V AC (when using the U8974), 200 V DC (when using the U8975), 400 V DC (when using the U8976) | |||||
| Frequency characteristics | DC to 30 MHz (when using the U8976), DC to 2 MHz (when using the U8975) | |||||
| Max. sampling rate | 200 MS/s, all channels simultaneously (when using the U8976) External sampling: 10 MS/s |
|||||
| Recording methods | Normal: Normal waveform recording Envelope: Record maximum and minimum values every fixed period |
|||||
| Storage memory capacity | 1 G-words | |||||
| Removable storage | SD memory card ×1, USB memory ×7, SSD/HDD (built in the main unit) ×1 FTP transmission (to LAN-connected computer) *Use only Storage Media sold by HIOKI. |
|||||
| Display | 12.1 inch XGA-TFT color LCD (1024 × 768 dots) | |||||
| External interfaces | LAN, USB, SD, SATA, Monitor output | |||||
| Power supply | 100 to 240 V AC (50/60 Hz) (300 VA max.) | |||||
| Dimensions and mass | 353 mm (13.9 in)W × 235 mm (9.25 in)H × 154.8 mm (6.09 in)D, 6.5 kg (229.3 oz) (main unit only) | |||||
| Included accessories | Power cord ×1, Quick start manual ×1, Precautions concerning use ×1, Application disk (CD-R) ×1, Instruction manual (CD-R, detail and calculation) ×1 , Blank panel (for blank slots only) | |||||
