Description

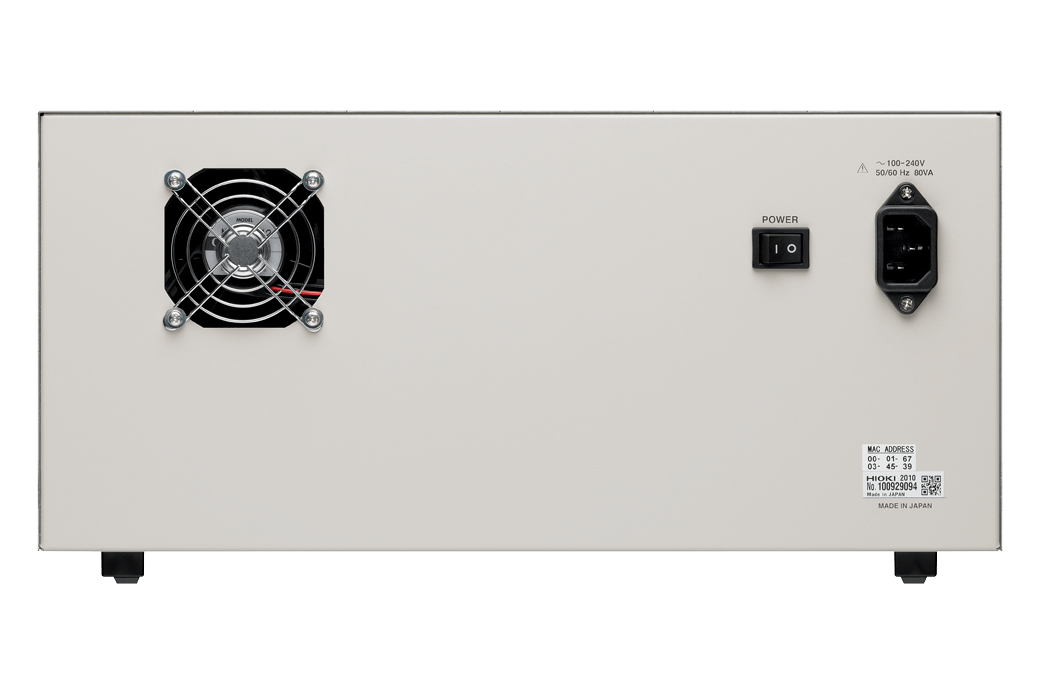

The Hioki MR8741 Memory HiCorder is a high-speed, rack-mounted, multi-channel waveform recorder and generator built for demanding industrial and production environments. With sampling speeds up to 20 MS/s, fully isolated 16 analog channels, and support for logic channels, the MR8741 delivers safe, synchronized, and precision data acquisition across various applications including automotive, power electronics, and factory automation.
Equipped with the DVM Unit MR8990, the MR8741 provides 24-bit resolution and exceptional voltage measurement accuracy—without requiring a scanner—making it ideal for fast, high-resolution multi-channel measurements.

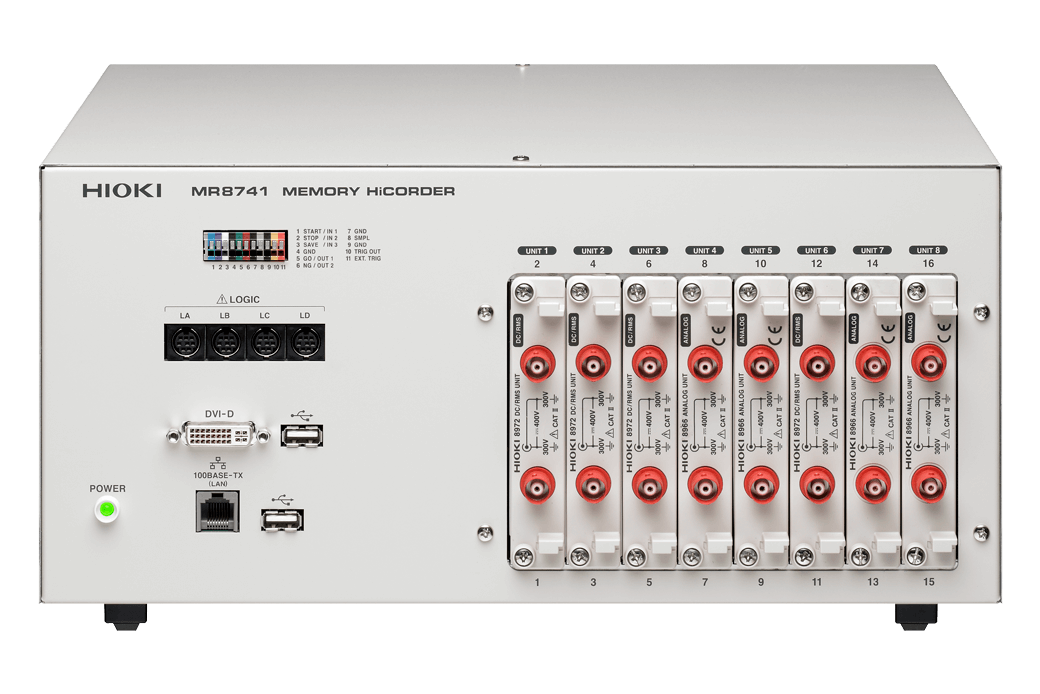

Its space-saving 4U box-type design is optimized for rack mounting. You can operate it via a connected DVI-D monitor and mouse, or remotely via LAN using command control or browser-based interfaces. For even more responsive remote control, the Hioki LAN Communicator 9333 is recommended.
Whether it’s recording real-time analog and logic signals or generating test waveforms, the MR8741 is a single-instrument solution engineered to streamline your testing environment with precision, flexibility, and ease.
Basic specifications of MEMORY HiCORDER MR8741:
| Max. Number of channels | 16 ch analog + 16 ch logic, or 10 ch analog + 64 ch logic (when used with built-in logic input + plug-in logic unit 8973 × 3) |
| Number of slots | 8 slots (Max. 8) [Limitation on number of slots] cannot use Current Unit 8971 When using the Logic Unit 8973: Max. 3 |
| Number of logic channels | 16 ch logic (Logic probe terminal GND share a common GND with chassis. ) on condition that DVM Unit MR8990 is used on slots 1 and 2, cannot use built-in logic input [Limitation on using built-in logic input] (with logic measurement ON) • Measurement resolution on slots 1 and 2 is limited up to 12 bits • Cannot use Frequency Unit 8970 on slots 1 and 2 |
| Measurement ranges (20 div full scale) | 5 mV to 20 V/div, 12 ranges, resolution : 1/100 of range (when using 8966) 5 mV to 50 V/div, 5 ranges, resolution : 1/50,000 of range (when using MR8990) |
| Max. allowable input | 400 V DC (when using 8966; upper limit voltage that can be applied between input terminals without damage) |
| Max. rated voltage to earth | 300 V AC/DC (input and instrument are isolated; between input channels and chassis; upper limit voltage that can be applied between input channels without damage) |
| Frequency characteristics | DC to 5 MHz (-3 dB, when using 8966) |
| Time axis (MEMORY operation) | 5 µs to 5 min/div; 26 ranges; time axis resolution: 100 points/div; time axis expansion: 3 stages from ×2 to ×10; compression: 13 stages from 1/2 to 1/20,000 |
| Measurement functions | Memory (high-speed recording), FFT, Recorder |
| Memory capacity | 16 MW/ch (fixed), total of 256 MW installed |
| Removable storage | USB memory stick (USB 2.0) |
| Display | None (1 digital DVI terminal, 800 × 600 dots) |
| External interfaces | [LAN] 100Base-TX (DHCP and DNS support, FTP server, HTTP server) [USB] USB 2.0 Series A receptacle × 2 (mouse operation) |
| Power supply | 100 to 240 V AC, 50/60 Hz (120 VA max.) |
| Dimensions and mass | 350 mm (13.78 in)W × 160 mm (6.30 in)H × 320 mm (12.60 in)D, 5.4 kg (190.5 oz) (main unit only) |
| Included accessories | Instruction manual ×1, Application disk (Wave viewer Wv, Communication commands table) ×1, Power cord ×1 |
LabVIEW and MATLAB support
| Compatible models | LabVIEW | MATLAB script | ||||
|---|---|---|---|---|---|---|
| MR8740 | Available | Available | ||||
| MR8741 | Available | Available | ||||
