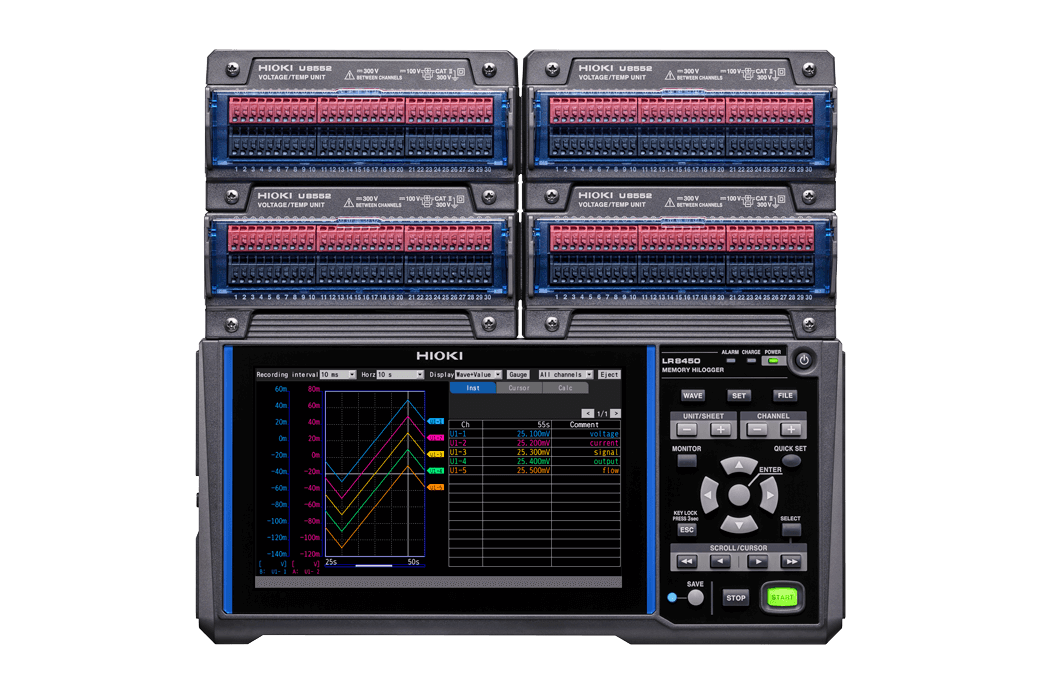

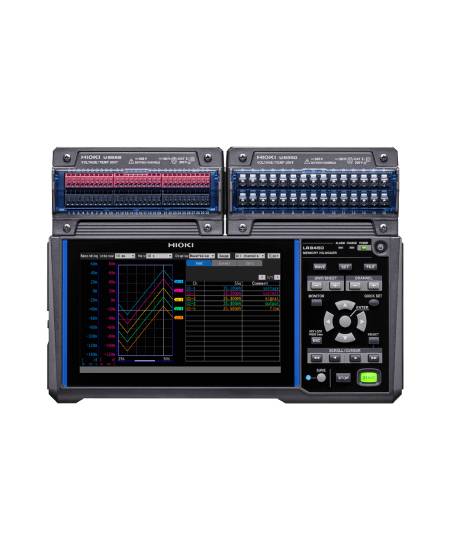

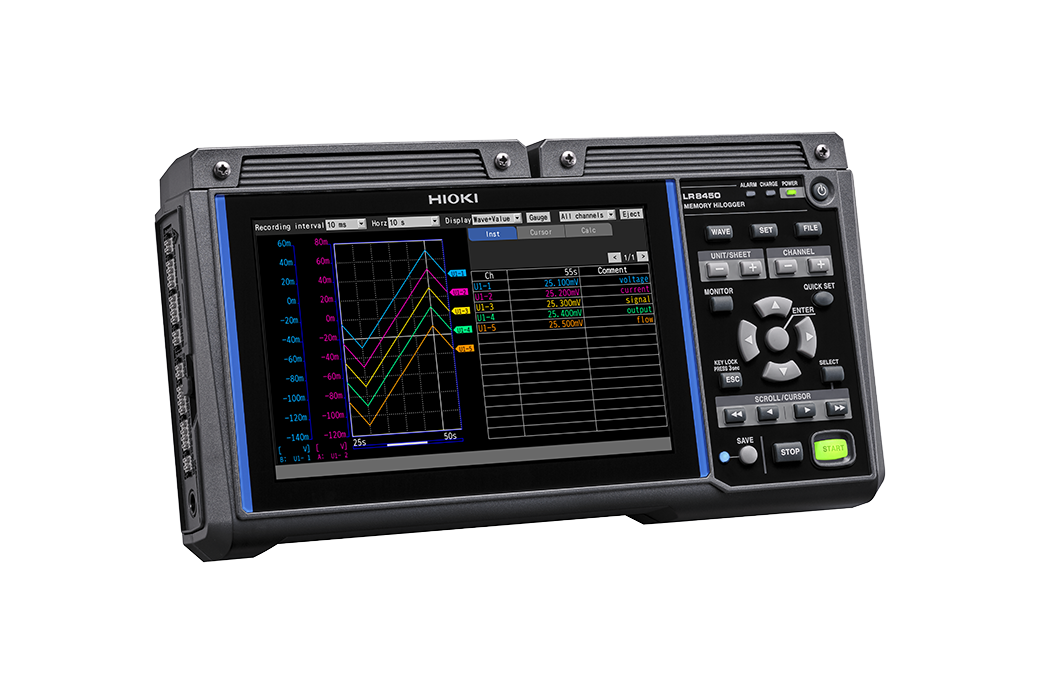

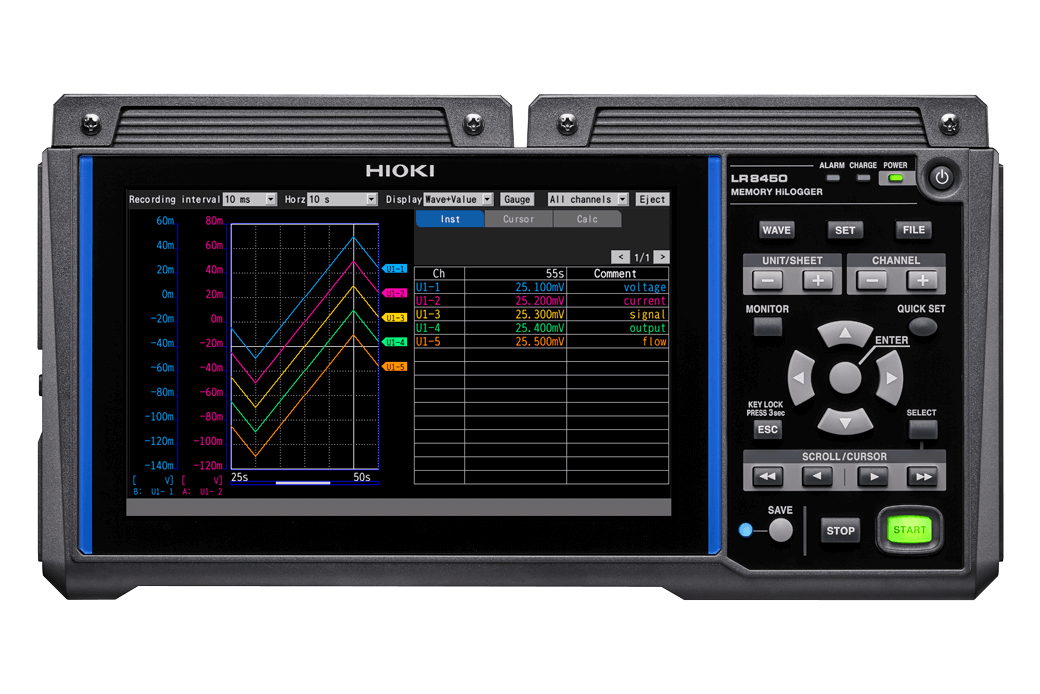

Memory HiLogger LR8450-01 for Wireless Multi-Channel Measurement
The Memory HiLogger LR8450-01 is a next-generation wireless data logger designed to meet the demands of modern automotive, e-mobility, and industrial testing environments. Combining ultra-fast 1 ms sampling with modular plug-in and wireless units, it allows engineers to expand measurement channels up to 330, providing a highly flexible and scalable solution for complex testing scenarios.
This wireless model is ideal for collecting data in locations that are difficult to access or where wiring is impractical. By registering up to seven wireless modules, users can monitor voltage, strain, temperature, and resistance signals without extensive cabling. Its high noise resistance ensures stable data logging even in high-voltage and high-frequency environments, such as around inverter motors or battery systems.
The LR8450-01 can measure stress on moving parts using directly connected strain gauges at 1 ms intervals, enabling accurate analysis of brakes, robotic equipment, and other mechanical components. Temperature and heat flow monitoring near inverters or battery packs is simplified with compatible voltage/temperature and heat flux sensors. Real-time data can be observed remotely via PC or tablet using the built-in HTTP and FTP servers, and centralized instrument management is available through Hioki’s GENNECT Cloud and GENNECT One software.
Designed for both precision and convenience, the LR8450-01 streamlines measurement setups while providing high-speed, high-channel, and wireless data acquisition. This makes it essential for engineers evaluating electric vehicles, industrial systems, or energy-efficient technologies, delivering reliable insights and enabling faster decision-making.
Technical Specifications Table
| Specification | Details |
| Maximum Channels | Up to 330 (via wireless and plug-in modules) |
| Sampling Speed | 1 ms (analog/strain), 10 ms (temperature) |
| Measurement Types | Voltage, Temperature, Strain, Resistance, Humidity |
| Wireless Capability | Up to 7 wireless modules for remote data acquisition |
| Plug-in Modules | High-Speed Voltage Unit, Strain Unit, Voltage/Temp Units |
| Noise Resistance | High, suitable for high-voltage/high-frequency environments |
| Remote Monitoring | PC or tablet via built-in HTTP/FTP server, GENNECT Cloud support |
| Multi-Logger Synchronization | Up to 5 LR8450 units for synchronized measurements (600 analog channels) |
| Battery/Power Management | EV battery thermal analysis, leakage current measurement, heat flow monitoring |
| Dimensions | 62 mm W × 94 mm H × 20 mm D |
| Weight | Approx. 150 g |
| Accessories | IC clip leads, alligator clip leads, carrying case, instruction manual |
| Applications | Automotive, EV testing, industrial components, thermal and strain analysis, remote data logging |
