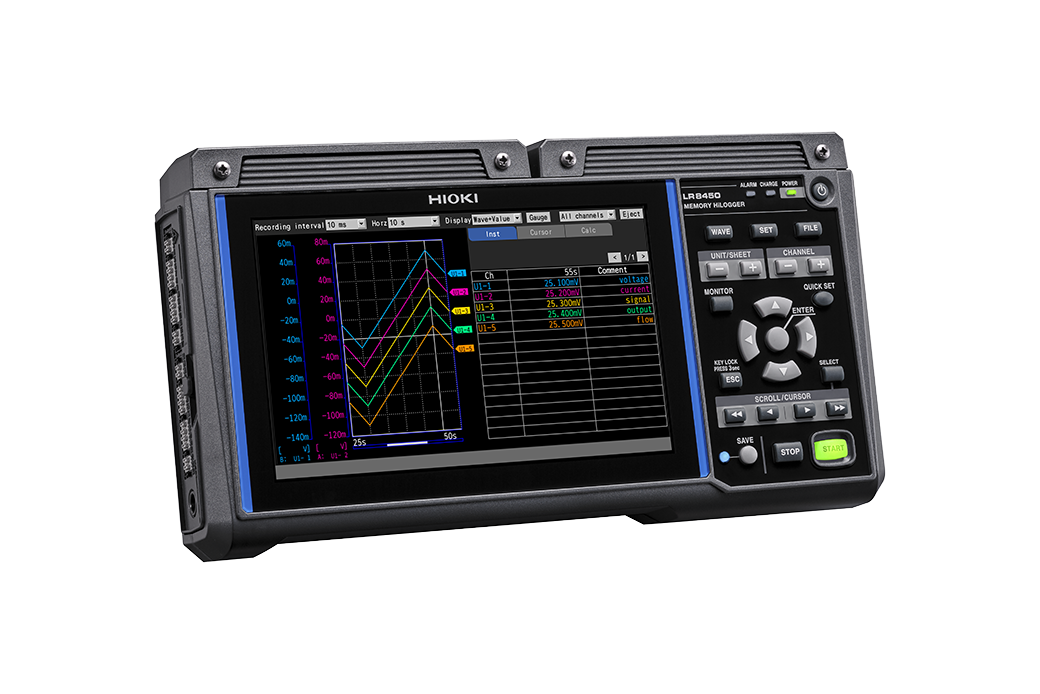

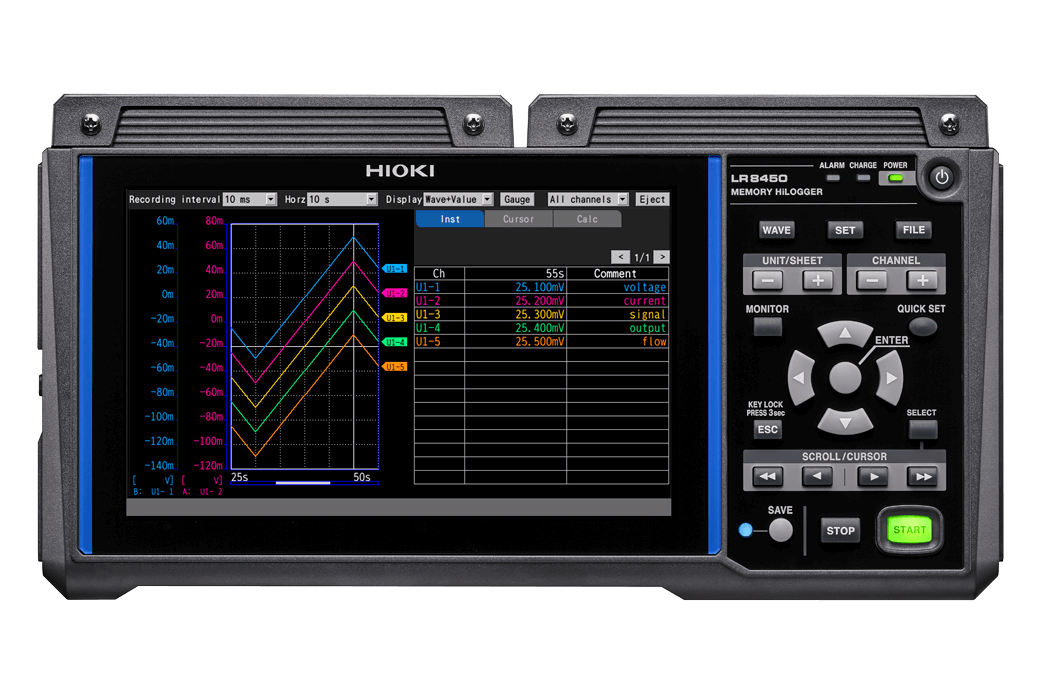

Memory HiLogger LR8450 for High-Precision Multi-Channel Logging
The Memory HiLogger LR8450 is a versatile, portable data acquisition system designed to meet the demands of automotive, EV, and industrial testing. It offers a modular approach, allowing users to expand measurement channels up to 120 by adding compatible plug-in units. This capability ensures flexible and scalable measurement systems that can adapt to any testing scenario, from battery thermal management to strain and load monitoring in moving components.
Capable of sampling data as fast as 1 ms, the LR8450 excels in applications where high-speed response is critical, such as strain measurements on brakes, pipes, or robotic components, as well as monitoring high-frequency voltage and temperature signals around inverters or EV batteries. Its high-noise resistance ensures accurate measurements even in electrically challenging environments, reducing errors caused by high-frequency fluctuations or transient voltages.

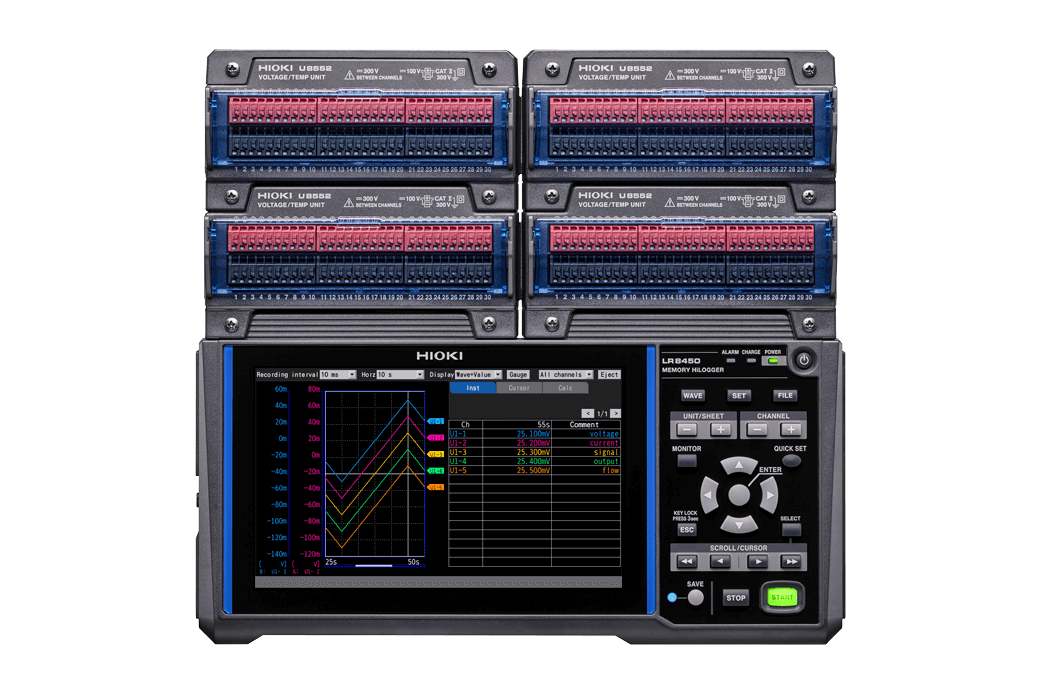

The LR8450 supports a wide range of plug-in modules, including high-speed voltage units, strain units, and voltage/temperature units, enabling simultaneous multi-parameter acquisition. For complex setups, it can synchronize multiple LR8450 units, expanding up to 600 analog channels with precise timing. Coupled with GENNECT Cloud and GENNECT One software, it allows remote monitoring, real-time data collection, and centralized management across multiple instruments, empowering engineers to gain actionable insights quickly.
Ideal for electric vehicle thermal management, the LR8450 enables evaluation of temperature, heat flow, and current consumption to optimize performance and meet Scope 3 emission reduction targets. Its combination of speed, precision, and modularity makes it an essential tool for modern embedded system evaluation, energy-efficient device testing, and industrial R&D.
Technical Specifications Table
| Specification | Details |
| Maximum Channels | Up to 120 (via plug-in modules) |
| Sampling Speed | 1 ms (analog/strain), 10 ms (temperature) |
| Measurement Types | Voltage, Temperature, Strain, Resistance, Humidity |
| Plug-in Modules | High-Speed Voltage Unit U8553, Strain Unit U8554, Voltage/Temp Unit U8550, Universal Unit U8551 |
| Multi-Logger Synchronization | Up to 5 LR8450 units (600 channels) |
| Noise Resistance | High, suitable for high-voltage/high-frequency environments |
| Compatible Software | GENNECT Cloud, GENNECT One |
| Battery/Power Management | EV battery thermal analysis, leakage current measurement, heat flow monitoring |
| Dimensions | 62 mm W × 94 mm H × 20 mm D |
| Weight | Approx. 150 g |
| Accessories | IC clip leads, alligator clip leads, carrying case, instruction manual |
| Applications | Automotive, EV battery testing, industrial components, thermal and strain analysis |
