MGA 1033 Magnetic Immunity Test System
The MGA 1033 Magnetic Immunity Generator and Analyzer from Schlöder GmbH is a powerful and compact solution for generating and measuring magnetic fields in the frequency range of DC to 250 kHz. Designed with versatility in mind, it enables compliance testing across multiple standards, including EN 55103, ISO 11452-8, DO-160, and MIL-STD-461, making it a trusted tool for automotive, avionics, medical electronics, military, and industrial applications.
At the core of the MGA 1033 is a three-module system comprising a signal generator, an integrated 800 W power amplifier, and a precision spectrum analyzer. This modular design allows the system to be used as a complete unit or in standalone configurations for specific test needs. By integrating these components, Schlöder ensures accurate, reliable, and efficient testing while reducing setup complexity.

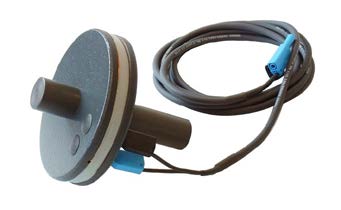

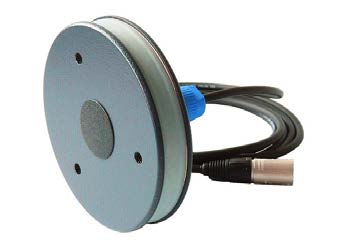

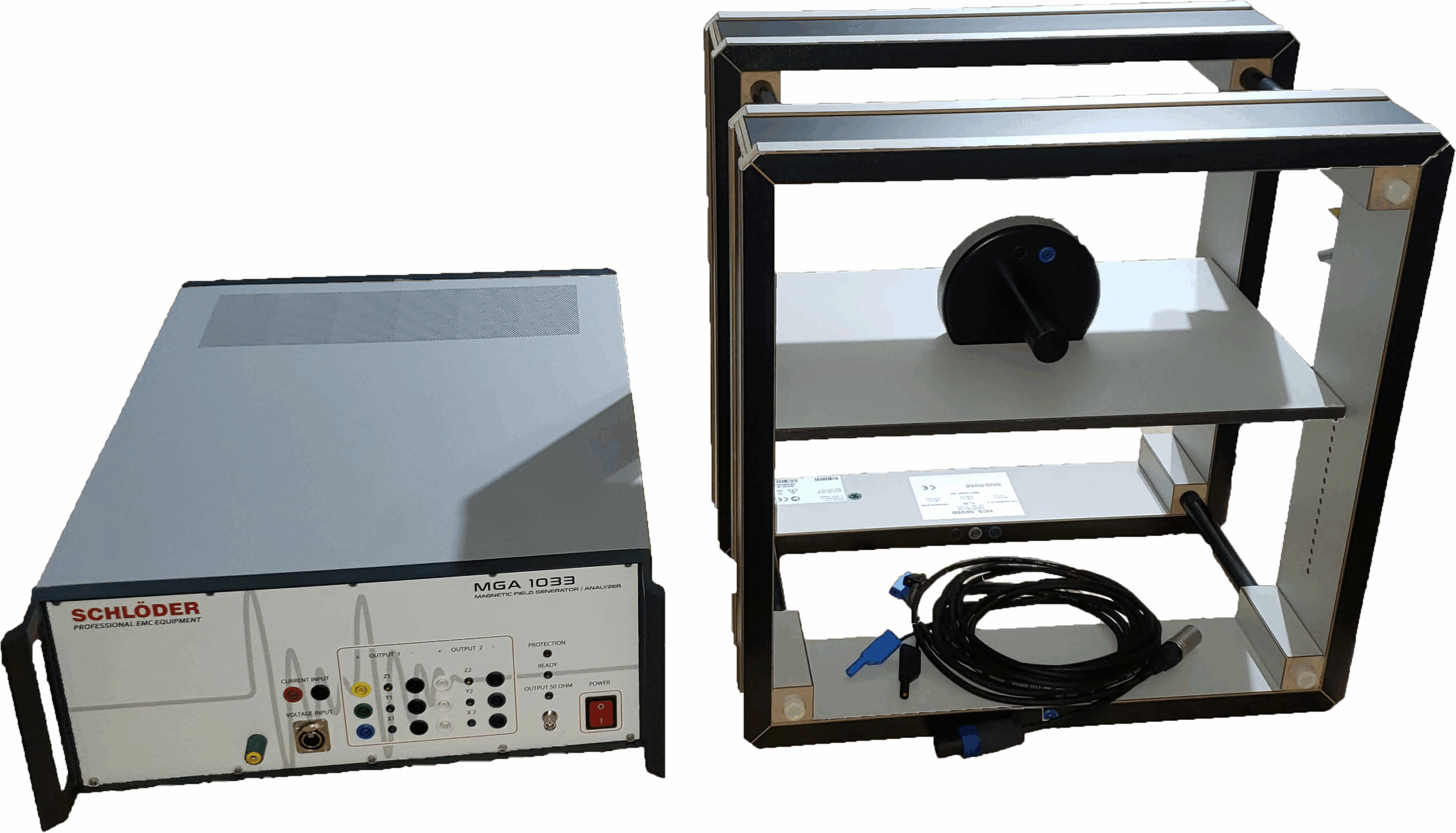

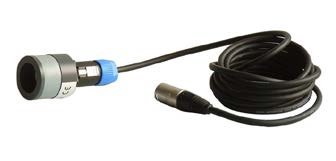

When paired with triaxial Helmholtz coils, the MGA 1033 delivers magnetic field strengths up to 1000 A/m without the need to rotate the equipment under test. This feature streamlines testing, enabling automatic multi-axis field generation and significantly saving time in the compliance process. Accessories such as loop sensors, radiating loops, coupling transformers, and calibration coils extend its flexibility, ensuring compatibility with evolving EMC standards.
A key advantage of the MGA 1033 is its self-calibration capability, supported by a highly stable internal voltage source. This allows users to run automated calibration routines in just minutes, ensuring accurate performance without additional external equipment. With Windows-compatible software, engineers can configure test routines, log results, and generate compliance-ready reports with ease.
The MGA 1033 is more than a magnetic field generator—it is a comprehensive EMC immunity testing platform trusted worldwide for legally compliant, efficient, and repeatable measurements. Whether for R&D labs or certification bodies, this system empowers engineers to achieve faster development cycles while maintaining rigorous industry standards.
MGA 1033 Technical Specifications
| Specification | Details |
| Frequency Range | DC to 250 kHz |
| Field Strength | Up to 1000 A/m (with Helmholtz coils) |
| Output Power | 800 W |
| Bandwidth | DC to 1 MHz |
| Spectrum Analyzer | 16-bit, 1 MS/s sampling rate |
| Modules | Signal generator, power amplifier, spectrum analyzer |
| Standards Supported | ISO 11452-8, EN 55103, IEC/EN 61000-4-8, DO-160, MIL-STD-461, SAE J1113 |
| Calibration | Self-calibration + Helmholtz coil calibration |
| Accessories | Helmholtz coils, loop sensors, coupling transformers, field coils |
| Operating System | Windows-compatible software |
