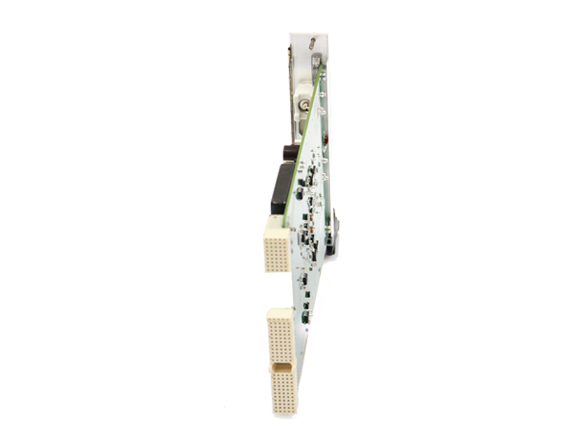

Model 3222 Signal Amplifier for High Voltage PXI Applications
The Model 3222 Signal Amplifier is engineered to overcome one of the most common challenges in PXI systems, limited output voltage. Many PXI waveform generators operate from 12V supply rails, which restricts their ability to deliver signals above 10Vp p into 50Ω loads. The Model 3222 Signal Amplifier eliminates this limitation by using advanced DC to DC conversion and a unique internal design that significantly increases available output voltage.
With a wideband frequency range from DC to over 20MHz, the Model 3222 Signal Amplifier ensures excellent signal integrity across low and mid frequency applications. It provides up to 40Vp p into high impedance loads and up to 20Vp p into 50Ω, making it suitable for automotive, aviation, industrial electronics, and laboratory environments where higher voltage signals are required.
Flexible Configuration
The Model 3222 Signal Amplifier comes standard with a fixed gain of x10. However, it can be custom configured to meet specific system requirements without degrading signal purity. Users can define gain, input impedance, output impedance, output polarity, and signal ground configuration at the time of purchase.
The amplifier can be supplied with isolated input and output connectors that allow the unit to float up to 250Vdc from case ground. This floating capability is essential in applications where the amplified signal must remain at the same ground level as its source. A simple internal jumper allows users to enable or disable this floating feature.
Another key advantage of the Model 3222 Signal Amplifier is its power management design. The unit draws current only from the +5V rail, leaving other PXI power rails available to support additional modules at full capacity.
Demanding Industries
In automotive systems, where signals often range from 12V to 28V, the Model 3222 Signal Amplifier provides the required amplitude without distortion. In aviation systems, where even higher voltage levels are needed to route signals across aircraft structures, this amplifier offers reliable and stable performance.
Compact, powerful, and highly configurable, the Model 3222 Signal Amplifier is an outstanding choice for engineers who require clean high voltage signal amplification within a PXI platform.
Technical Specifications
| Parameter | Specification |
| Form Factor | 3U single slot PXI |
| Frequency Range | DC to over 20MHz |
| Maximum Output Voltage | 40Vp p into high impedance |
| Output Voltage into 50Ω | Up to 20Vp p |
| Standard Gain | x10 fixed |
| Custom Gain | x1 to x10 standard range |
| Input Impedance Options | 50Ω or 1MΩ |
| Output Impedance Options | 50Ω, 75Ω, 600Ω |
| Output Polarity | Normal or Inverted |
| Signal Ground | Grounded or Floating up to 250Vdc |
| Power Rail Usage | +5V rail only |
| Typical Applications | Automotive, aviation, industrial, laboratory testing |
