Description
Model A10150 Signal Amplifier for High Speed Wideband Applications
The Model A10150 Signal Amplifier is engineered for engineers and test professionals who demand ultra fast, low distortion signal amplification. With an impressive 150MHz bandwidth and transition time under 1.8ns, this amplifier preserves waveform integrity even in high speed digital and RF environments.

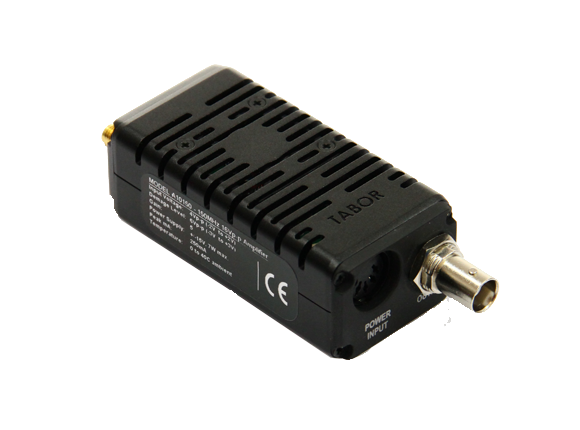

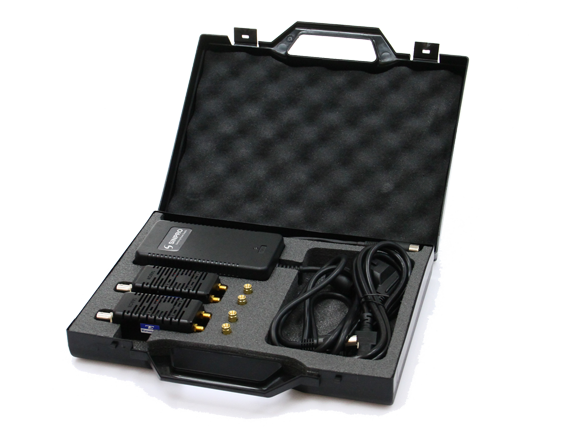

Designed with a small footprint and rugged all metal enclosure, the Model A10150 Signal Amplifier integrates easily into laboratory benches and rack setups. It was originally developed as a snap on accessory for Tabor WaveXciter series and WS8351 or WS8352 signal sources, which typically provide up to 4Vp-p output. When paired with the Model A10150 Signal Amplifier, these signal sources can deliver significantly higher voltage levels, reaching up to 32Vp-p into high impedance loads without compromising signal quality.
Performance and Output Flexibility
The standard configuration of the Model A10150 Signal Amplifier provides 16Vp-p into 50Ω with a fixed gain of x5. For applications requiring additional voltage swing, optional configurations allow:
- Gain selection of x10
- Maximum output voltage up to 20Vp-p into 50Ω
This flexibility enables users to tailor the amplifier to specific application requirements while maintaining stable bandwidth performance.
The DC coupled architecture ensures accurate reproduction of both AC and DC components of the signal. Combined with low distortion performance, the amplifier delivers clean amplification suitable for precision testing environments.
Applications and Integration
The Model A10150 Signal Amplifier is ideal for Ethernet testing, ASIC characterization, FPGA validation, DAC verification, and other high speed electronics applications. It provides a cost effective and compact solution for extending the voltage capability of existing signal sources.
While optimized for compatibility with Tabor instruments, the Model A10150 Signal Amplifier functions seamlessly as a standalone amplifier. It offers a versatile and reliable option for any high frequency system that requires greater output amplitude without sacrificing signal integrity.
Technical Specifications
| Parameter | Specification |
| Bandwidth | 150MHz |
| Maximum Output Voltage Standard | 16Vp-p into 50Ω |
| Maximum Output Voltage Optional | 20Vp-p into 50Ω |
| Gain Standard | x5 |
| Gain Optional | x10 |
| Transition Time | Less than 1.8ns |
| Coupling | DC coupled |
| Channels | Single channel |
| Enclosure | Compact all metal case |
| Applications | Ethernet, ASIC, FPGA, DAC testing |
