Description

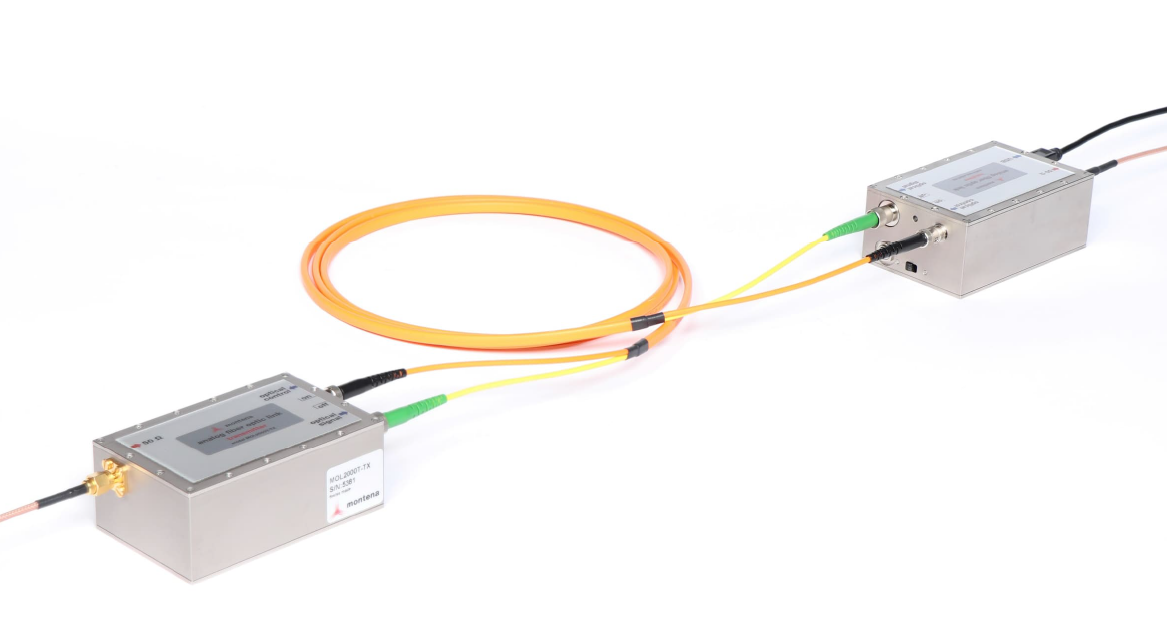

MOL2000T Fiber Optic Link for Secure RF and EMC Signal Transmission
The MOL2000T Fiber Optic Link 80 Hz – 3.5 GHz with Gain and Sleep Feature from Montena is a cutting-edge optical transmission system engineered for high-performance analog signal delivery in harsh electromagnetic environments. Designed with advanced automatic optical level control and variable gain adjustment, the MOL2000T provides unmatched flexibility and reliability for EMC testing, RF applications, and environments where signal integrity is critical.
Covering a wide bandwidth from 80 Hz to 3.5 GHz, the MOL2000T ensures interference-free signal transmission with a gain range from -62.5 dB to +24 dB, adjustable in precise 0.5 dB steps. Its built-in test pulse generator allows users to verify link performance instantly, while the sleep mode optimizes power efficiency during long-duration operations.
With proven immunity to extreme electric fields up to 500 kV/m, the MOL2000T meets rigorous test standards including MIL-STD 461 RS105, making it ideal for aerospace, defense, automotive, and industrial applications. Its rugged SMA RF connectors and dual optical interfaces (FC/APC & ST) guarantee durability and long-term performance in demanding setups.

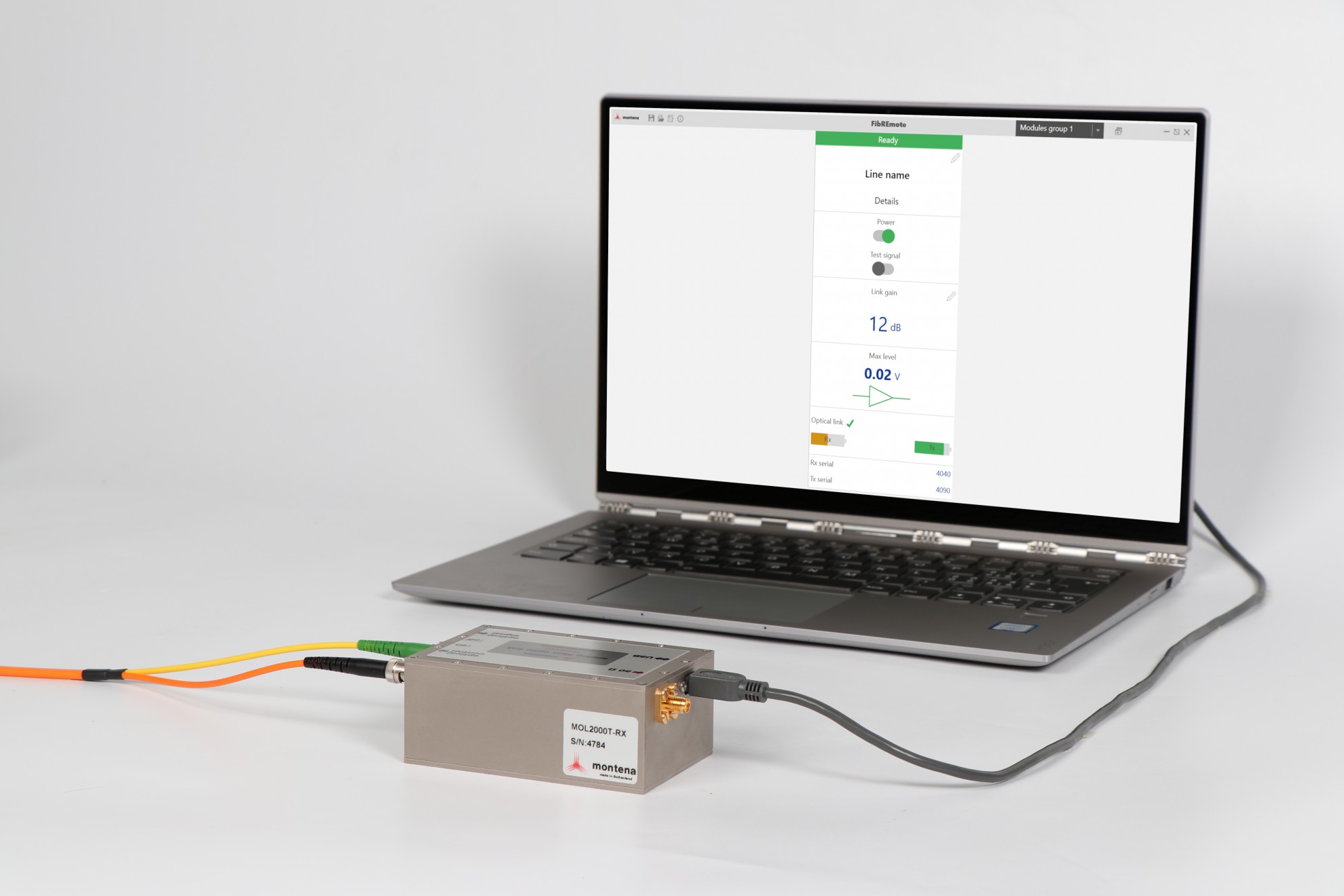

The system can be operated on internal LiPo batteries for up to 40 hours or powered via an adapter, making it highly versatile for both lab and field use. Combined with Montena’s FibREmote software, users benefit from intuitive remote control, monitoring, and configuration, ensuring efficient workflows and accurate results.
From EMC testing and RF shielding evaluations to aerospace, medical imaging, satellite communications, and defense systems, the MOL2000T stands as a reliable, high-speed solution for secure, long-distance signal transmission.
Technical Data
| Specification | Details |
| Bandwidth | 80 Hz – 3.5 GHz |
| Gain Range | -62.5 dB to +24 dB (0.5 dB steps) |
| Maximum Link Distance | Up to 1 km |
| Input Power (CW) | 2W continuous, 10W peak |
| Output Noise Floor | -136 dBm/Hz (typical) |
| Optical Loss Compensation | Automatic (variable optical attenuator) |
| Immunity to External Fields | >500 kV/m (MIL-STD 461 RS105) |
| Built-in Test Generator | 5 kHz bipolar square signal |
| Power Options | LiPo battery (40 hours) or adapter |
| Connectors (RF) | SMA, 50 Ω |
| Connectors (Optical) | FC/APC & ST |
| Dimensions (per unit) | 99 x 64 x 41 mm |
| Weight (per unit) | 380 g |
| Operating Temperature | +5°C to +55°C |
