MOL3000 Fiber Optic Link for EMC and RF Applications
The MOL3000 Fiber Optic Link 80 Hz – 3.5 GHz by Montena is an advanced analog optical transmission system engineered to provide secure and interference-free signal transfer in the most demanding environments. With a wide frequency range and fixed gain design, the MOL3000 is perfectly suited for EMC testing, RF applications, aerospace, automotive, defense, and high-voltage industrial environments.
Thanks to its automatic optical level control, the MOL3000 ensures consistent and reliable performance even under varying optical losses. Its immunity to external electric fields, tested up to 500 kV/m according to MIL-STD-461 RS105, makes it ideal for use in environments with extreme electromagnetic disturbances.

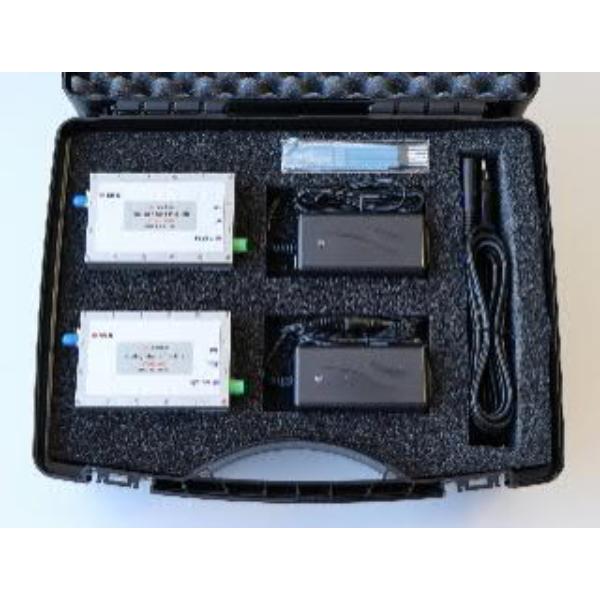

The system includes a transmitter and receiver module, each compact and lightweight, powered by internal LiPo batteries with up to 40 hours of autonomy. This portability, combined with durable RF and optical connectors, makes the MOL3000 easy to deploy in field and laboratory applications.
Transmission distances of up to 1 km are supported using single-mode fiber optic cables, with options for ruggedized cabling available. With precise noise floor performance (< -137 dBm/Hz) and a gain of 0 dB ±1.5 dB, the MOL3000 guarantees accurate and clean signal transfer without distortion.
Applications extend beyond EMC labs to include satellite communications, MRI rooms, radar testing, seismic monitoring, live event broadcasting, and quantum research, where signal integrity and isolation are critical.
Backed by Absolute EMC, the exclusive North American partner for Montena, the MOL3000 comes with full technical support, expert consultation, and after-sales service.
The MOL3000 is not just a fiber optic link; it is a reliable bridge between precision measurement and challenging environments, ensuring stable and trustworthy signal transmission every time.
MOL3000 Technical Specifications
| Specification | Details |

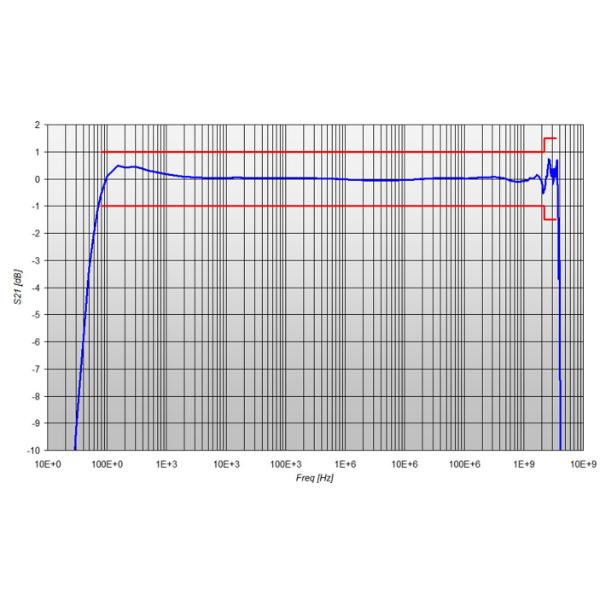

| Bandwidth | 80 Hz – 3.5 GHz (±1.5 dB) |
| System Gain | 0 dB ±1.5 dB (±1.0 dB < 2.2 GHz) |
| Max Input Power | 24 dBm (250 mW) |
| Max Input Voltage | 10 Vp-p |
| Field Immunity | > 500 kV/m (MIL-STD-461 RS105) |
| Noise Floor | < -137 dBm/Hz (typical) |
| Transmission Distance | Up to 1 km |
| Power Supply | Internal LiPo batteries / adapter |
| Battery Autonomy | 40 hours typical |
| Connectors | RF: SMA (50Ω), Optical: FC/APC |
| Dimensions | 99 x 64 x 41 mm per module |
| Weight | 350 g per unit |
| Operating Temperature | +5°C to +55°C |
