Aim-TTi TGF4000 Series – Precision Meets Versatility in Waveform Generation
The Aim-TTi TGF4000 Series Function Generator delivers cutting-edge signal performance with dual-channel capability and frequency ranges from 40 MHz to 240 MHz. Designed for advanced R&D, education, and manufacturing applications, this generator combines flexibility, precision, and ease of control in a compact, rack-mountable form.
Dual Channels with Full Performance
Both channels offer independent or synchronized operation and provide identical signal generation features, including:
- Phase synchronization with 0.001° resolution
- Coupled or tracking modes
- Independent output adjustment for complex signal scenarios
High-Speed Arbitrary Waveform Capability
Create or replicate real-world signals with the onboard arbitrary waveform generator, offering:
- Sample rates up to 800 MS/s
- Replay rates up to 80 MHz
- Custom waveform creation using PC-based editing software
This is ideal for engineers simulating sensor outputs, communication signals, or noise-loaded environments.
Advanced Modulation and Triggering Options
The TGF4000 supports modulation modes like AM, FM, PM, PWM, FSK, and more—controlled through internal or external sources. Sweep, gated, and burst modes add test flexibility, making it an excellent fit for EMC testing, filter characterization, and digital circuit evaluation.
Reliable Connectivity for Automation and Integration

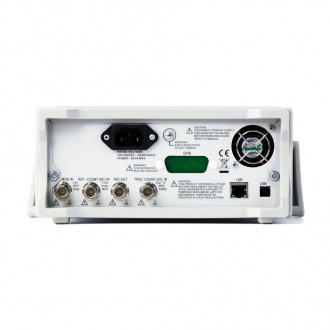

The instrument includes USB and LXI-compliant LAN interfaces as standard, with optional GPIB for legacy system support. This makes it a seamless addition to automated test systems and lab networks.
Model Comparison Table
| Model | Max Frequency | Channels | Waveform Support | Arb Sample Rate | Connectivity | Price |
| TGF4042 | 40 MHz | Dual | Standard + Arbitrary | 800 MS/s | USB, LAN (LXI) | €837 |
| TGF4082 | 80 MHz | Dual | Standard + Arbitrary | 800 MS/s | USB, LAN (LXI) | €978 |
| TGF4162 | 160 MHz | Dual | Standard + Arbitrary | 800 MS/s | USB, LAN (LXI) | €1,398 |
| TGF4242 | 240 MHz | Dual | Standard + Arbitrary | 800 MS/s | USB, LAN (LXI) | €1,681 |
