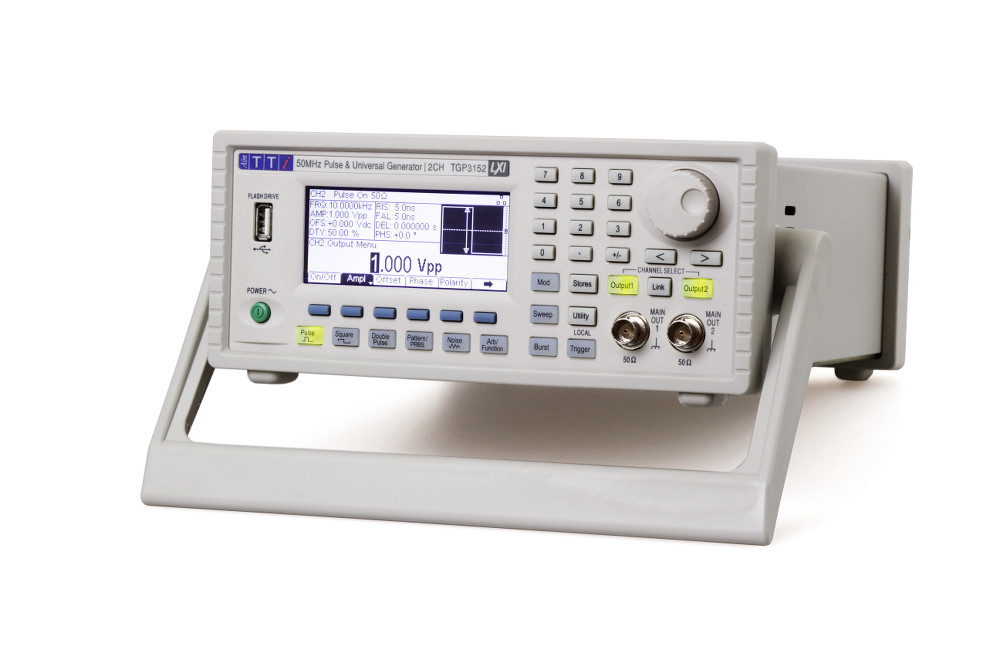

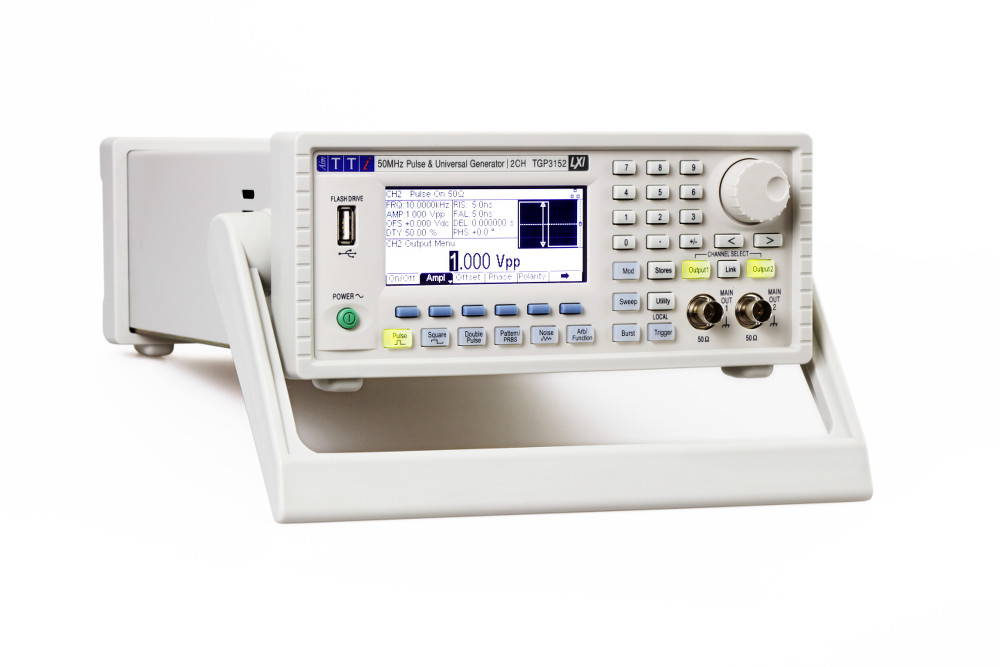

High-Performance Waveform Generation with the TGP3100 Series Pulse Generator
The Aim-TTi TGP3100 Series Pulse and Universal Generator redefines precision signal generation by combining digital accuracy with exceptional flexibility. Available in 25MHz and 50MHz models with single or dual channel configurations, it’s a complete solution for engineers, researchers, and educators requiring highly stable, low-jitter signals across a wide range of applications.
Digital Precision and Pulse Flexibility
The TGP3100 Series offers true pulse generation using advanced digital synthesis. It provides pulse, double pulse, and PRBS (pseudo-random binary sequence) capabilities, allowing accurate control of period, width, and delay with 100ps resolution. Rise and fall times are fully adjustable from 5ns to 800s, making it suitable for fast-edge and long-duration waveform testing.
Universal Function and Arbitrary Waveform Capabilities
More than just a pulse generator, the TGP3100 doubles as a universal waveform generator. It supports 16 waveform types, including sine, square, ramp, triangle, and arbitrary waveforms with a 16-bit vertical resolution and 800MS/s sampling rate. This makes it ideal for testing analog and digital circuits with precision waveform shaping.
Modulation, Noise, and Advanced Control
Equipped with a wide range of modulation options such as AM, FM, PM, FSK, BPSK, PWM, and PDM, the TGP3100 can be driven by internal or external sources. It also functions as a full noise generator up to 25MHz, with adjustable crest factors and user-defined noise profiles for signal conditioning and reliability testing.

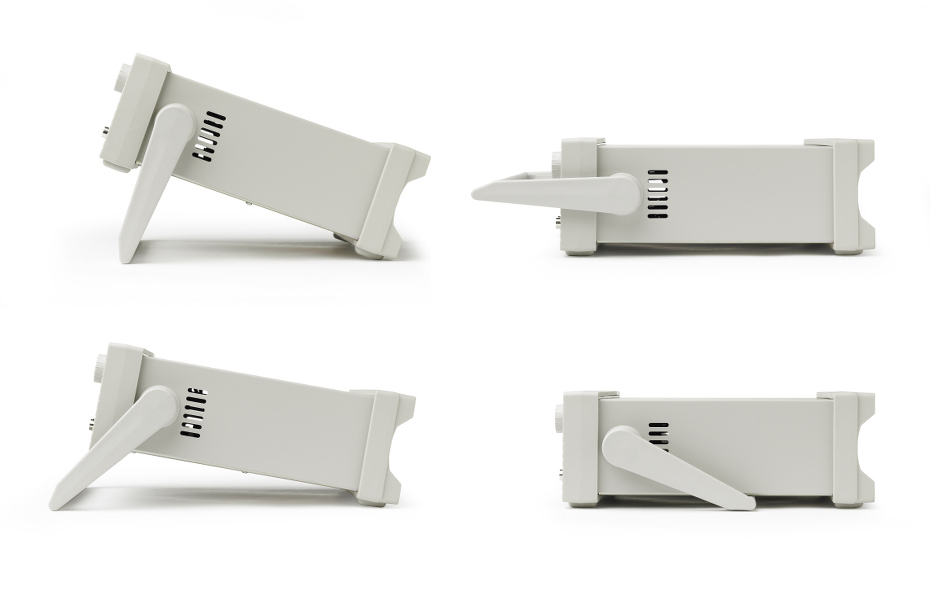

Designed for Modern Test Environments

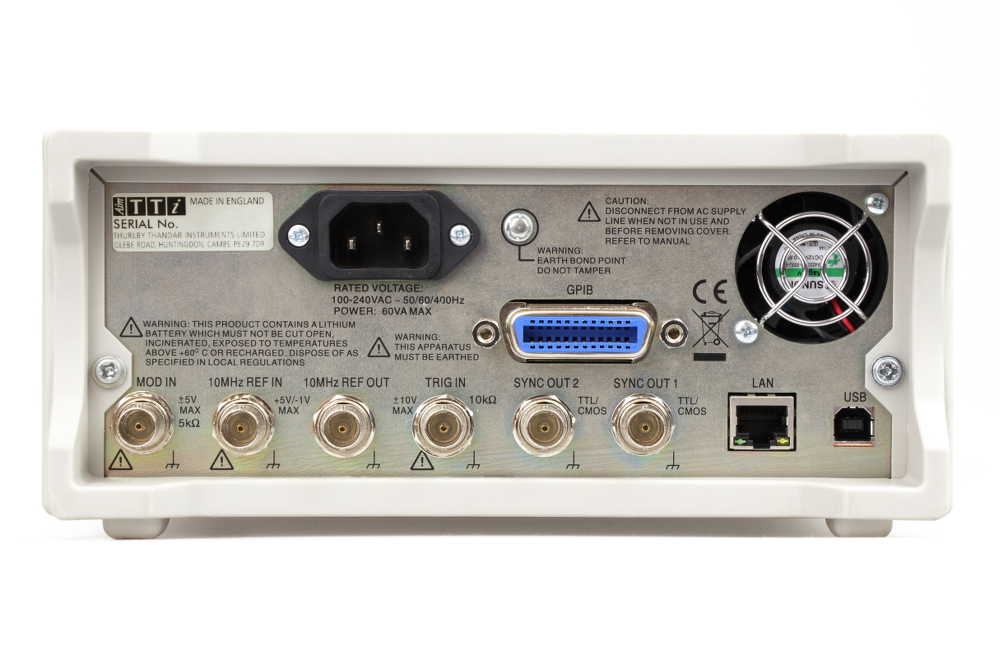

Featuring a USB flash drive interface, LAN (LXI) and USB control, and optional GPIB connectivity, the TGP3100 Series easily integrates into automated test systems. Its intuitive interface and high drive output up to 20V pk-pk into 50Ω ensure simple setup and accurate performance in every test scenario.
The Aim-TTi TGP3100 Series delivers unmatched flexibility, making it a reliable, future-ready tool for any electronic design or production environment.
Technical Specifications Table
| Parameter | Specification |
| Product Name | Aim-TTi TGP3100 Series Pulse and Universal Generator |
| Models | TGP3121, TGP3152 |
| Frequency Range | Up to 25MHz or 50MHz |
| Waveform Types | Pulse, Double Pulse, PRBS, Sine, Square, Ramp, Triangle, Arbitrary |
| Pulse Width/Delay Resolution | 100ps |
| Rise/Fall Time | 5ns to 800s adjustable |
| Amplitude Range | Up to 20V pk-pk into 50Ω |
| Sampling Rate | 800MS/s |
| Vertical Resolution | 16-bit |
| Noise Generator Bandwidth | Up to 25MHz |
| Modulation Types | AM, FM, PM, FSK, BPSK, PWM, PDM |
| Sweep Functions | Linear and logarithmic |
| Control Interfaces | USB, LAN (LXI), optional GPIB |
| Storage Interface | Front-panel USB Flash Drive |
| Applications | R&D, production testing, academic labs, waveform simulation |
