  • A high-performance analyzer designed for R&D applications involving electrochemical components, materials, batteries, and EDLCs. It enables precise impedance measurements essential for advanced evaluation and development.

    Key Features:

    • Wide frequency range: 1 mHz to 200 kHz for detailed ion and solution behavior analysis
    • Dual function: High-speed continuous LCR and sweep measurements with one device
    • Battery analysis: Measures internal impedance under no-load conditions
    • Ultra-fast sweep: Perform measurements in as little as 2 ms
    • High accuracy: ±0.05% basic precision for reliable R&D and testing
    • Advanced analysis: Supports Cole-Cole plots and equivalent-circuit modeling for electrochemical studies
  • An advanced firmware upgrade for the IM3570 that enables quick and accurate equivalent circuit analysis, ideal for in-depth component evaluation and quality control.

    Key Features:

    • Automatically selects the optimal equivalent circuit model from five typical options
    • Minimizes discrepancies between measured and ideal frequency characteristics
    • Determines acceptance/rejection of L, C, and R elements with precision
    • Evaluates resonance sharpness (mechanical quality coefficient)
    • Enables detailed analysis of piezoelectric elements and inductors through resonance

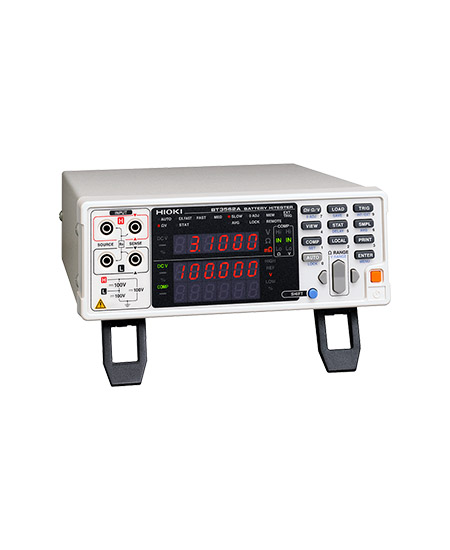

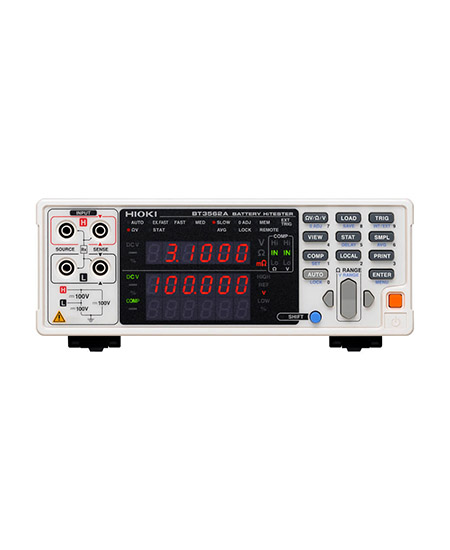

  • Key Features:

    • Fully automated battery testing for large cells and mid-sized packs up to 100 V
    • Simultaneous measurement of internal resistance (AC-IR) and open-circuit voltage (OCV)
    • Wide resistance range: 3 mΩ to 3.1 kΩ with 0.1 μΩ resolution
    • Voltage measurement ranges: 6 V, 60 V, and 100 V with high precision
    • Equipped with LAN interface for production line integration
    • Fast, accurate AC four-terminal method
    • Resistant to static electricity (±30 kV contact discharge)
    • Ideal for production, shipping inspection, and quality control

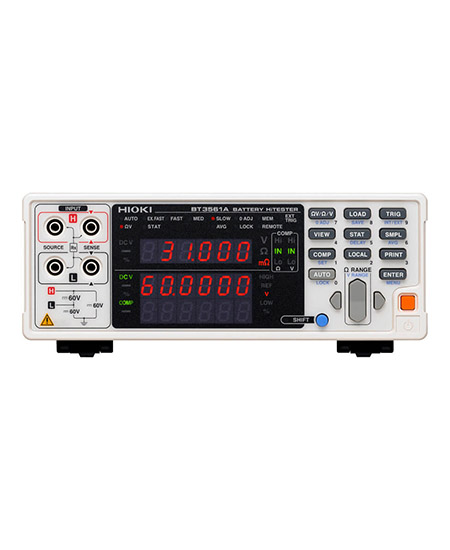

  • Key Features:

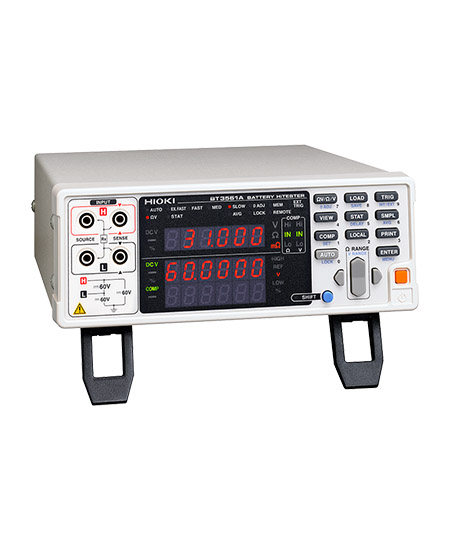

    • Fully automated battery testing for small cells and packs up to 60 V
    • Simultaneous measurement of internal resistance (AC-IR) and open-circuit voltage (OCV)
    • Wide resistance range: 0 Ω to 3.1 kΩ with 1 μΩ resolution
    • Voltage measurement ranges: 6 V and 60 V with high precision
    • Equipped with LAN interface for integration with production lines
    • Rapid measurement using AC four-terminal method
    • Highly resistant to static electricity (±30 kV contact discharge)

  • Key Features:

    • Fully automated battery testing for large packs up to 300 V
    • Simultaneous measurement of internal resistance (AC-IR) and open-circuit voltage (OCV)
    • Wide resistance range: 3 mΩ to 3.1 kΩ with 0.1 μΩ resolution
    • Voltage measurement ranges: 6 V, 60 V, and 300 V with high precision
    • Equipped with LAN interface for production line integration
    • Fast, accurate AC four-terminal method
    • Resistant to static electricity (±30 kV contact discharge)
    • Ideal for high-voltage pack inspection and quality control

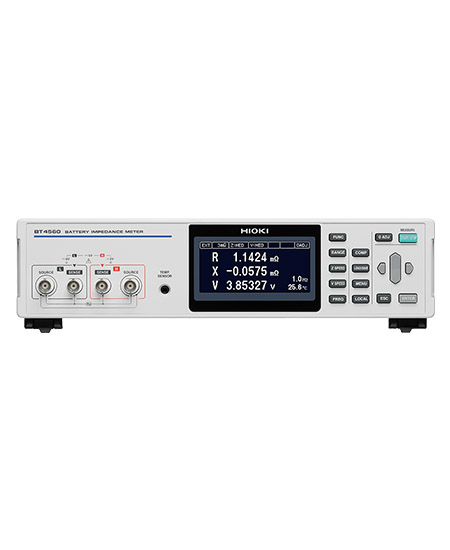

  • Key Features:

    • High-precision EIS measurement for EV and ESS battery testing
    • Frequency range: 0.01 Hz to 1.05 kHz for versatile impedance analysis
    • Measures impedance, voltage, and temperature simultaneously
    • Supports Nyquist (Cole-Cole) plotting for battery R&D
    • Four-terminal pair probes reduce magnetic flux for stable measurements
    • LAN interface enables multi-channel testing and integration into production systems
    • Compatible with third-party equivalent circuit analysis software
    • Reliable for both R&D and manufacturing applications

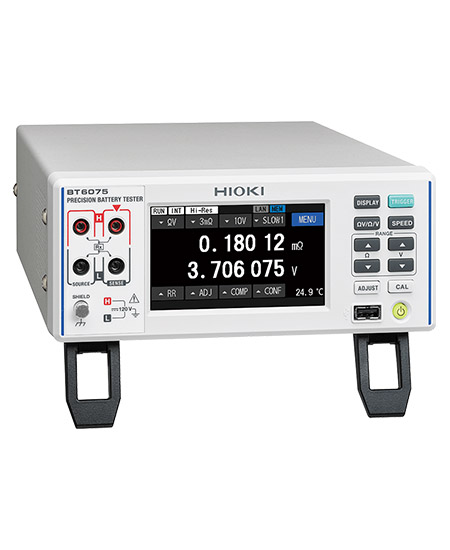

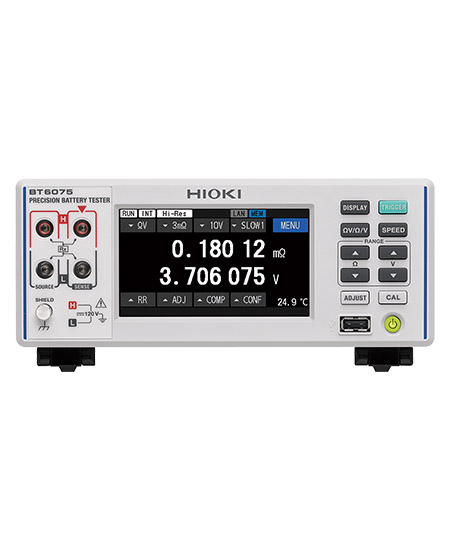

  • Key Features:

    • Industry-leading precision for OCV and AC-IR testing of EV battery cells
    • Ultra-high resolution for advanced cell grading (down to 0.01 µΩ)
    • Fast testing speeds with excellent reproducibility
    • MIR mode enables parallel testing without interference
    • Channel-specific correction and multiplexer support
    • Reliable long-term system operation with route resistance monitoring
    • Easy integration with existing systems (BT3562A command compatibility)
    • Compact, lightweight design for lab or production lines

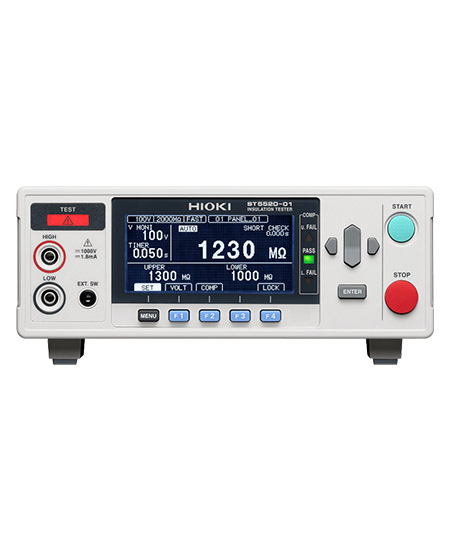

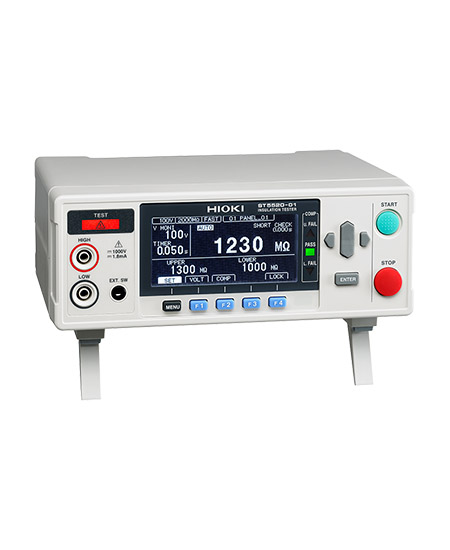

  • Key Features:

    • Fastest insulation tester in the industry with results in as little as 50 ms
    • Wide test voltage range: 25 V to 1000 V with 1 V resolution
    • Quick residual voltage discharge for faster takt times
    • Contact check function prevents false readings from poor connections
    • Short-circuit check detects micro-shorts before testing
    • Built-in LAN and RS-232C for system integration
    • Compact, lightweight design ideal for battery and production line testing
    • Models available: ST5520 (I/O output) and ST5520-01 (BCD output)



  • A high-speed, high-precision LCR meter ideal for low-ESR and impedance testing in advanced electronic components like polymer capacitors, inductors, and piezoelectric elements.

    Key Features:

    • Continuous LCR/DCR/sweep measurements with one instrument
    • Ultra-fast testing speeds: 1.5 ms (1 kHz), 0.5 ms (100 kHz)
    • High accuracy: ±0.08% basic accuracy for Z parameter
    • Ideal for low-ESR measurement of functional polymer capacitors
    • Suitable for resonance testing of piezoelectric elements
    • Accurate DCR and L-Q testing of inductors, coils, and transformers
  • The Hioki IM7580A is a compact, high-speed impedance analyzer for 1 MHz to 300 MHz testing, ideal for both production and R&D. It works seamlessly with the IM9201 SMD fixture for reliable component testing.

    Key Features:

    • 1 MHz to 300 MHz frequency range
    • 0.5 ms test speed
    • ±0.72% basic accuracy
    • Compact half-rack size with palm-sized test head
    • Reliable contact check functions
    • Frequency, level, and time sweeps in Analyzer Mode
    • RF I-V method for precise measurement
  • The Hioki IM7581 is a compact, high-speed impedance analyzer designed for accurate testing from 100 kHz to 300 MHz. It’s ideal for both production and development environments.

    Key Features:

    • 100 kHz to 300 MHz frequency range
    • 0.5 ms fastest test speed
    • ±0.72% basic accuracy
    • Compact half-rack size, palm-sized test head
    • Reliable contact check via DCR, Hi-Z reject, or waveform judgment
    • Supports frequency, level, and time sweeps in Analyzer Mode
    • Uses RF I-V method for precise measurement
  • The Hioki Impedance Analyzer IM7587 3 GHz provides precision, speed, and versatility for impedance measurements from 1 MHz to 3 GHz, ideal for both R&D and mass production applications in electronic component testing.

    Key Features:

    • Frequency range: 1 MHz to 3 GHz
    • Test speed: 0.5 ms
    • Measurement variability: 0.07%
    • Basic accuracy: ±0.65% reading
    • RF I-V measurement technique
    • Compact half-rack design with palm-sized test head
    • Robust contact check capabilities
    • Analyzer mode: frequency and level sweeps, time interval measurements
  • The Hioki MR6000 Memory HiCorder sets a new benchmark in waveform recording, combining cutting-edge technology, intuitive design, and world-class performance. Built from the ground up, it’s engineered to tackle both current and future measurement challenges with ease and precision.

    Key Features:

    • Large, intuitive touch panel for efficient and user-friendly operation
    • Simultaneous multi-channel isolation measurement at up to 200 MS/s (with High Speed Analog Unit U8976)
    • Significantly faster data saving for a seamless experience
    • Real-time data saving without interrupting ongoing measurements
  • The Hioki Rack-mounted Multi-channel System Recorder (MR8741/MR8740) is a powerful, high-speed, single-device solution for waveform recording and generation. Ideal for test systems, it offers high-resolution, isolated multi-channel measurements with fast sampling capabilities.

    Key Features:

    • Integrated waveform recording and generation in one device
    • Equipped with DVM Unit MR8990 for high-accuracy 24-bit resolution measurements
    • Supports up to 16 channels (MR8741) for multi-channel testing
    • Isolated input between channels and from input to chassis (up to 300 V AC/DC)
    • High-speed sampling up to 20 MS/s
    • Compact rack-mountable design (4U height, under 180 mm depth)
    • Monitor display and setting access via DVI-D and mouse
    • Enables remote measurement and control via LAN
    • Browser-based screen monitoring or advanced control via Hioki 9333 LAN Communicator
  • The Hioki Memory Recorder is a high-speed, fully-isolated data acquisition system designed for precise and simultaneous measurement of multiple analog and logic signals. Ideal for testing, simulation, and system diagnostics, it combines waveform generation and recording in one powerful unit.

    Key Features:

    • Generate and record waveforms using a single device
    • Simulate issues by outputting previously recorded problematic waveforms to test devices
    • Supports 32 analog + 32 logic channels, expandable to 28 analog + 64 logic channels
    • High-speed sampling up to 20 MS/s with fully isolated inputs
    • Ensures safe measurement with complete analog input isolation
    • Equipped with a large-capacity 512M-word memory
    • Simultaneously measures high voltage and ultra-low voltage system signals



    • Superior Noise Reduction – Attenuates up to 24 dBA, making it perfect for quiet office environments.
    • Efficient Cooling – Six ultra-quiet fans expel up to 3 kW of thermal heat.
    • Flexible Installation – Available in 24U, 35U, and 44U heights with 36” and 42” depths.
    • Durable Construction – Made from 12-gauge US-finished steel with a maximum load capacity of 2,000 lbs.
    • Comprehensive Security – Key lockable front and rear doors, with optional locking side panels.
    • Acoustic Lined Panels – Fully lined with sound-absorbing material for maximum noise control.
    • Versatile Color Options – Available in 7 standard colors including Black, Pearl White, Granite, Platinum, White, Dark Grey, and Blue.
    • Complete Accessibility – Removable side panels for easy installation and maintenance.
    • Integrated Temperature Display – Real-time temperature monitoring with remote sensor support.
    • Cable Management – Bottom rear cable entry accommodates up to 500 CAT 5 cables.
