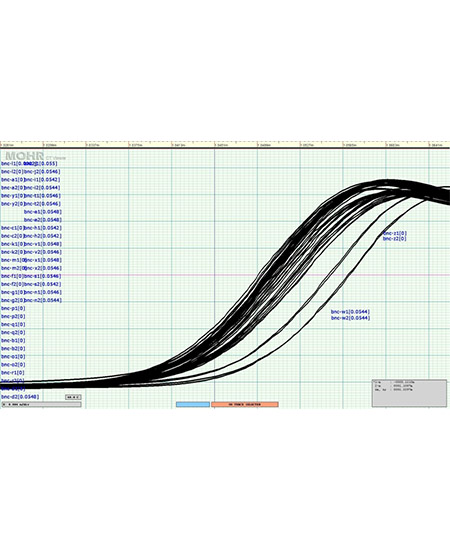

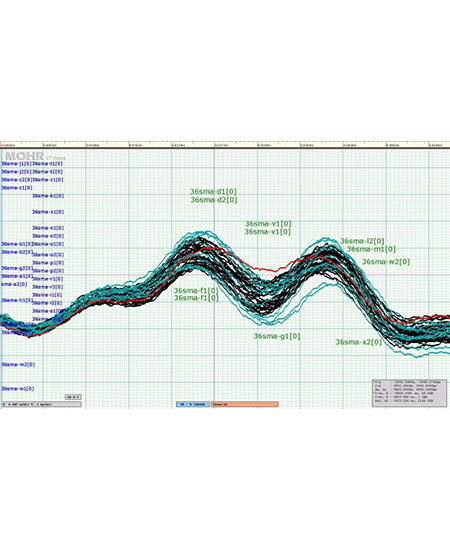

  • A powerful Windows-based software package for managing and analyzing TDR data from CT100 Series and other TDR instruments.

    Key Features:

    • Archive, analyze, and compare TDR waveforms with ease
    • Compatible with CT100 Series TDRs and other instruments via CSV import
    • Live LAN/WAN/Internet streaming and remote control of CT100 units
    • Powerful tools for QA/QC, fault detection, and cable performance tracking
    • Supports SQL database storage and flexible file management
    • Includes advanced transforms: subtraction, derivative, and averaging
    • Fine-tune velocity of propagation (VoP) up to 6 significant digits

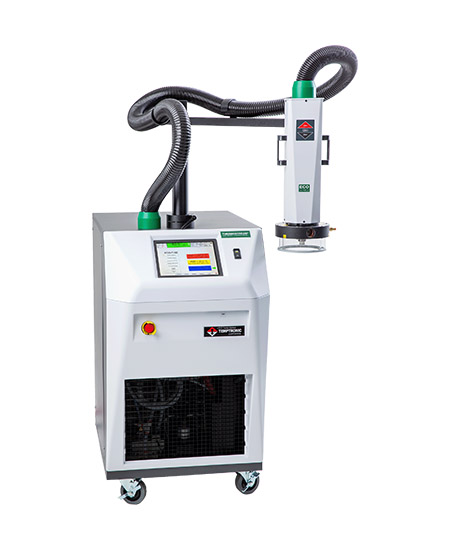

  • The ECO-710E/810E ThermoStream® systems are eco-friendly temperature forcing solutions designed for precise electronic testing, delivering fast temperature transitions with quiet, energy-efficient operation.

    Key Features:

    • Wide temperature range: -80°C to +225°C
    • Eco-friendly design compliant with EU 517/2014 (no annual leak testing)
    • Quiet operation at just 56 dBA
    • Energy-efficient performance on a 20-amp circuit
    • Rapid temperature transitions for consistent results
    • Touchscreen controls with embedded software (no Windows® OS)
    • No need for LN2 or LCO2 cooling agents
    • Remote setup and communication capabilities
    • Ideal for 24/7/365 lab or production use



  • The industry’s highest-resolution portable TDR cable tester, the MOHR CT100 delivers unmatched accuracy for coaxial and twisted-pair cables in the field, lab, or production floor.

    Key Features:

    • Resolves connector details < 1 cm (8–10x sharper than competitors)
    • Tests coaxial, twisted-pair, and multi-conductor cables
    • Exceeds Tektronix® 1502C TDR specifications
    • Accurate impedance and cable length measurement with 16-bit ADC
    • Detects intermittent faults with up to 250,000 samples/sec
    • Integrated LAN/WAN/Internet remote control with CT Viewer™ 2 software
    • Lightweight, portable design with 4.3″ color LCD
    • Used by the U.S. Navy as the Tektronix 1502 series replacement



  • RapidTemp™ BT28 ThermoStream® Benchtop Thermal Test System

    Key Features:

    • Compact and lightweight design under 80 lbs (38 kg) for easy benchtop integration
    • Wide temperature range from -28°C to +225°C for versatile testing
    • High airflow capacity of 14 scfm for precise and reliable temperature forcing
    • SwiftTherm™ technology for ultra-fast temperature transitions
    • Detachable 9 ft. touchscreen interface for flexible operation
    • ECO-Stream design: quieter, smaller, and energy-efficient
    • Embedded control system with Ethernet, IEEE-488, RS232, and USB connectivity
    • Customizable test setups with data logging via USB storage



  • Key Features:

    • Wide temperature range from -65°C to +300°C
    • Compatible with 150mm, 200mm, and 300mm wafer sizes
    • Options for mechanical refrigeration, glycol/water, or air cooling
    • Heating methods: ThermoElectric or Resistive, depending on model
    • Retrofits available for existing probe stations
    • Customizable surface plating: gold or nickel
    • Supports advanced applications like low leakage probing (fA level) and high-voltage probing (up to 10kV)



  • ThermoSpot Systems – Benchtop Direct Contact Cooling and Heating Solution

    The Temptronic® ThermoSpot® delivers high-performance temperature control for IC testing and high-Watt devices with unmatched cooling capacity.

    Key Features:

    • Reliable thermal cycling without thermoelectric modules
    • Wide temperature range: -65°C to +175°C
    • Cooling power: 40W at -40°C, 55W at -55°C, 120W at -40°C
    • Fast transitions: <35 seconds from +25°C to -40°C
    • Secure thermal contact with ThermoBridge™ design
    • Touch-screen with data logging and programmable settings
    • Multiple communication ports: Ethernet, USB, IEEE, RS232



  • ThermoSpot® Systems – Direct Contact Thermal Test Solutions

    Key Features:

    • Temperature range: -65°C to +175°C
    • Cooling power up to 120W at -40°C
    • Fast transition rate (<35 sec from +25°C to -40°C)
    • Reliable thermal cycling without thermoelectric modules
    • Flexible thermal probe with interchangeable ThermoBridge™
    • Touchscreen controller with programmable profiles
    • Connectivity options: Ethernet, USB, IEEE, RS232
    • Easy, secure connection to in-circuit or socketed DUTs

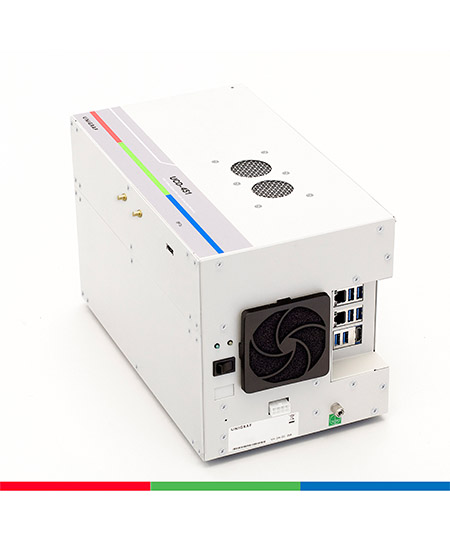

  • A professional-grade video generator designed for testing Dolby Vision, HDR, and DSC on DisplayPort™ 1.4a sink devices. Ideal for R&D debugging, compliance testing, and high-resolution validation.

    Key Features:

    • Supports 8K @ 30 Hz and 4K @ 120 Hz resolutions (8K @ 60 Hz with DSC)
    • DP 1.4a Link Layer CTS tool for sink testing*
    • HDCP 2.2/2.3 CTS tool for transmitter compliance*
    • HDR and Dolby Vision test capability with 32 GB extended memory
    • Supports DSC, FEC, LTTPR, and MST (4 streams)
    • USB-C output with included converter
    • No restrictions on video format, audio format, frame rate, or infoframes



  • Applications:

    • Aerospace & Defense – Avionics, MIL-STD-704, EMC compliance, 400Hz & wild frequency testing
    • EV Charging & V2G/V2H Testing – On-board chargers, grid-tied inverters, smart grid simulation
    • Energy Storage & Renewable Systems – Home ESS, solar PV/grid-tied inverter testing
    • Industrial Power Simulation – Frequency conversion, harmonic analysis, transient simulations
    • Smart Grid & Compliance Testing – IEC 61000, RTCA DO-160, IEEE 1547, and more



  • Applications

    • Aerospace & Avionics – Frequency conversion (400Hz & wild frequency testing), MIL-STD compliance
    • EV Charging & Power Electronics – On-board chargers (OBC), V2G/V2H testing, battery simulation
    • Renewable Energy Systems – Solar PV/grid-tied inverter testing, home ESS & smart grid simulations
    • Power Supply & Industrial Testing – AC/DC power supply evaluation, network server & data center testing
    • Research & Development Labs – High-frequency power testing, compliance verification, transient simulations



  • Applications

    • Aerospace & Avionics Testing – 400Hz & wild frequency (360Hz-800Hz) compliance
    • EV Charging & Power Electronics – AC/DC conversion, V2G, V2H, and OBC testing
    • Renewable Energy & Smart Grid – Solar PV inverters, energy storage & grid simulation
    • Industrial Power & Manufacturing – AC power supply testing, production line QA
    • R&D & Compliance Labs – IEC61000, MIL-STD-704, RTCA DO-160 testing
    • Railway Power Systems – 16.6Hz & 400Hz frequency compliance



  • High-Power 4-Quadrant AC & DC Power Source with Load Option

    • Powerful & Versatile: 12kVA / kW to 21kVA / kW in a 4U chassis. Parallel units up to 168kVA/kW (single cabinet)or 252kVA/kW (dual cabinet).
    • Multi-Phase Flexibility: Supports single-phase, split-phase, and three-phase configurations with AC, DC, or AC+DC output.
    • Grid Simulation & Compliance Testing: Emulates real-world power grid conditions, simulating disturbances, harmonics, and interharmonics for accurate renewable energy testing (solar inverters, EV charging, microgrid, and UPS applications).
    • Regenerative Efficiency: Over 90% energy recovery back to the grid reduces power consumption and operational costs.
    • Advanced Control & Monitoring: SmartSource Suite enables remote control via an intuitive web browser interface with LAN, USB, GPIB, and RS232 connectivity.



  • High-Power 4-Quadrant AC & DC Power Source

    • High Power Density: Available in 30kVA/kW, 45kVA/kW, and 55kVA/kW models, with parallel cabinets scaling up to 550kVA/kW.
    • Versatile Output Capability: AC, DC, or AC+DC modes in single-phase, split-phase, or three-phase configurations.
    • Dual Constant Power Voltage Ranges:
      • AC Voltage: 0-240V L-N / 0-415V L-L & 0-480V L-N / 0-830V L-L
      • DC Voltage: 0-340Vdc & 0-680Vdc
    • Grid Compliance Testing: Meets global standards like IEEE 1547, UL 1741, IEC 61000-3, IEC 61000-4
    • Regenerative Power Efficiency: >90% energy recovery back to the grid, reducing power waste and operational costs
    • PHIL Interface for Hardware-in-the-Loop (HIL) Testing: High-speed analog I/O for real-time frequency, voltage, and current control.
    • SmartSource Suite for Remote Testing: Web-based real-time monitoring and control via LAN, USB, GPIB, and RS232.



  • 4-Quadrant Programmable Load with Energy Recovery

    • Powerful & Scalable: 6kVA/kW to 21kVA/kW in a compact 4U chassis. Parallel units up to 168kVA/kW per cabinet or 252kVA/kW in dual cabinets.
    • Versatile Load Simulation: AC and DC load capability with single-phase, split-phase, and three-phase configurations.
    • Grid-Ready Compliance Testing: Supports IEEE 1547, UL 1741, IEC 61000-3, IEC 61000-4 compliance testing.
    • Energy-Efficient Regeneration: Returns over 90% of absorbed power back to the grid, reducing operational costs.
    • Dynamic Load Emulation: Simulates linear and non-linear loads, harmonics, transient conditions, and waveform distortions.
    • High-Speed Smart Control: SmartSource Suite for real-time test automation and remote monitoring.



  • High-Power AC/DC Load Simulator with PHIL Interface

    • Scalable Power Density: Available in 30kVA/kW, 45kVA/kW, and 55kVA/kW models, with parallel cabinets up to 550kVA/kW.
    • Versatile AC/DC Load Capability: Supports single-phase, split-phase, three-phase, and multi-channel configurations.
    • Dual Constant Power Voltage Ranges:
      • AC Voltage: 5-220V L-N / 9-380V L-L & 5-440V L-N / 9-760V L-L
      • DC Voltage: 0-335Vdc & 9-650Vdc
    • Advanced PHIL Interface (Option H): High-speed analog I/O for real-time frequency, voltage, and current control.
    • Regenerative Power Efficiency: Returns over 90% of absorbed energy back to the grid, reducing operational costs & heat dissipation.
    • Dynamic Load Simulation: Simulates harmonics, transient conditions, and waveform distortions for real-world power testing.
    • SmartSource Suite for Remote Control: Web-based monitoring and test automation via LAN, USB, GPIB, and RS232.



  • The AZX Series (Regenerative AC / DC Power Source) is a family of high power, single, split and three phase, AC, DC and AC+DC output capable Power Sources with full energy recovery to the AC mains when sinking power from the equipment under test. Available models range from 30 kVA to 440 kVA. Using a modern color touch screen based user interface for ease of use, the AZX Series is cost effective and fully programmable for both basic frequency conversion and advanced AC power line or DC power disturbance test applications requiring up to 1000 Hz fundamental frequency.

    The energy recovery capability allows both sourcing and sinking of current and power up to 100% of rated power. Adding the Load Option (Option L) adds full electronic regenerative AC & DC Load programming capability to the AZX.
