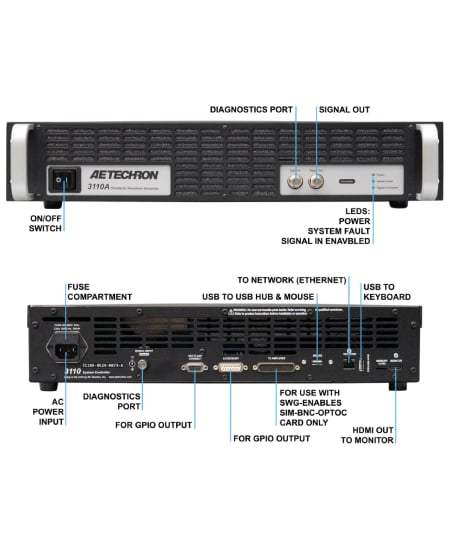

3110A Standards Waveform Generator

The 3110A Standards Waveform Generator is a feature-rich, intuitive tool for engineers conducting EMC testing. From automotive to aviation applications, this unit simplifies the most complex test routines.

Key Features:

3,400+ Built-In Tests for automotive and industry standards
Fast Rise Time: 3 µs full-scale with up to 1 MHz bandwidth
Segment-Based Waveform Creation for custom sequences
Free Lifetime Standards Updates
Automated Triggering via GPIO or LAN
Flexible Output Control including frequency, amplitude, and DC offset
Extremely Precise Resolution: 0.01 Hz frequency, 76 µV amplitude
Supports All Common Waveforms: Sine, square, triangle, DC, ripple, and more

REQUEST A QUOTE

Description

Advanced Signal Control in an Easy-to-Use Format

The 3110A Standards Waveform Generator from AE Techron is a sophisticated yet user-friendly signal generation system built to meet today’s rigorous EMC testing demands. Whether you’re testing to automotive or aviation standards, the 3110A is equipped with over 3,400 preloaded industry-standard tests, providing out-of-the-box readiness for compliance across multiple sectors.

Fast, Flexible, and Exceptionally Configurable

The 3110A provides powerful signal generation capabilities across a wide frequency range from DC to 1 MHz, with an impressive 3 µs full-scale rise time. Its software is built around a modular waveform segment system, allowing users to generate and sequence signals including sine, square, ripple, triangle, and DC with precision.

Each segment supports modifications to frequency, amplitude, DC offset, and duration—with options to loop, trigger, or chain sequences, which is essential for simulating complex test profiles like those required in Toyota and GM specifications.

Precision That Saves Time and Increases Efficiency

The 3110A eliminates manual test creation time by offering template playback, GPIO and LAN control integration, and flexible scripting. Whether you’re performing short wave bursts or extended stress simulations lasting weeks, the 3110A supports waveform durations from 50 µs to multiple months.

Designed for Modern EMC Labs

This generator can operate as a standalone or network-controlled system, making it suitable for any lab configuration. When combined with AE Techron amplifiers (like the 7234), it can simulate dropouts, surges, and other LF EMC conditions with full precision.

With its free lifetime updates, compact footprint, and robust software architecture, the 3110A is more than a waveform generator—it’s a complete test control solution designed to grow with evolving standards.
