Aim-TTi CPX Series Power Supply

Reliable, flexible, and programmable power delivery for bench, system, and ATE applications.

Key Features:

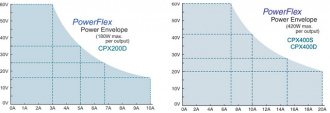

PowerFlex technology for variable V/A within power limits
Up to 60V and 20A, 180W or 420W per output
Dual or single isolated outputs
CV or CC operation with settings lock (S-Lock)
Selectable OVP trips and remote sense terminals
RS232, USB, LAN/LXI standard on P models
GPIB available as option (P models only)
Compact, rugged 3U quarter or half rack design
Analog remote control (CPX400SA model)

Description

Precision Power Delivery for Professional Applications

The Aim-TTi CPX Series Power Supply delivers dependable, flexible performance designed for laboratory, system integration, and automated test environments. Engineered with Aim-TTi’s advanced PowerFlex regulation, it allows users to achieve varied voltage and current combinations up to the maximum power limit, giving users ultimate output control.

Versatile Output and Exceptional Safety

Choose from single or dual output models capable of 60V and 20A per channel, with 180W or 420W max power per output. Each output is fully isolated, allowing flexible configuration in series or parallel, and supports both constant voltage (CV) and constant current (CC) modes. The built-in S-Lock feature secures voltage/current settings to avoid accidental changes, while adjustable OVP ensures test safety.

Remote Access and Compact Design

The CPX Series integrates easily with remote systems via USB, RS232, and LAN/LXI, while “P” models offer optional GPIB for extended automation. The CPX400SA includes an isolated analog control interface for enhanced analog signal control. Its compact 3U form factor (quarter or half rack width) ensures a space-saving solution ideal for benchtop or rack-mount installations.

Whether for research, product development, or system integration, the Aim-TTi CPX Series Power Supply provides professional-grade precision and control.

Product Specifications Table

Model	Outputs	Voltage Range	Current Range	Max Power per Output	Interfaces
CPX200D	Dual	2 × 60V	2 × 10A	180W	None
CPX200DP	Dual	2 × 60V	2 × 10A	180W	USB, RS232, LAN/LXI, GPIB (opt)
CPX400S	Single	60V	20A	420W	None
CPX400SA	Single	60V	20A	420W	Isolated Analog Control
CPX400SP	Single	60V	20A	420W	USB, RS232, LAN/LXI, GPIB (opt)
CPX400D	Dual	2 × 60V	2 × 20A	420W	None
CPX400DP	Dual	2 × 60V	2 × 20A	420W	USB, RS232, LAN/LXI, GPIB (opt)
