MEMORY HiCORDER MR8880

Portable Memory Recorder for High Voltage Testing and Fully Isolated Data Acquisition Across 4 Channels



REQUEST A QUOTE



Description

Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple quick-changing phenomena due to complete isolation between channels and from each channel to the ground. The MR8880-20 is a data acquisition (DAQ) recorder built in with 4 analog channels that can accept direct input of 600V, enabling measurements of 3-phase systems. MEMORY HiCORDER MR8880

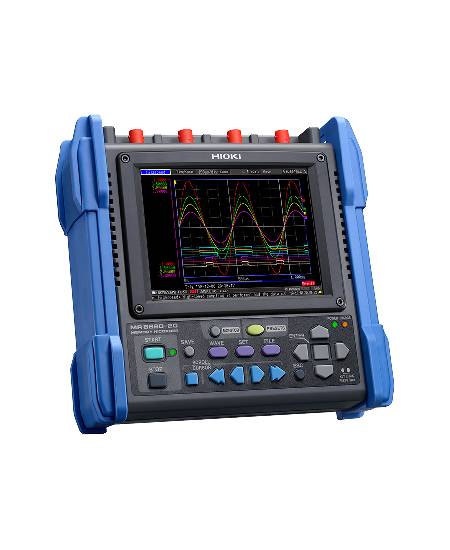

MR8880-20 4 ch

Note: Input cords and Battery Pack are not included. Purchase the cords appropriate for your application separately. Printer Unit MR9000 is optional and sold separately.CEUSB2

Key Features MR8880

• CAT III 600V isolation performance; directly measure a 480V power line

• 4 completely isolated channels let you simultaneously record data on a 3-phase power line plus have one extra channel

• Tough against harsh environments; -10°C to 50°C operating temperature range

• Built to withstand mechanical shocks and vibrations (ships standard with side protectors)

• Make settings easily with PRESETS function

■ Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)



Number of channels



4 analog channels + 8 logic channels (standard)
Note: Isolated analog channels, isolated input and frame, logic has common GND



Measurement ranges (10 div full-scale)



4 channels of voltage measurement; mode switchable between instantaneous waveform or RMS value, 10 mV to 100 V/div, 13 ranges, resolution: 1/640 of range
RMS value mode: 30 Hz to 10 kHz, Crest factor: 2



Max. rated voltage



Between terminals: 600 V AC/DC, Between terminal to earth: 600 V AC/DC CAT III; 300 V AC/DC CAT IV



Frequency characteristics



DC to 100 kHz (±3dB)



Time axis (High-speed function)



100 µs to 100 ms/div, 10 ranges, Sampling period: 1/100 of range



Recording intervals (Real-time function)



100 µs to 1 minute, 19 selections (simultaneous sampling in all channels)



Measurement functions



High-speed function (high speed recording)
Real-time function (actual time recording)



Memory capacity



14-bits × 1M-words/ch (1 word = 2 bytes)



Removable storage



CF card slot ×1 (Up to 2 GB), USB 2.0 memory ×1



Printing



[Printer unit is option] 112 mm (4.41 in) × 18 m (59.06 ft), thermal paper roll, Recording speed : 10 mm (0.39 in)/sec
Note: Printing is not supported when using alkaline batteries



Display



5.7-inch VGA-TFT color LCD (640 × 480 dots)



Displayable languages



English, Japanese, Chinese



Communication interfaces



USB 2.0 mini-B receptacle × 1; Transfers files from the installed CF card or USB memory stick to a PC when connected, and External PC control

Power supply

AC adapter Z1002: 100 to 240 V AC (50/60 Hz), 45 VA (include AC adapter, when Real-time recording), 107 VA (include AC adapter, when Real-time recording and printing)
Battery pack Z1000: AC adapter has priority when used in combination with battery pack, recharge with AC adapter 3 hours, Continuous use 3 hours (with back-light ON)
LR6 (AA) alkaline batteries ×8, Continuous use 40 minutes, (with back-light ON, cannot be used with the Printer unit)
DC power supply: 10 to 28 V DC (cable available by special order)



Dimensions and mass



205 mm (8.07 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 1.66 kg (58.6 oz) (with the Battery pack installed)
When printer is combined – with main unit: 303 mm (11.93 in)W × 199 mm (7.83 in)H × 67 mm (2.64 in)D, 2.16 kg (76.2 oz) (with the Battery pack installed)



Accessories



Instruction manual ×1, AC adapter Z1002 ×1, Alkaline battery box ×1, Strap ×1, USB cable ×1, Application disk (Wave viewer Wv, Communication commands table) ×1

LabVIEW and MATLAB support

Compatible models LabVIEW MATLAB script
MR8880-20 N/A N/A
