  • Engineered for cutting-edge EV, automotive, and aerospace compliance, the HVR 1000 is a complete high-voltage ripple test system built to handle demanding lab environments with unmatched precision and safety.

    Key Features:

    • Wide Frequency Range: AC ripple from 10 Hz to 200 kHz
    • High Voltage Output: Up to 1000V DC and 60 kW power
    • Waveform Versatility: Generates sine, triangle, and custom signals
    • Robust Safety: Multi-layer overvoltage, overcurrent, and thermal protection
    • Zero Licensing Fees: Future test standard updates included
    • User-Centric Interface: Intuitive controls with HDMI and LAN support
    • Flexible Configuration: Available as HVR 1000RG (Ripple Generator only)
    • Space-Saving Design: Small footprint, ideal for compact lab setups



  • The HVR 1200RG Ripple Generator is a powerful, next-gen solution tailored for electric vehicle high-voltage testing. Designed for use with traction inverters and HIL test stands, this rugged system delivers unmatched ripple current and voltage capabilities across a wide frequency range.

    Key Features:

    • Ripple Current Output: Up to 600 A peak
    • Voltage Range: 0 – 150 Vp (300 Vp-p)
    • Wide Frequency Support: 150 Hz to 300 kHz
    • DC Voltage Compatibility: 0 – 1200 V (or up to 2000 V in bridged mode)
    • Data Monitoring: Real-time tracking of voltage, current, and impedance
    • Built-In Protections: Handles short circuits and noisy DUTs effortlessly
    • Modular & Expandable: Configurable for current and future EV standards
    • Noise-Resistant: Engineered to operate accurately in high-noise environments

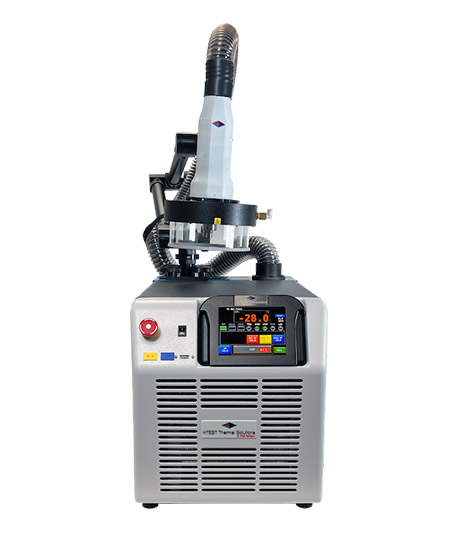

  • RapidTemp™ BT28 ThermoStream® Benchtop Thermal Test System

    Key Features:

    • Compact and lightweight design under 80 lbs (38 kg) for easy benchtop integration
    • Wide temperature range from -28°C to +225°C for versatile testing
    • High airflow capacity of 14 scfm for precise and reliable temperature forcing
    • SwiftTherm™ technology for ultra-fast temperature transitions
    • Detachable 9 ft. touchscreen interface for flexible operation
    • ECO-Stream design: quieter, smaller, and energy-efficient
    • Embedded control system with Ethernet, IEEE-488, RS232, and USB connectivity
    • Customizable test setups with data logging via USB storage



  • Showcasing a large 10” panel withultra-bright, energy-efficientmicroLED technology, deliveringdynamic visuals and seamlessintegration for next-generationintelligent vehicles.

    Ket Features:

    • OVERVIEWUltra-High Brightness: Engineered to perform in a widerange of lighting conditions, ensuring excellent visibility inboth indoor and outdoor environments.
    • Robust Durability: Built to withstand demandingconditions for long-term reliability.
    • Ultra-Thin & Lightweight: Designed for seamlessintegration into compact spaces, leveraging microLED’sinherently slim profile without compromisingperformance.
    • Vibrant RGB Color Reproduction: Delivers rich, high-contrast visuals with precise color accuracy, enhancingvisuals for display applications.



  • Advancing automotive displayswith ultra-bright, energy-efficientmicroLED technology, enablingdynamic visuals and seamlessintegration for next-generationintelligent vehicles.

    Key Features:

    • OVERVIEWUltra-High Brightness: Engineered to perform in a widerange of lighting conditions, ensuring excellent visibility inboth indoor and outdoor environments.
    • Robust Durability: Built to withstand demandingconditions for long-term reliability.
    • Ultra-Thin & Lightweight: Designed for seamlessintegration into compact spaces, leveraging microLED’sinherently slim profile without compromisingperformance.
    • Vibrant RGB Color Reproduction: Delivers rich, high-contrast visuals with precise color accuracy, enhancingvisuals for display applications.



  • Revolutionizing automotivelighting with ultra-bright, energy-efficient microLED displays,enabling adaptive illuminationand seamless integration for next-generation intelligent vehicles.

    Key Features:

    • OVERVIEWUltra-High Brightness: Engineered to perform in a widerange of lighting conditions, ensuring excellent visibility inboth indoor and outdoor environments.
    • Robust Durability: Built to withstand demandingconditions for long-term reliability.
    • Ultra-Thin & Lightweight: Designed for seamlessintegration into compact spaces, leveraging microLED’sinherently slim profile without compromisingperformance.
    • Segment-Driven Intelligence: Enables optimal messagingthrough precisely controlled lighting segments, enhancingintelligent lighting capabilities for smart automotiveapplications and other high-performance devices.



  • Transforming automotive lightingwith ultra-bright, energy-efficientmicroLED displays, deliveringprecision illumination andseamless integration for next-generation vehicles.

    Key Features:

    • OVERVIEWUltra-High Brightness: Engineered to perform in a widerange of lighting conditions, ensuring excellentvisibility in both indoor and outdoor environments.
    • Robust Durability: Built to withstand demandingconditions for long-term reliability.
    • Ultra-Thin & Lightweight: Designed for seamlessintegration into compact spaces, leveraging microLED’sinherently slim profile without compromisingperformance.
    • Power-Efficient Design: Consumes significantly lesspower compared to traditional display technologies.

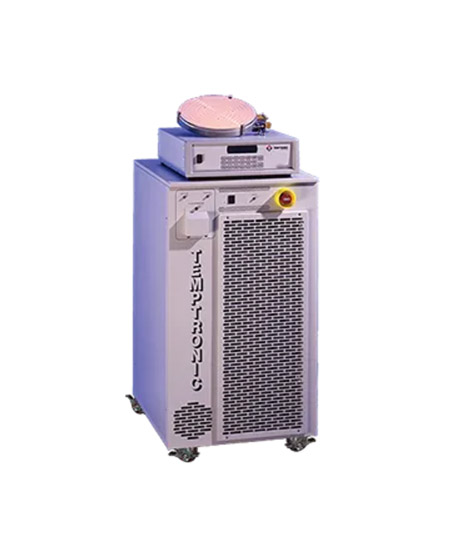

  • Key Features:

    • Wide temperature range from -65°C to +300°C
    • Compatible with 150mm, 200mm, and 300mm wafer sizes
    • Options for mechanical refrigeration, glycol/water, or air cooling
    • Heating methods: ThermoElectric or Resistive, depending on model
    • Retrofits available for existing probe stations
    • Customizable surface plating: gold or nickel
    • Supports advanced applications like low leakage probing (fA level) and high-voltage probing (up to 10kV)

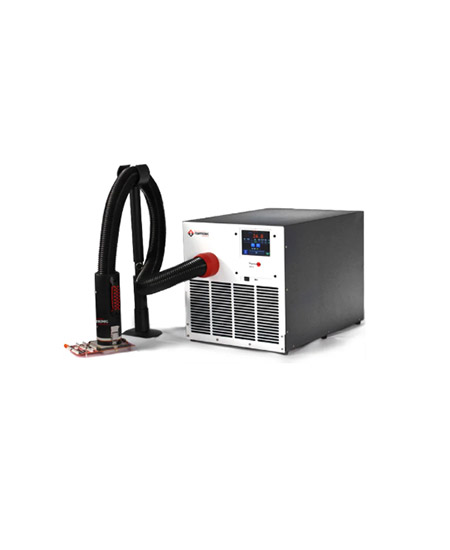

  • ThermoSpot Systems – Benchtop Direct Contact Cooling and Heating Solution

    The Temptronic® ThermoSpot® delivers high-performance temperature control for IC testing and high-Watt devices with unmatched cooling capacity.

    Key Features:

    • Reliable thermal cycling without thermoelectric modules
    • Wide temperature range: -65°C to +175°C
    • Cooling power: 40W at -40°C, 55W at -55°C, 120W at -40°C
    • Fast transitions: <35 seconds from +25°C to -40°C
    • Secure thermal contact with ThermoBridge™ design
    • Touch-screen with data logging and programmable settings
    • Multiple communication ports: Ethernet, USB, IEEE, RS232

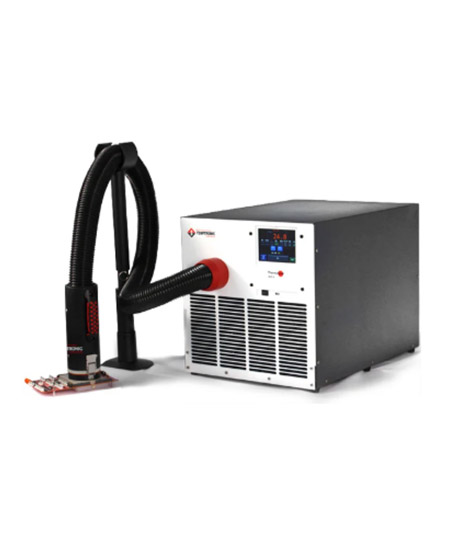

  • ThermoSpot® Systems – Direct Contact Thermal Test Solutions

    Key Features:

    • Temperature range: -65°C to +175°C
    • Cooling power up to 120W at -40°C
    • Fast transition rate (<35 sec from +25°C to -40°C)
    • Reliable thermal cycling without thermoelectric modules
    • Flexible thermal probe with interchangeable ThermoBridge™
    • Touchscreen controller with programmable profiles
    • Connectivity options: Ethernet, USB, IEEE, RS232
    • Easy, secure connection to in-circuit or socketed DUTs

  • Single-phase, 2U, industrial amplifier/battery simulator

    • Bench-sized
    • Powered from 120V/230VAC
    • Source and Sink (4 quadrant)
    • Rugged Design
    • 3-Year, No-Fault Warranty

    Key Performance Capabilities:

    • Drop outs and surges as fast as 1.2µs
    • Small signal response up to 1 MHz
    • 13.5 VDC at up to 28A
    • Field-selectable ±40V, 75V or 150V potential



  • -60° to +200°C

    • Economy model with high thermal capacity
    • Precise temperatures with fast transitions from -60 to 200°C
    • No annual leak testing required per EU 517/2014 F-Gas Regulation
    • Effective testing and conditioning of electronic components, boards, and modules
    • Available for 50 and 60Hz operation
    • No need for Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2)
    • Remote communications and set up and touch screen operation
    • User Defined Temperature Limits





  • Key Performance Capabilities:

    • Slew rates up to 60 V/µsec.
    • Up to 240A DC at +50VDC or –50VDC (4301-240 configuration).
    • Can provide pulses of up to 800 amps at voltages of up to ±100V (4301-240 configuration).
    • Adjustable compensation allows the system to maintain a 50V/2 µsec rise-time over a wide range of current outputs.



  • Key Performance Capabilities:

    • Bandwidth: DC to 50 kHz
    • Voltage: 0 to 250 VRMS; 0 to 350 VDC
    • Current: 100 to 500 ARMS
    • Distortion: 0.1%
    • Power: 4 kW to 20 kW*Power levels up to 5X rated power when driving reactive loads
    • High power efficiency and density

    *Models available with output from 4 kW to 20 kW (capable of up to 125 kVA).



  • Key Performance Capabilities:

    • 4-Quadrant – Can source and sink current
    • ±80V – DC supply for 12V to 48V systems; meets 80V surge requirements
    • 300 kHz Sine – DC ripple tests for all major standards
    • 3µs Rise Time – Exceeds surge and dropout slew rate requirements
    • 3mΩ DC Source Impedance – Out-performs ISO 7637-2 requirements
    • Supports ground reference and supply offset testing required for ISO 16750-2 Sect. 4.8 and other similar standards



    • Proven member of a modular Power Module family, more than 800 units are in service
    • Precision-regulated Bi-Polar output provides up to +12 to -12 Amps for Magnet loads.
    • Smooth operation through zero amps output current, no “Crossover” problems.
    • All 2510 MCOR12 Power Modules are identical and interchangeable.
    • Has two high-precision measurements of output current;
      • one is used to close the regulation control loop,
      • provides an independent monitoring signal to the Crate Interface Card.
    • Fault sensing circuitry in the module sets a Fault Latch which inhibits the output.
    • A (momentary) Sync input signal inhibits MOSFET switching when it is active (high);
      • this eliminate switching noise .
      • reduces power line noise during sensitive analog signal measurements.
