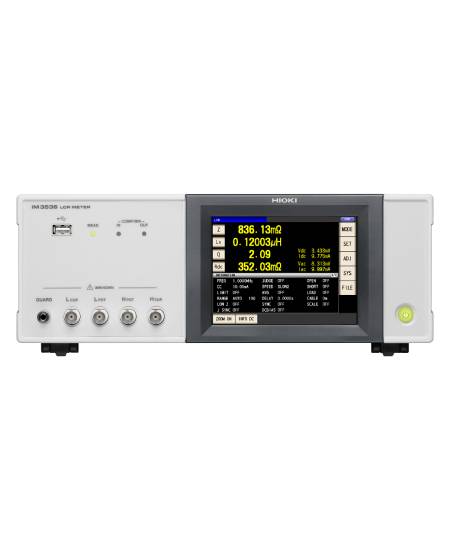

IM3536 LCR Meter for High-Precision Component Testing
The Hioki IM3536 LCR Meter sets the standard for general-purpose electronic component testing. Its wide measurement frequency range from DC to 8 MHz (customizable to 10 MHz) allows engineers to evaluate components under conditions that closely mimic real-world operation. This makes it particularly suitable for testing high-frequency power supply inductors, laminated ceramic capacitors, and electrolytic capacitors.
Fast, Reliable, and Accurate
With a measurement time of just 1 millisecond and an accuracy of ±0.05%, the IM3536 ensures rapid, precise readings without compromising reliability. The device can measure very low impedances, starting from 1 mΩ, with unmatched repeatability. Its DC bias function allows testing components under simulated operating voltages or industry-standard conditions, providing accurate performance assessment.
Versatile Applications
The IM3536 supports comprehensive analysis of electronic components:
- Capacitors: Measure capacitance accurately for both electrolytic and ceramic types across a broad frequency and voltage range.
- Inductors and Coils: Evaluate inductance, Q factor, and frequency characteristics, including self-resonant frequency considerations.
- Power Supply Components: Measure components with DC bias and high precision to ensure performance under operating conditions.
Easy Data Management
With interfaces for USB, GP-IB, and RS-232C, measurement data can be transferred seamlessly to a computer. Sample application software allows automatic measurement, data logging, and export to Excel or text files. This makes the IM3536 ideal for integration into automated production lines or R&D testing setups.
Technical Specifications Table
| Specification | Details |
| Product Name | Hioki IM3536 LCR Meter |
| Measurement Frequency | DC, 4 Hz – 8 MHz (customizable up to 10 MHz) |
| Test Speed | 1 ms (FAST mode) |
| Accuracy | ±0.05% rdg. |
| Measurement Range | Low-impedance from 1 mΩ |
| DC Bias Function | Supports testing under real-use conditions |
| Measurement Parameters | L, C, R, Z, Y, θ, Q, D (tanδ), Rs, Rp |
| Interfaces | USB, GP-IB, RS-232C |
| Display | Monochrome LCD |
| Applications | R&D, production line testing, power supply inductor evaluation, capacitor testing |
| Dimensions | Not specified |
| Included Accessories | CD-R (sample application software) |
| Probes/Test Fixtures | Sold separately |
