Accessories

Showing 17–32 of 40 results

  • IM9100 SMD Test Fixture - 01

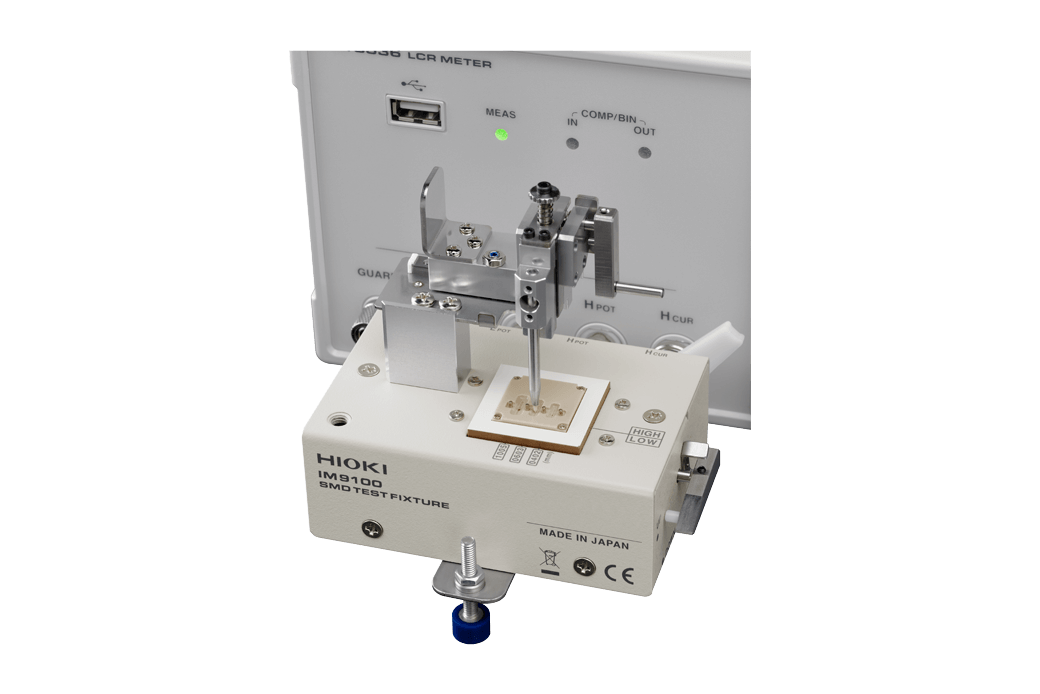

    IM9100 SMD Test Fixture - 03
    Quick View
    HIOKI E E CORPORATION IM9100 SMD Test Fixture

    The IM9100 SMD Test Fixture is a high-precision four-wire direct connection solution designed for accurate measurement of ultra-small SMD components with bottom electrodes.

    Key Features

    • Four-wire direct connection for high measurement accuracy
    • Designed for SMD components with bottom electrodes
    • Supports ultra-small sizes down to 01005 inch
    • Measurement frequency range from DC to 8 MHz
    • Stable BNC terminal connections for reliable testing
    • Compatible with Hioki IM35xx series LCR meters and impedance analyzers



    Learn More
  • IM9110 SMD Test Fixture - 01

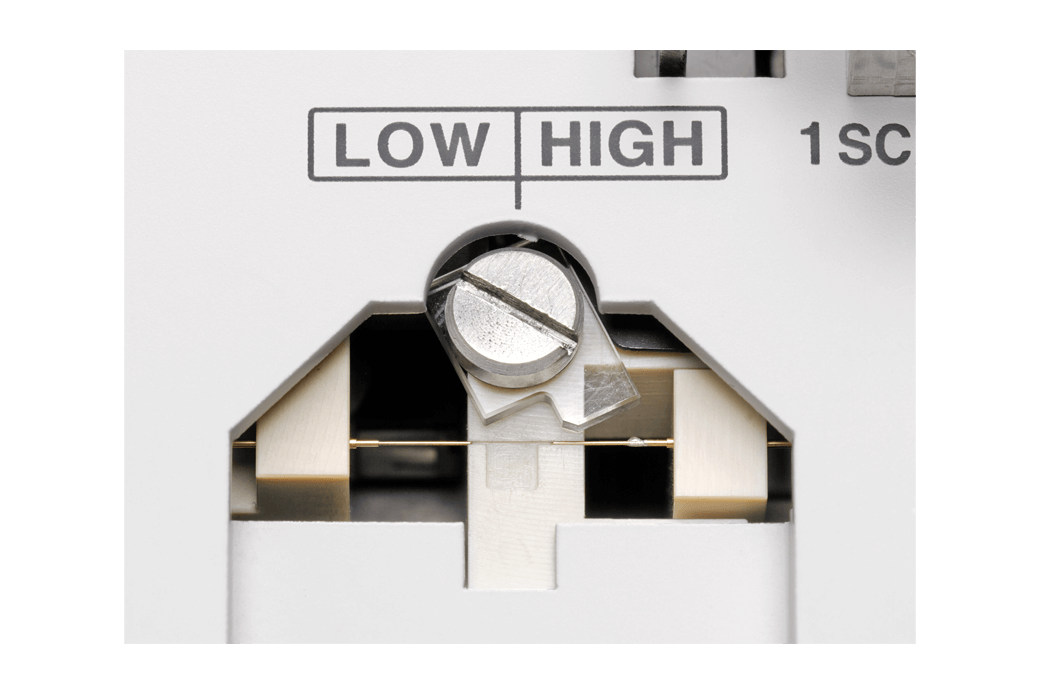

    IM9110 SMD Test Fixture - 03
    Quick View
    HIOKI E E CORPORATION IM9110 SMD Test Fixture

    The IM9110 SMD Test Fixture is a high-precision, two-terminal solution designed for stable and repeatable measurement of ultra-small SMD components using Hioki IM35xx series instruments.

    Key Features

    • Designed for ultra-small 008004 inch SMD components
    • Built-in cover prevents samples from popping out during testing
    • Advanced contact technology ensures repeatable measurement accuracy
    • Two-terminal connection from opposite sides for stable contact
    • Supports DC to 1 MHz measurement frequency range
    • Compatible with a wide range of Hioki LCR meters and impedance analyzers



    Learn More
  • IM9201 SMD Test Fixture - 01
    IM9201 SMD Test Fixture - 03
    Quick View
    HIOKI E E CORPORATION IM9201 SMD Test Fixture

    The Hioki IM9201 SMD Test Fixture is a high frequency test fixture designed exclusively for the IM7580 series impedance analyzers. Supporting six common SMD package sizes, it enables stable, repeatable impedance measurements up to 3 GHz for advanced component evaluation in R&D and production environments.

    Key Features

    • Designed exclusively for Hioki IM7580 series impedance analyzers
    • Supports impedance measurement up to 3 GHz
    • Accommodates six SMD package sizes in one fixture
    • Dual device guides allow fast and accurate component placement
    • Optimized for high frequency stability and repeatability
    • Ideal for RF components, ferrite beads, and chip inductors



    Learn More
  • IM9202 Test Fixture - 01

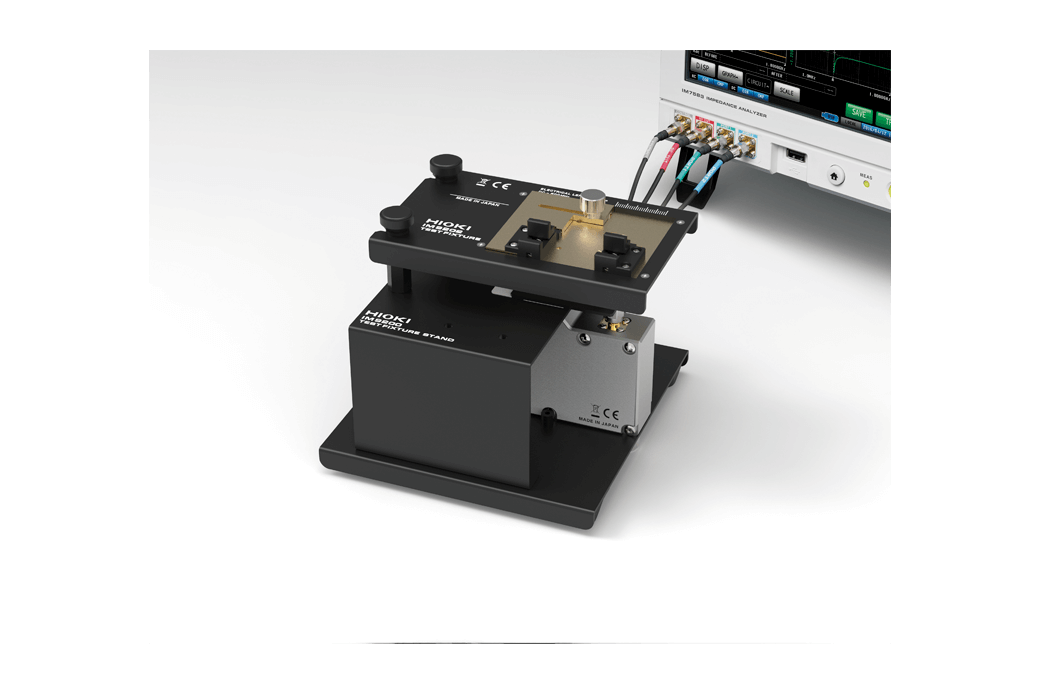

    IM9202 Test Fixture - 03
    Quick View
    HIOKI E E CORPORATION IM9202 SMD Test Fixture

    The IM9202 Test Fixture is an all-in-one solution designed for accurate high frequency impedance measurements up to 600 MHz when used with the Hioki IM7580 series.

    Key Features

    • Supports high frequency impedance testing up to 600 MHz
    • Designed exclusively for Hioki IM7580 series impedance analyzers
    • Measures SMD, leaded, through-hole, RFID, and NFC components
    • Helps identify self-resonance frequency and equivalent series resistance
    • Accommodates a wide range of component shapes and sizes
    • Stable staging mechanism ensures reliable and repeatable measurements



    Learn More
  • L2001 Pincher Probe - 01
    Quick View

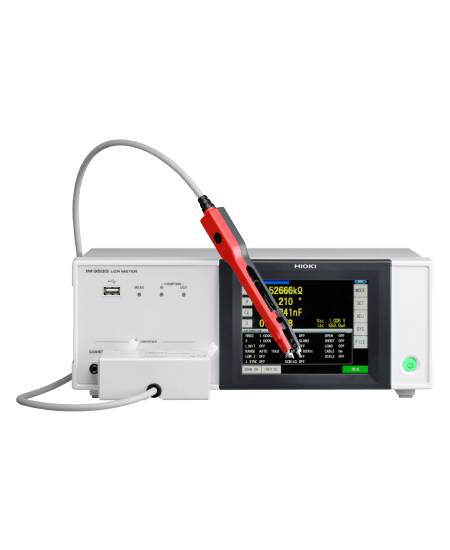

    HIOKI E E CORPORATION L2001 Pincher Probe

    The L2001 Pincher Probe is a compact and reliable measurement accessory designed for fast and accurate testing of chip components using Hioki LCR meters and impedance analyzers.

    Key Features

    • Designed for direct connection to Hioki LCR meters and impedance analyzers
    • Two-terminal tip electrodes with four-terminal pair configuration for improved accuracy
    • Supports measurement of chip components starting from 0603 inch size
    • Replaceable contact tips for extended usability and flexibility
    • Usable frequency range from DC to 8 MHz
    • Includes standard IM9901 contact tips for immediate setup



    Learn More
  • Logic Probe 9320-01
    Logic Probe 9320-01
    Quick View
    HIOKI E E CORPORATION Logic Probe 9320-01

    The Logic Probe 9320-01 is designed to detect voltage presence and relay contact signals when used with Hioki Memory HiCorders. With fast response speed and selectable input thresholds, it is ideal for logic signal monitoring, troubleshooting, and system verification.

    Key Features

    • Four input channels with common ground
    • Detects voltage signals and relay contact signals
    • Three selectable digital input thresholds
    • Supports pulse widths down to 500 ns
    • Compatible with Memory HiCorders using miniature terminals
    • Compact and easy to deploy in test environments



    Learn More
  • Logic Probe 9327

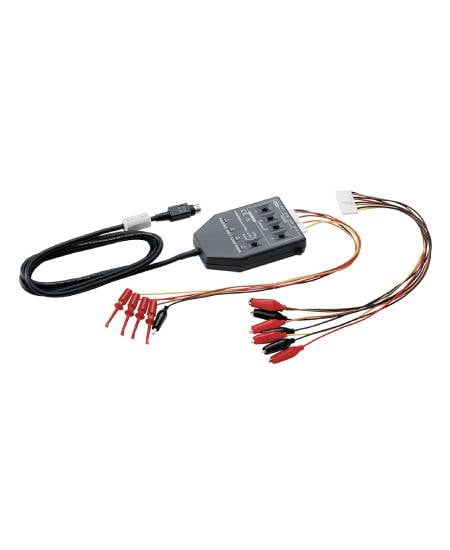

    Logic Probe 9327
    Quick View
    HIOKI E E CORPORATION Logic Probe 9327

    The Logic Probe 9327 is designed for fast and accurate detection of voltage and relay contact signals when used with Hioki Memory HiCorders. Its high speed response and flexible input options make it ideal for control signal monitoring and troubleshooting.

    Key Features

    • Detects Hi and Lo voltage or relay contact signals
    • Four input channels with common ground configuration
    • Switchable digital input or contact input modes
    • Three selectable digital input thresholds at 1.4 V, 2.5 V, and 4.0 V
    • Supports pulse widths as short as 100 ns
    • Compact design with miniature connector for Memory HiCorders



    Learn More
  • LSX1491X Single PXIe - 01
    LSX1491X Single PXIe - 02
    Quick View
    Tabor Electronics Ltd LSX1491X Single PXIe

    The LSX1491X Single PXIe is a high-performance 14GHz single-channel microwave signal generator in a compact PXIe module. Designed for precision and flexibility, it features ultra-fast frequency switching (<10 µs), coherent operation, and versatile AM, FM, PM, Sweep, and Pulse modulation. Its small footprint and advanced connectivity make it ideal for radar systems, electronic warfare, secure communications, and automated RF testing.

    Key Features

    • Single PXIe channel up to 14 GHz
    • Ultra-fast frequency switching <10 µs
    • Coherent frequency operation
    • Phase noise: -133 dBc/Hz @1 GHz, 10 kHz offset
    • AM, FM, PM, Sweep & Pulse modulation
    • Pulse modulation with high on/off ratio (~70 dB)
    • Compact modular PXIe form factor
    • LAN, USB, and SPI connectivity
    • SCPI and VISA programmable control
    • Optional low-power and extended power ranges



    Learn More
  • LSX2091X Single PXIe - 01
    LSX2091X Single PXIe - 02
    Quick View
    Tabor Electronics Ltd LSX2091X Single PXIe

    The LSX2091X Single PXIe is a high-performance 20GHz single-channel microwave signal generator in a compact PXIe module. Engineered for precision and flexibility, it offers ultra-fast frequency switching (<10 µs), coherent operation, and versatile AM, FM, PM, Sweep, and Pulse modulation. Its small footprint and advanced connectivity make it ideal for radar systems, electronic warfare, secure communications, and automated RF testing environments.

    Key Features

    • Single PXIe channel up to 20 GHz
    • Ultra-fast frequency switching <10 µs
    • Coherent frequency operation
    • Phase noise: -133 dBc/Hz @1 GHz, 10 kHz offset
    • AM, FM, PM, Sweep & Pulse modulation
    • Pulse modulation with high on/off ratio (~70 dB)
    • Compact modular PXIe form factor
    • LAN, USB, and SPI connectivity
    • SCPI and VISA programmable control
    • Optional low-power and extended power ranges



    Learn More
  • LSX4091X Single PXIe - 01
    LSX4091X Single PXIe - 03
    Quick View
    Tabor Electronics Ltd LSX4091X Single PXIe

    The LSX4091X Single PXIe is a 40GHz single-channel modular microwave signal generator designed for high-precision RF and microwave applications. Featuring ultra-fast <10µs frequency switching, coherent operation, and versatile AM, FM, PM, Sweep, and Pulse modulation, this PXIe module delivers exceptional signal integrity. Its compact footprint and flexible connectivity make it ideal for radar systems, electronic warfare, secure communications, and automated test environments.

    Key Features

    • Single PXIe channel up to 40 GHz
    • Ultra-fast frequency switching <10 µs
    • Coherent frequency operation
    • Phase noise: -133 dBc/Hz @1 GHz, 10 kHz offset
    • AM, FM, PM, Sweep & Pulse modulation
    • Pulse modulation with high on/off ratio (~70 dB)
    • PXIe form factor, compact modular design
    • LAN, USB, and SPI connectivity
    • SCPI and VISA programmable control
    • Optional low-power and extended power ranges



    Learn More
  • LSX8081X Single PXIe - 01
    Quick View
    Tabor Electronics Ltd LSX8081X Single PXIe

    The LSX8081X Single PXIe is a compact 8GHz single-channel microwave signal generator designed for high-precision RF and microwave applications. With ultra-fast frequency switching (<10 µs), coherent operation, and versatile AM, FM, PM, Sweep, and Pulse modulation, it provides reliable performance for radar, electronic warfare, secure communications, and automated testing environments.

    Key Features

    • Single PXIe channel up to 8 GHz
    • Ultra-fast frequency switching <10 µs
    • Coherent frequency operation
    • Phase noise: -133 dBc/Hz @1 GHz, 10 kHz offset
    • AM, FM, PM, Sweep & Pulse modulation
    • Pulse modulation with high on/off ratio (~70 dB)
    • Compact modular PXIe form factor
    • LAN, USB, and SPI connectivity
    • SCPI and VISA programmable control
    • Optional low-power and extended power ranges



    Learn More
  • MR9321 Logic Probe

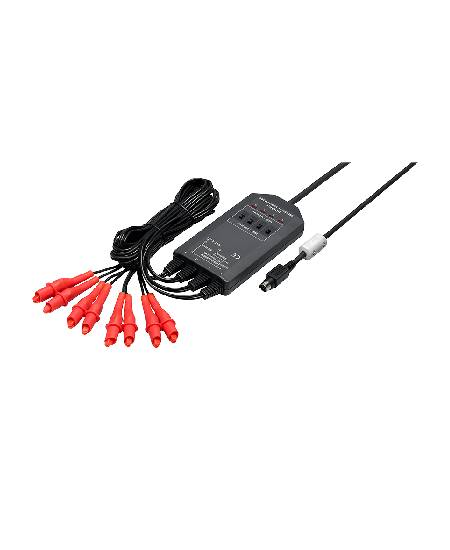

    MR9321 Logic Probe
    Quick View
    HIOKI E E CORPORATION MR9321 Logic Probe

    The MR9321 Logic Probe is a compact, high-speed voltage detection accessory designed for seamless use with Hioki Memory HiCorders. It enables reliable ON and OFF state monitoring of AC and DC signals across multiple channels.

    Key Features

    • Four fully isolated input channels for safe signal monitoring
    • Detects 100 V and 200 V AC or 24 V DC voltage states
    • Supports power line interruption detection
    • High-speed response with 1 ms rise time and 3 ms fall time
    • High and low detection range switching for flexible use
    • Miniature terminal connection for compatible Memory HiCorders



    Learn More

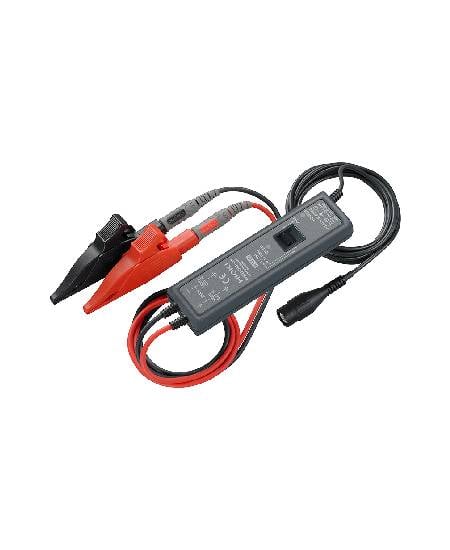

  • P9000 Differential Probe - 01

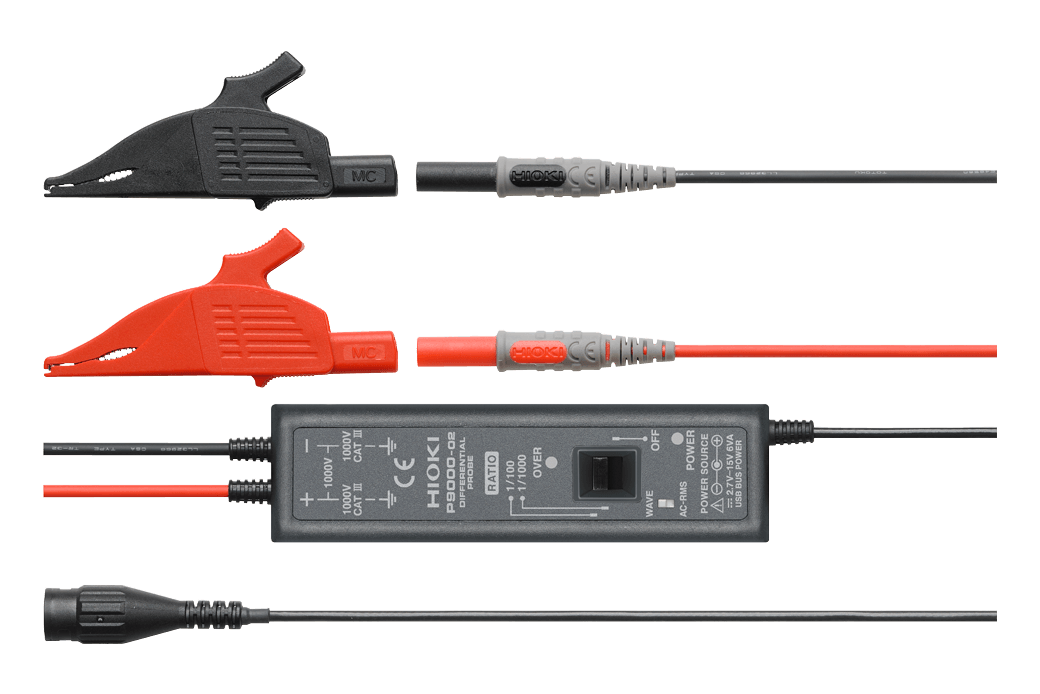

    P9000 Differential Probe - 04
    Quick View
    HIOKI E E CORPORATION P9000 Differential Probe

    The P9000 Differential Probe is a compact, high-accuracy solution designed to safely measure high-voltage signals when used with Hioki Memory HiCorders and HiLoggers.

    Key Features

    • CAT III 1000 V rated for high-voltage environments
    • Supports waveform monitoring and RMS measurement modes
    • Wide frequency response up to 100 kHz
    • Selectable voltage division ratios of 1000:1 and 100:1
    • Compact and lightweight design for field and lab use
    • Ideal for EV batteries, photovoltaic systems, and power lines



    Learn More
  • Pulse Generator MR8791 -01
    Quick View
    HIOKI E E CORPORATION Pulse Generator MR8791

    The Pulse Generator MR8791 is a plug-and-play input module for Hioki Memory HiCorders, designed for precise control simulation testing of electronic control systems.

    Key Features

    • Outputs pulse and pattern waveforms on up to eight channels
    • Supports TTL level and open-collector output signals
    • Designed for control simulation testing of ECUs and control boards
    • Suitable for engine, airbag, brake, and power steering systems
    • Wide frequency range for pulse and logic pattern generation
    • Built-in self-test function for reliable operation
    • Isolated design between unit and output channels
    • Compact form factor for laboratory and test bench integration



    Learn More
  • SM9001 Resistance Electrode
    SM9001 Resistance Electrode
    Quick View
    HIOKI E E CORPORATION SM9001 Resistance Electrode

    The SM9001 Resistance Electrode is a high-performance optional accessory for Hioki Super Megohmmeters, designed to measure the surface and volume resistance of test materials without cutting or altering samples. Ideal for anti-static floorings, molded products, sheets, and films, it provides accurate, non-destructive resistance measurement in compliance with international standards.

    Key Features

    • Measures surface and volume resistance without sample cutting
    • Compliant with JIS C 2170 and IEC 61340-2-3 standards
    • Measurement voltage up to 1,000 V
    • Maximum measurable resistance: 10¹³ Ω
    • Suitable for anti-static floorings, molded products, and films
    • Optional electrode for SM7000 series (requires Z5010 Conversion Adapter)
    • Includes protective stand, counter-electrode, short bar, and carrying case



    Learn More
  • SME-8302 Surface Electrode
    SME-8302 Surface Electrode
    Quick View
    HIOKI E E CORPORATION SME-8302 Surface Electrode

    The SME-8302 Surface Resistance Electrode is designed for accurate surface resistance measurement on curved insulating materials. It enables stable and repeatable testing by lightly pressing rubber electrode tips against uneven or rounded surfaces.

    Key Features

    • Designed for surface resistance measurement of curved samples
    • Ideal for resin, rubber, and molded insulating materials
    • Measures surface resistance up to 10¹¹ Ω
    • Rubber-tipped electrodes ensure stable contact without damaging samples
    • Compact design suitable for small or irregularly shaped objects
    • Simple operation by direct contact with the test surface
    • Compatible with Hioki super megohmmeters
    • Requires Z5010 Conversion Adapter for SM7000 series



    Learn More

Showing 17–32 of 40 results
