ANALOG MΩ HiTESTER IR4017-20

ANALOG MΩ HiTESTER IR4017-20

Single-Range 500V/1000MΩ Analog Insulation Tester

Analog Insulation Tester, Megohmmeter | IR4017-20

• Single range: 500V/1000MΩ
• AC voltage testing



REQUEST A QUOTE
SKU: IR4017-20 Category:



Description

Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4017-20 is a single-range, 500V/1000MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing. Analog MΩ HiTester IR4017-20

Model No. (Order Code)

IR4017-20
CAT III 600 VDROPPROOFGuarantee3yearsCE

Key Features

• Single range testing voltage of 500 V • Test insulation resistance up to 1000 MΩ • Built tough to withstand a 1-meter drop onto a concrete floor • Bright LED luminous scale • Check for live circuits and battery status • Integrated hard case for quick and easy storage without disconnecting the leads

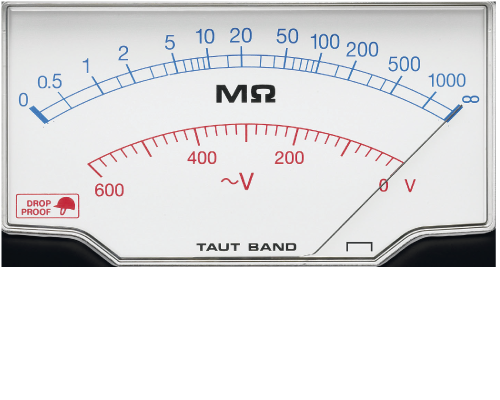

Single 500 V/1000 MΩ range with simple, easy-to-read scale for insulation resistance values

Robust, damage-resistant design

These instruments feature a robust design that can withstand being dropped onto concrete from a height of 1 m. Difficult to damage, this insulation tester is ideal for use in the field.

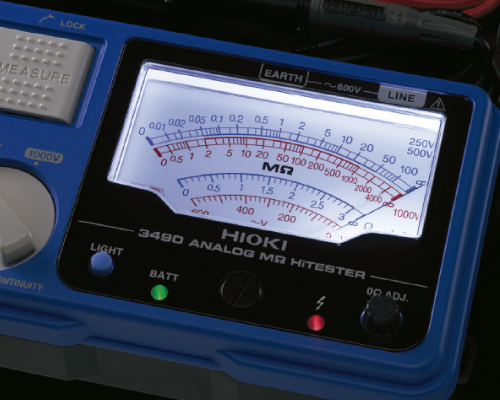

White LED lighting that’s easy to read in dim locations in the field

The scale is lit by a white LED, ensuring that insulation resistance values are easy to read, even when using the instrument in a dim location.

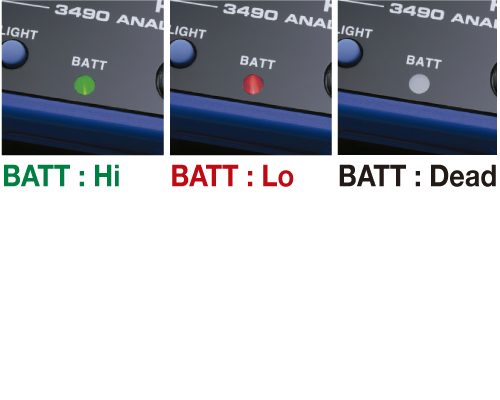

Continuous monitoring of battery life

You can keep track of remaining battery life since it’s shown on the LED, eliminating the need to worry about sudden loss of battery power in the field. Analog MΩ HiTester IR4017-20

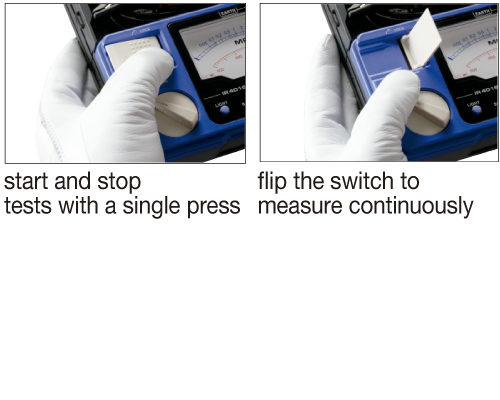

Measurement switch designed for outstanding ease of use

The instrument’s measurement switch can be operated with just the thumb. Press for a single measurement or lift up for continuous measurement of insulation resistance.

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)



Rated output voltage



500 V DC



Effective maximum indicated value



1000 MΩ



Accuracy 1st effective measuring range



±5 % of indicated value
1 to 500 MΩ



Lower limit resistance



0.5 MΩ (measurement resistance value to maintain testing voltage)



Overload protection

600 V AC (10 sec.)


AC voltage measurement



0 to 600 V (50/60 Hz), ±5 % of maximum scale value accuracy,
500 kΩ or more input resistance



Other functions



Bright LED luminous scale, Drop proof (on concrete, 1 m/1 time), Battery check, Live circuit check, Auto discharge



Power supply



LR6 (AA) alkaline batteries ×4, Continuous use: 20 hours (no load)



Dimensions and mass



159 mm (6.26 in) W × 177 mm (6.97 in) H × 53 mm (2.09 in) D, 610 g (21.5 oz), (including battery, excluding test lead)



Accessories

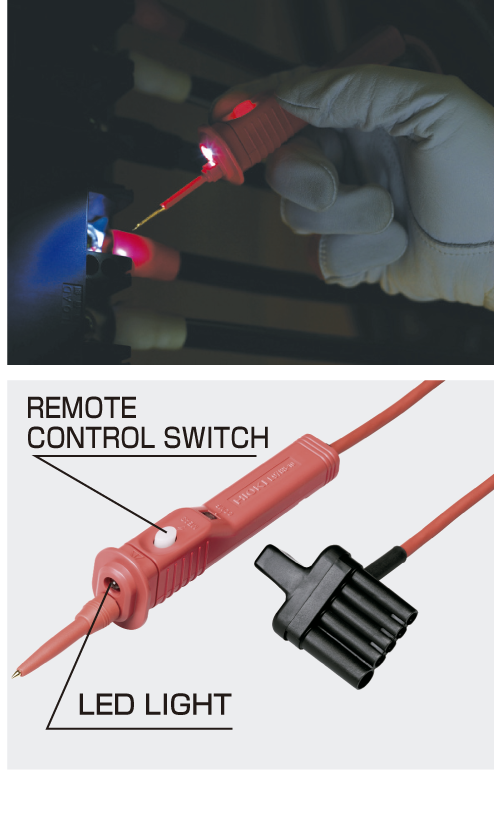

Test Lead L9787 ×1, LR6 (AA) alkaline batteries ×4, Instruction manual ×1, Shoulder strap ×1

Analog MΩ HiTester IR4017-20
